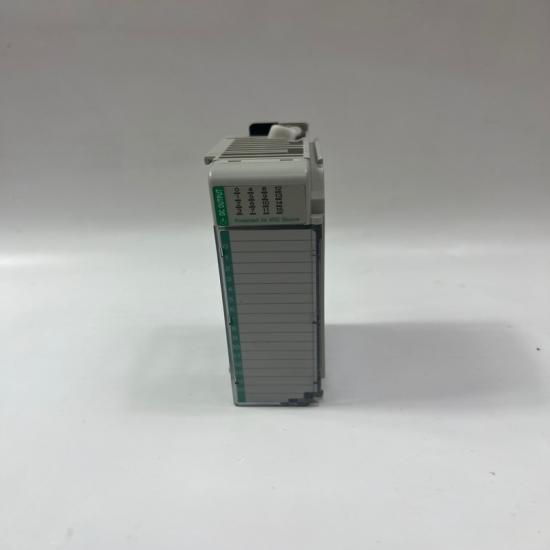

Allen-Bradley 1769-OB16P Compact I/O Digital Output Module

Product Description

The 1769-OB16P is a 16-channel sourcing (PNP) digital output module designed for Allen-Bradley CompactLogix and MicroLogix 1500 control systems. It provides 24V DC sourcing outputs for industrial automation applications, supporting high-speed switching of devices like relays, solenoids, and indicators .

Key Features

High-Speed Switching
- ON-state delay: 0.1 ms / OFF-state delay: 1 ms (@ 60°C, max load 2A) .
- Supports high-frequency switching (≤1 Hz for inductive loads) .
Robust Industrial Design
- Removable terminal block (RTB) for easy wiring .
- DIN rail or panel mounting (compact 35mm width) .
Diagnostics & Protection
- Per-point LED status indicators for troubleshooting .
- Short-circuit and overcurrent protection .
Compatibility
- Works with CompactLogix L3x, MicroLogix 1500, and Compact GuardLogix .
Environmental Adaptability
- Operating temperature: 0°C to +60°C .
- IP20 protection (requires enclosure for harsh environments) .

Technical Specifications

Parameter	Value
Model	1769-OB16P
Output Type	16 sourcing (PNP)
Voltage Range	20.4–26.4V DC
Max Current	0.5A @ 60°C, 2A @ 30°C per point
Leakage Current	≤1 mA (OFF state)
Power Consumption	5.1V @ 160 mA, 2.69W max dissipation
Isolation Voltage	1,500V AC (channel-to-ground)
Dimensions	118 × 35 × 87 mm
Weight	0.18 kg

Applications

Motor Control: Activating contactors and solenoids .
Packaging Machines: Conveyor belt and actuator control .
Process Automation: Valve and relay switching .

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Terminal torque: 0.68 Nm (6 lb-in) .
Maintenance
- Monitor heat dissipation (max 2.69W) .
Configuration
- Program via RSLogix 5000 or Studio 5000 .
