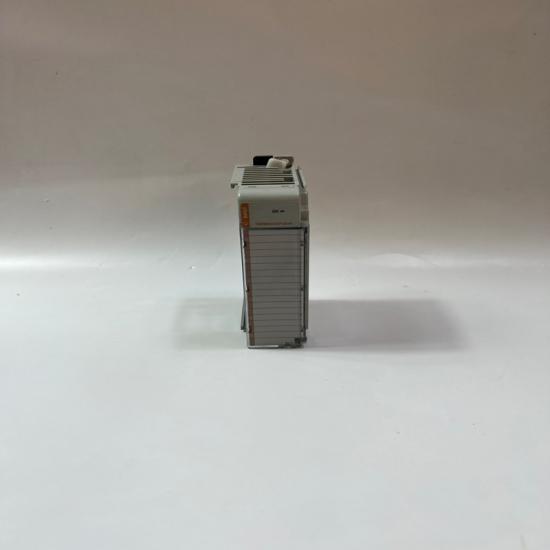

Allen-Bradley 1769-IT6 Compact I/O Module

Allen-Bradley 1769-IT6 Compact I/O Module

Allen-Bradley 1769-IT6 Compact I/O Module

  • Item NO.:

    1769-IT6
  • Payment:

    T/T
  • Price:

    $1000
  • Product Origin:

    Singapore
  • Color:

    NEW
  • Product weight:

    0.18KG
  • Lead Time:

    In stock

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.



Allen-Bradley 1769-IT6 Compact I/O Module

Product Overview

The Allen-Bradley 1769-IT6 is a 6-channel thermocouple (TC) input module designed for CompactLogix™ and MicroLogix™ 1500 control systems. It provides high-precision temperature measurement for industrial automation, supporting J, K, T, E, R, S, B, N, and C-type thermocouples, as well as ±50mV and ±100mV voltage inputs.


Key Features

  1. High-Precision Temperature Measurement

    • 16-bit resolution (0.01°C sensitivity) for accurate readings.

    • Cold-junction compensation (CJC) for improved thermocouple accuracy.

    • Configurable input types (TC/mV) per channel via software.

  2. Robust Industrial Design

    • Channel-to-channel and channel-to-bus isolation (720V DC) for noise immunity.

    • -40°C to +70°C operating temperature for harsh environments.

    • DIN rail or panel mounting for flexible installation.

  3. Diagnostics & Safety

    • Open-circuit detection and over/under-range alarms.

    • LED status indicators per channel for fault monitoring.

  4. Compatibility & Integration

    • Works with CompactLogix 5370, L3x, and MicroLogix 1500 controllers.

    • Supports EtherNet/IP and DeviceNet (via adapters) for distributed I/O systems.


Technical Specifications

Parameter Specification
Model 1769-IT6
Input Channels 6 (isolated)
Thermocouple Types J, K, T, E, R, S, B, N, C
Voltage Inputs ±50mV, ±100mV
Resolution 16-bit (0.01°C)
Isolation 720V DC (channel-to-bus)
Power Supply 5–24V DC (100mA @5V, 45mA @24V)
Operating Temp. -40°C to +70°C
Certifications cULus, CE, GOST, KC

Applications

  • Process control (chemical reactors, furnaces).

  • Energy management (boiler monitoring, HVAC).

  • Machine diagnostics (motor/bearing temperature monitoring).


Installation & Configuration

  • Wiring: Use shielded twisted-pair cables for noise reduction.

  • Software: Configure via RSLogix 5000 or Studio 5000.

  • Calibration: Supports software-based zero/span adjustment.

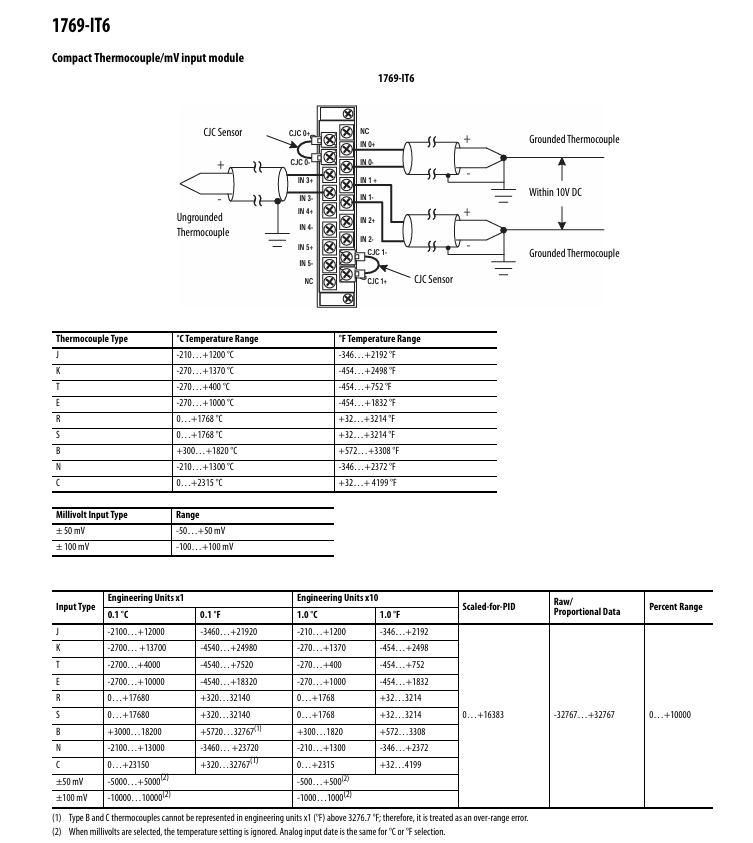

The structure and details of the product:
