Allen-Bradley 1769-IR6 Compact I/O RTD/Resistance Input Module Specifications

Product Overview

The Allen-Bradley 1769-IR6 is a 6-channel RTD/resistance input module designed for CompactLogix™ control systems. It supports high-precision temperature measurement with compatibility for Platinum 385/3916, Nickel 672/618, and Nickel-Iron 518 RTDs, as well as 0–3000 Ohm resistance inputs, making it ideal for industrial process monitoring and control applications .

Key Features

1. High-Precision Measurement

   • Supports multiple RTD types (Platinum 385/3916, Nickel 672/618, Nickel-Iron 518) and 0–3000 Ohm resistance inputs .

   • 16-bit resolution (±0.0015% FS) and ±0.1% accuracy (at 25°C) for reliable data acquisition .

2. Robust Industrial Design

   • Channel-to-bus isolation (720V DC) and 30V AC/DC working voltage for noise immunity in harsh environments .

   • Operating temperature range: -40°C to +70°C, suitable for extreme conditions .

3. Easy Integration & Configuration

   • DIN rail or panel mounting with removable terminal blocks for simplified installation .

   • Compatible with CompactLogix controllers (e.g., 1769-L35CR) and Studio 5000 Logix Designer for programming .

4. Diagnostics & Safety Compliance

   • Status LEDs for real-time monitoring of module health .

   • Certifications: C-TICK, GOST, KC, MARINE .

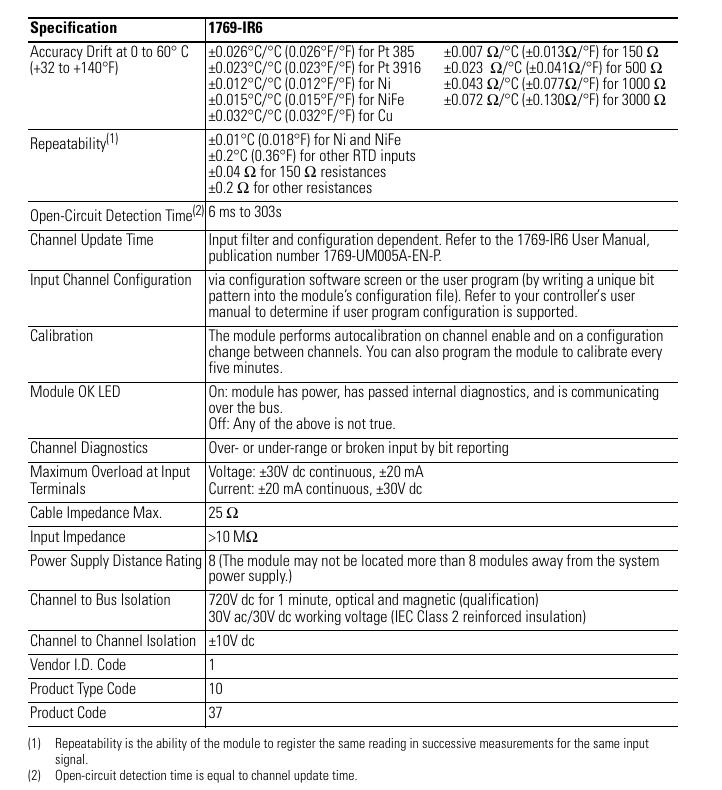

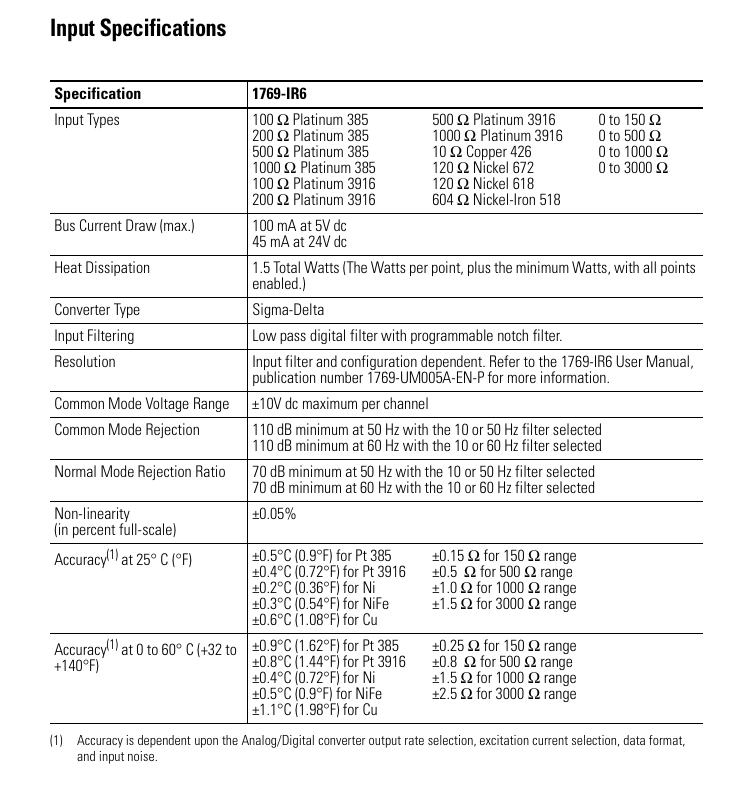

Technical Specifications

Applications

• Temperature monitoring in chemical processing, HVAC, and food production .

• Industrial automation for resistance-based sensor interfacing .

• OEM machinery requiring high-accuracy RTD measurements .

.

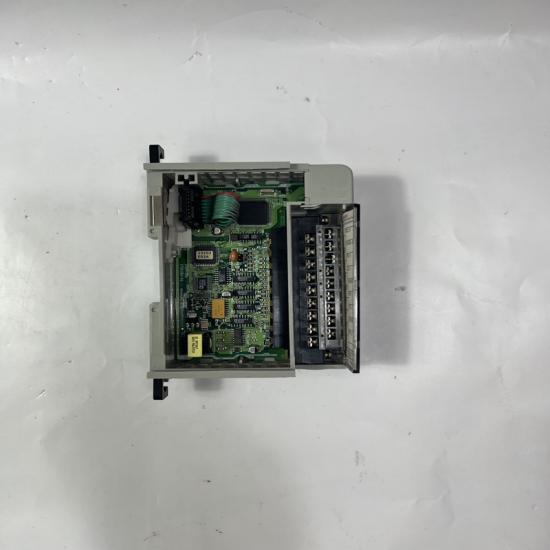

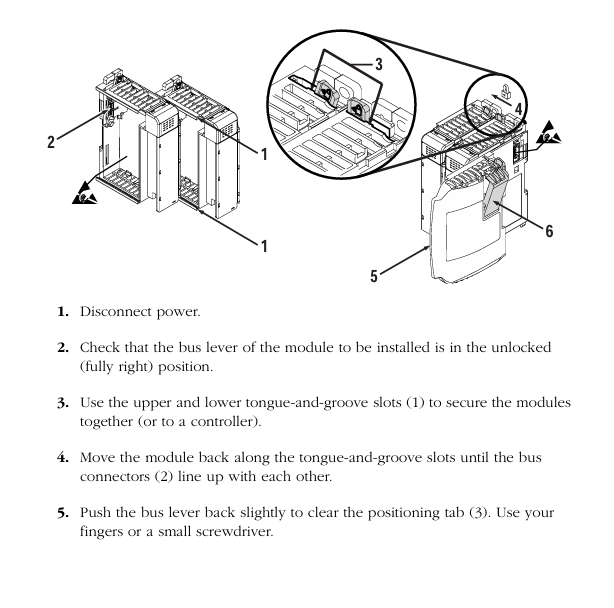

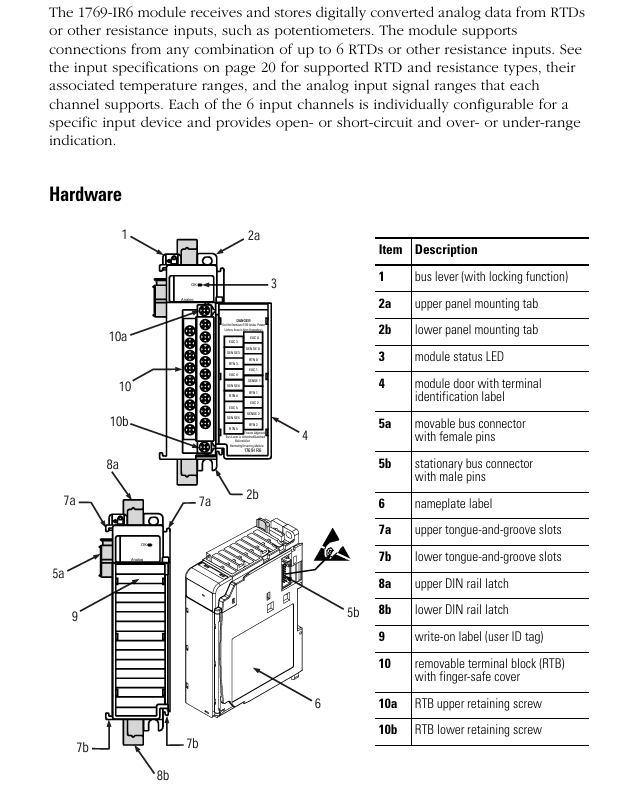

The structure and details of the product：
