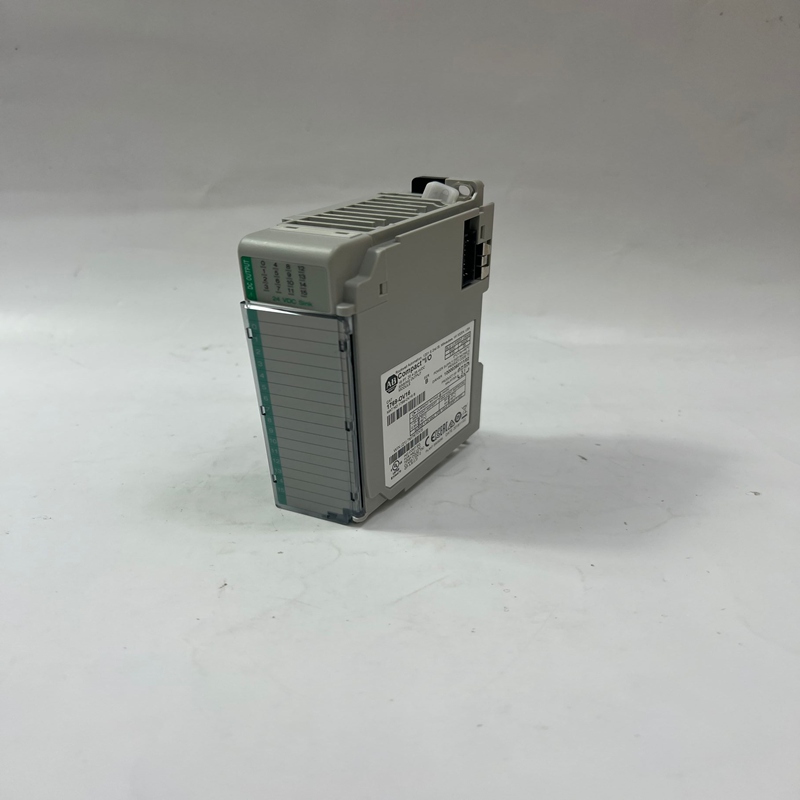

Allen-Bradley 1769-IQ16 Compact I/O Digital Input Module

Product Description

The 1769-IQ16 is a 16-channel digital input module designed for Allen-Bradley CompactLogix and MicroLogix 1500 control systems. It provides 24V DC sinking/sourcing inputs for industrial automation applications, supporting connection to devices like relays, sensors, and switches .

Key Features

Flexible Input Configuration
- 16 sinking/sourcing (NPN/PNP) inputs (24V DC) .
- Two isolated groups (8 channels per group) for independent operation .
High-Speed & Reliable Performance
- Input delay: 8 ms (ON/OFF) .
- Isolation voltage: 1,500V AC (channel-to-ground) .
Compact & Modular Design
- Single-slot width (35mm) for space efficiency .
- DIN rail or panel mounting .
Diagnostics & Protection
- Per-point LED indicators for status monitoring .
- Short-circuit and overvoltage protection .
Compatibility
- Works with CompactLogix L3x, MicroLogix 1500, and Compact GuardLogix .

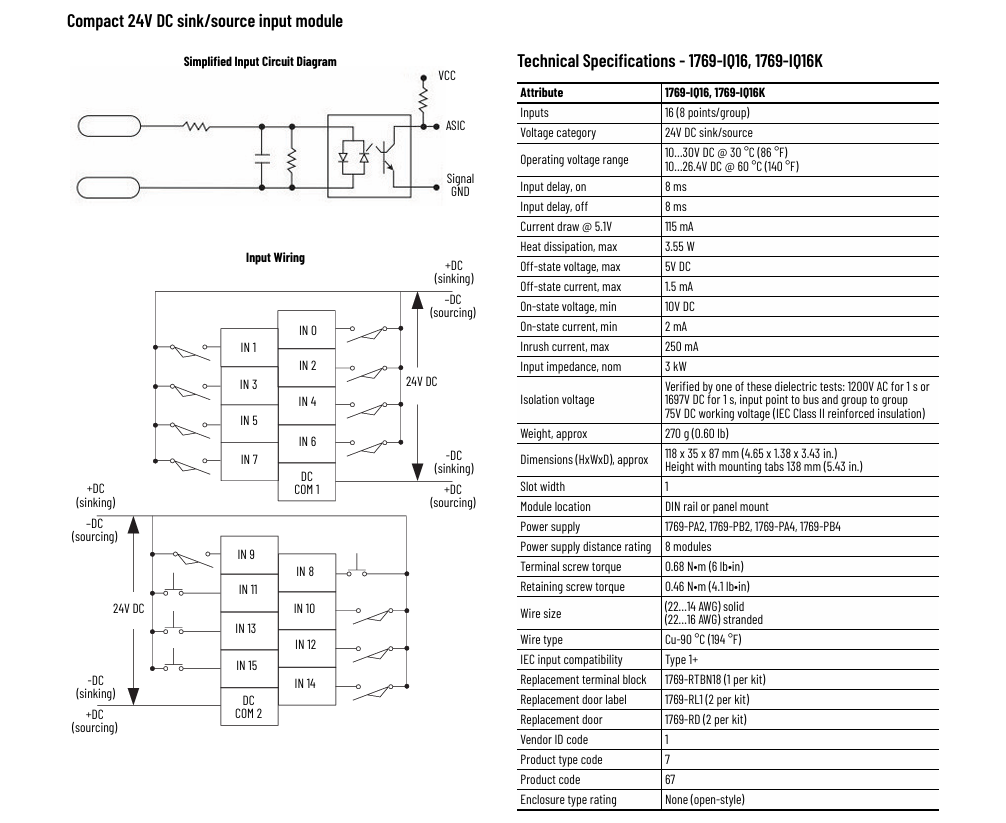

Technical Specifications

Parameter	Value
Model	1769-IQ16
Input Type	16 sinking/sourcing (24V DC)
Voltage Range	10–30V DC
Current Consumption	115 mA @ 5.1V DC
Isolation Voltage	1,500V AC (channel-to-ground)
Operating Temp.	0°C to +60°C
Dimensions	118 × 35 × 87 mm
Weight	0.18 kg

Applications

Machine Control (sensor interfacing, limit switches) .
Packaging Systems (conveyor monitoring) .
Process Automation (valve/solenoid status detection).

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity .
- Terminal torque: 0.68 Nm (6 lb-in) .
Power Supply
- Compatible with 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4 .
Maintenance
- Monitor heat dissipation (max 3.55W) .
