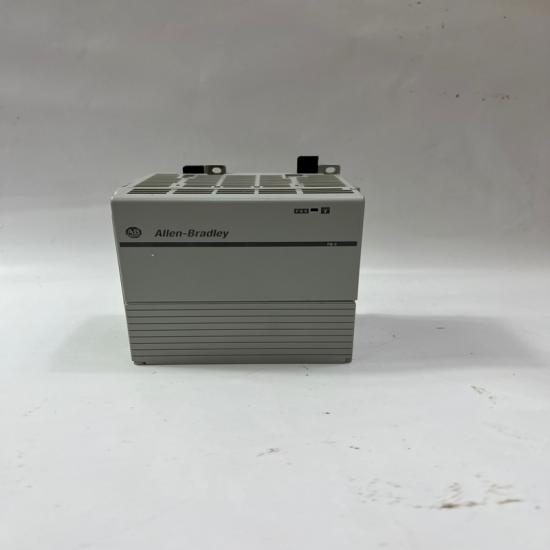

Allen-Bradley 1768-PB3 DC Input Power Supply

Product Description

The 1768-PB3 is a DC input power supply module designed for Allen-Bradley CompactLogix L4x series controllers. It provides 24V DC power to the 1768 backplane, supporting CompactLogix controllers, I/O modules, and communication interfaces .

Key Features

1. Wide Input Voltage Range

   • 16.8–31.2V DC input, compatible with industrial power supplies.

   • Supports dual power input (backplane + external DC) for redundancy .

2. High Efficiency & Reliability

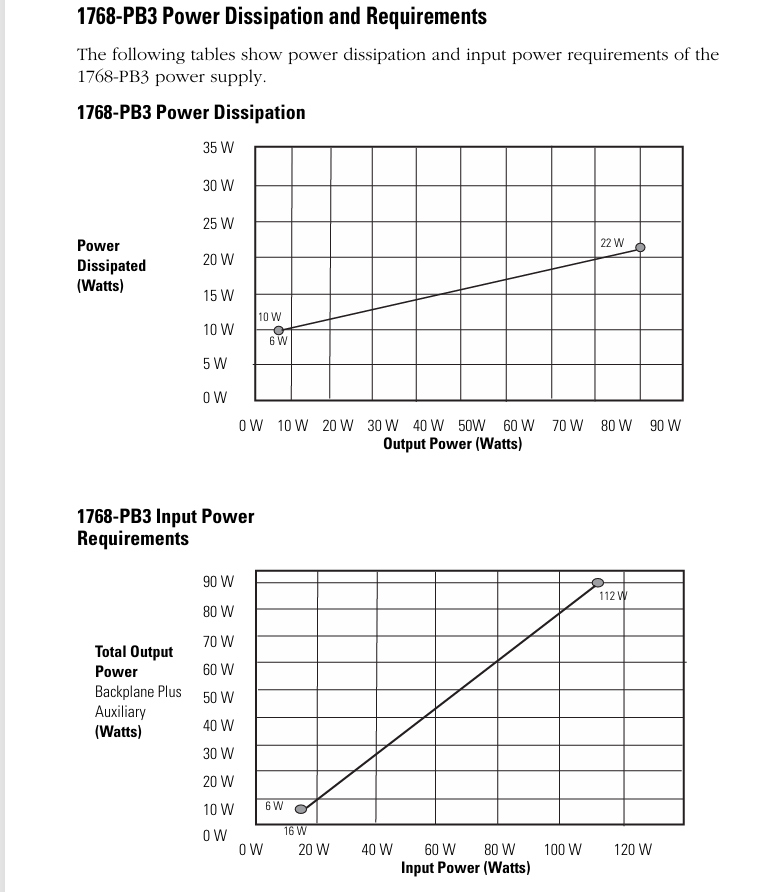

   • 80% efficiency at 24V DC operation .

   • 5ms ride-through time during power interruptions .

3. Compact & Modular Design

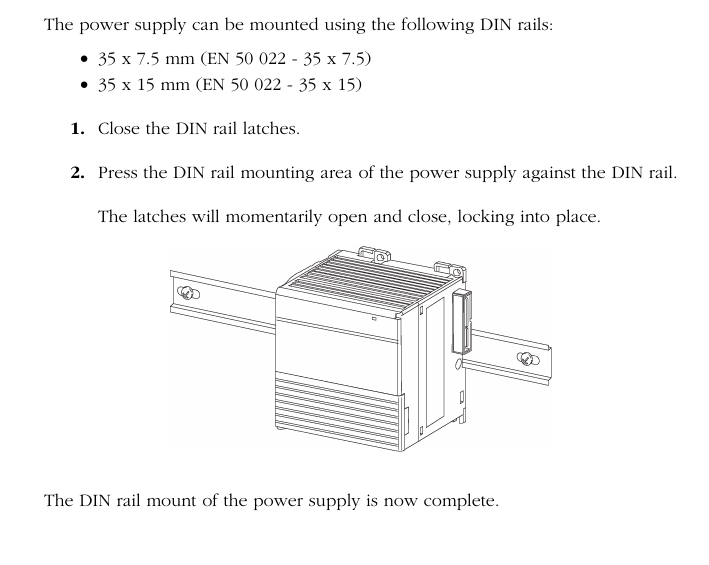

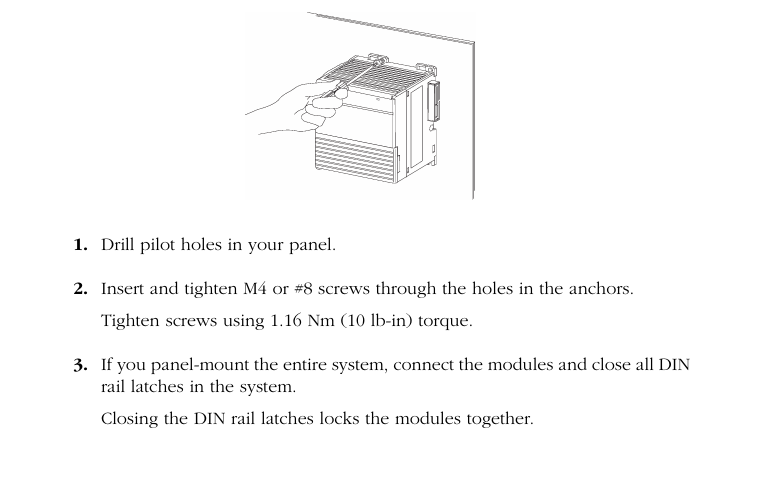

   • DIN rail or panel mounting (dimensions: 5.17 × 5.23 × 4.15 inches) .

   • Hot-swappable (RIUP support) for minimal downtime .

4. Safety & Protection

   • Non-replaceable fuse for overcurrent protection .

   • IP20 open-frame rating (requires enclosure for harsh environments) .

Technical Specifications

Applications

• CompactLogix L4x Controllers (e.g., 1768-L43, 1768-L45) .

• Industrial Automation (pump control, conveyor systems) .

• Safety Systems (compatible with GuardLogix safety controllers) .

Installation & Usage Notes

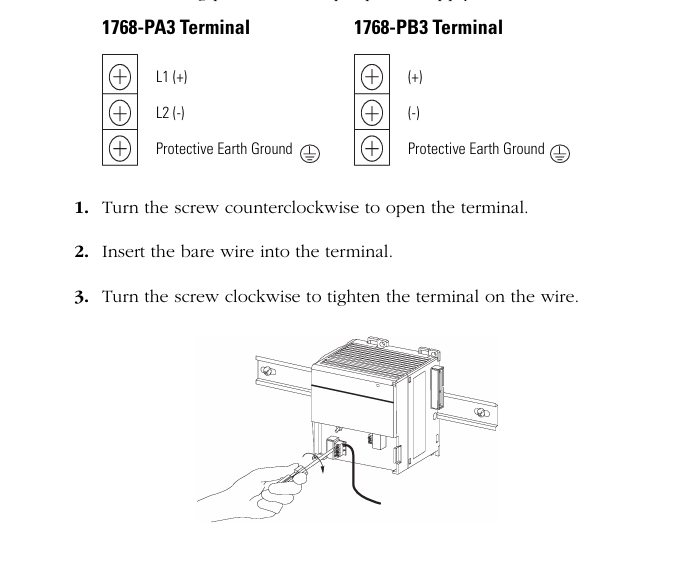

1. Wiring

   • Connect external DC power to the input terminals (16.8–31.2V DC) .

   • Ensure controller is installed first before powering the system .

2. Maintenance

   • Regularly check terminal connections for corrosion .

   • Avoid overloading (max 22W power draw) .

The structure and details of the product：
