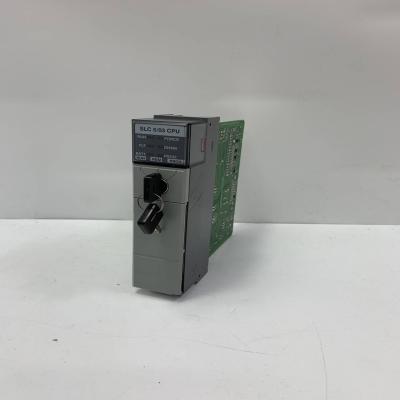

Allen-Bradley 1747-L532 Controller Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

Allen-Bradley 1747-L532 Controller Module

Product Description

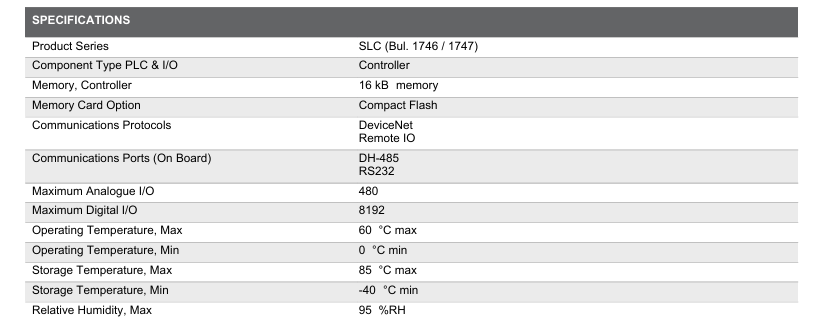

Detailed Parameters

• Processor Performance: 32-bit microprocessor with an instruction execution speed of 0.8μs/boolean instruction, supporting multi-task processing, capable of parallel execution of program logic and communication tasks.
• Memory Configuration: 128KB user program memory (EEPROM), 32KB data memory (RAM), supporting online program modification and storage, with programs retained after power failure.
• I/O Capacity: Maximum expandable to 1024 digital I/O points or 32 analog I/O channels, via 1746 series I/O modules, supporting remote I/O connection (e.g., DH-485 network).
• Communication Interfaces: Built-in DH-485 communication port (speed 1200bps-19.2kbps), RS-232C programming interface; supports DeviceNet, EtherNet/IP, etc., via expansion modules.
• Programming Support: Compatible with RSLogix 500 programming software, supporting ladder diagram (LD), statement list (STL), structured text (ST) programming, integrating debugging and diagnostic tools.
• Operating Environment: Operating temperature 0℃~60℃, storage temperature -40℃~85℃, relative humidity 5%~95% (non-condensing), protection class IP20 (for control cabinet installation).
• Power Requirements: 120V AC/240V AC input, built-in power output 24V DC (2.0A) for external sensors, power consumption ≤30W.
• Dimensions: Width×height×depth approximately 130mm×80mm×160mm, mounted on 1746 series racks, supporting DIN rail or panel installation.
• Certification Standards: UL 508, CSA C22.2 No.14, CE certified, compliant with IEC 61131-2 industrial control equipment standards.

Advantages and Features

• Balanced Performance Configuration: 0.8μs instruction execution speed and 128KB program memory, adapting to small and medium-sized control tasks, ensuring response speed while meeting complex logic programming needs.
• Flexible I/O Expansion: Compatible with the full range of SLC 500 I/O modules (digital, analog, special function modules), allowing step-by-step expansion according to system scale, reducing initial investment costs.
• Multi-Protocol Communication: Supports multiple industrial protocols via built-in DH-485 and expansion modules, enabling seamless communication with HMI, frequency converters, barcode scanners, etc., for data interaction and remote monitoring.
• User-Friendly Programming Environment: RSLogix 500 software features an intuitive interface, supporting program simulation and online editing, simplifying control logic development and enabling quick mastery even for beginners.
• Industrial-Grade Reliability: Wide temperature range and anti-vibration design (5g acceleration, 10-500Hz), adapting to industrial environments with dust and humidity fluctuations, with mean time between failures (MTBF) ≥10⁵ hours.

Application Fields

• Small and Medium Production Line Control: In food packaging and electronic assembly lines, coordinates the operation of conveyors, filling equipment, and labeling machines, realizing automatic start-stop and beat synchronization of production processes through logic control.
• Municipal Public Equipment: Used in water treatment plant pump control and urban street lamp scheduling systems, automatically adjusting equipment operation based on liquid level, time and other parameters, reducing manual intervention costs.
• Material Conveying Systems: Controls the operation logic of warehouse conveyors and elevators, realizing automatic sorting and transfer of materials, supporting data interaction with warehouse management systems (WMS).
• Agricultural Automation: Adapts to temperature control systems in greenhouses, connects temperature sensors, fans, heaters, and automatically adjusts equipment operation according to environmental parameters to ensure a stable growth environment for crops.
• Machine Tool Auxiliary Control: Serves as an auxiliary controller for CNC machine tools, handling tool magazine tool change logic and cooling system control, cooperating with spindle controllers to improve processing efficiency.

Notes

• During installation, ensure the controller and I/O rack are well-grounded (ground resistance ≤4Ω); avoid close installation to strong interference sources such as frequency converters and welders; add a shield if necessary.
• Use Rockwell original 1747-CP3 cable for programming to prevent communication interruption or program download failure caused by non-standard cables.
• When expanding I/O modules, pay attention to the rack power capacity; the total current should not exceed 2.0A (24V DC); use an external independent power supply if exceeded.
• Regularly back up user programs via RSLinx software; it is recommended to check the program version quarterly to avoid program loss due to controller failure.
• Before reusing after long-term shutdown, check whether the power interface is oxidized; measure the input voltage with a multimeter before power-on to confirm it is within the 120V/240V range.

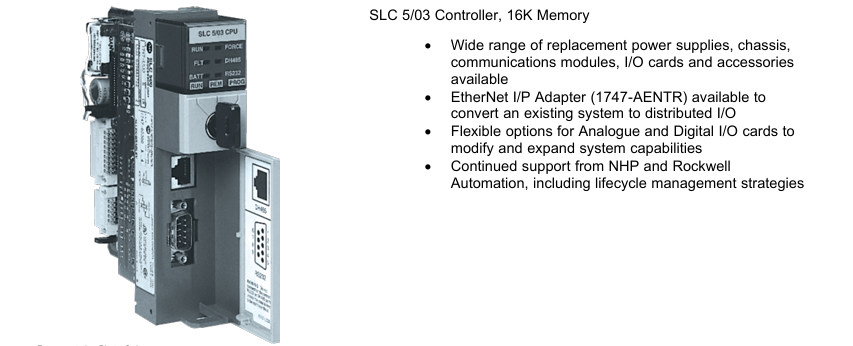

The structure and details of the product：
