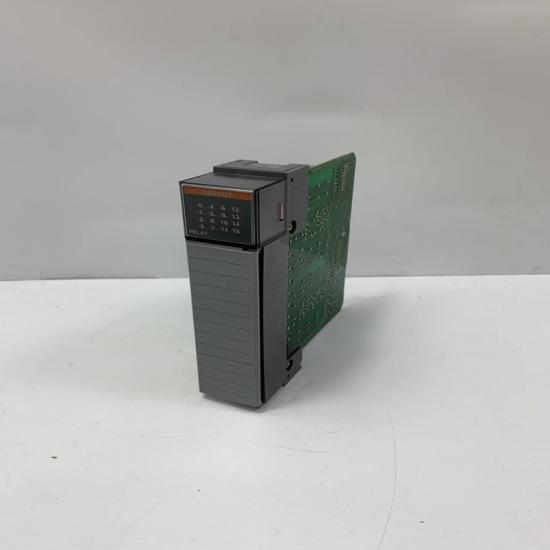

Allen-Bradley 1746-OW16 Discrete Output Module

Product Overview

The Allen-Bradley 1746-OW16 is a relay output module designed for the SLC 500 programmable controller system. It provides 16 discrete output points (2 groups of 8 points with common terminals) with relay contacts suitable for both AC and DC voltage applications .

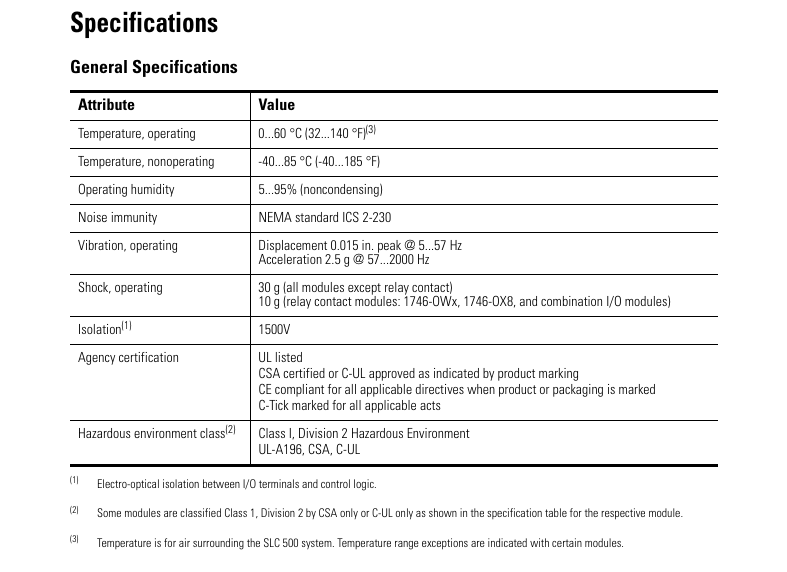

Key Specifications

Electrical Characteristics

• Output Type: Relay (dry contact) outputs

• Voltage Range:

  • 5-125V DC

  • 5-265V AC

• Current Ratings:

  • 120V AC: 15A make/1.5A break

  • 240V AC: 7.5A make/0.75A break

  • 125V DC: 0.22A make/1.2A break

• Continuous Current:

  • 2.5A (AC)

  • 1.0A (125V DC)

  • 2.0A (24V DC)

• Signal Delay: 10ms ON/OFF (max resistive load)

Mechanical Characteristics

• Dimensions: 114.5×99×45mm (varies slightly by source)

• Mounting: SLC 500 chassis

• Terminals: Removable terminal block for easy wiring

Key Features

1. Mixed Voltage Support: Unique ability to handle different voltage types (AC/DC) simultaneously across output groups

2. High Current Capacity: Supports up to 15A make current at 120V AC

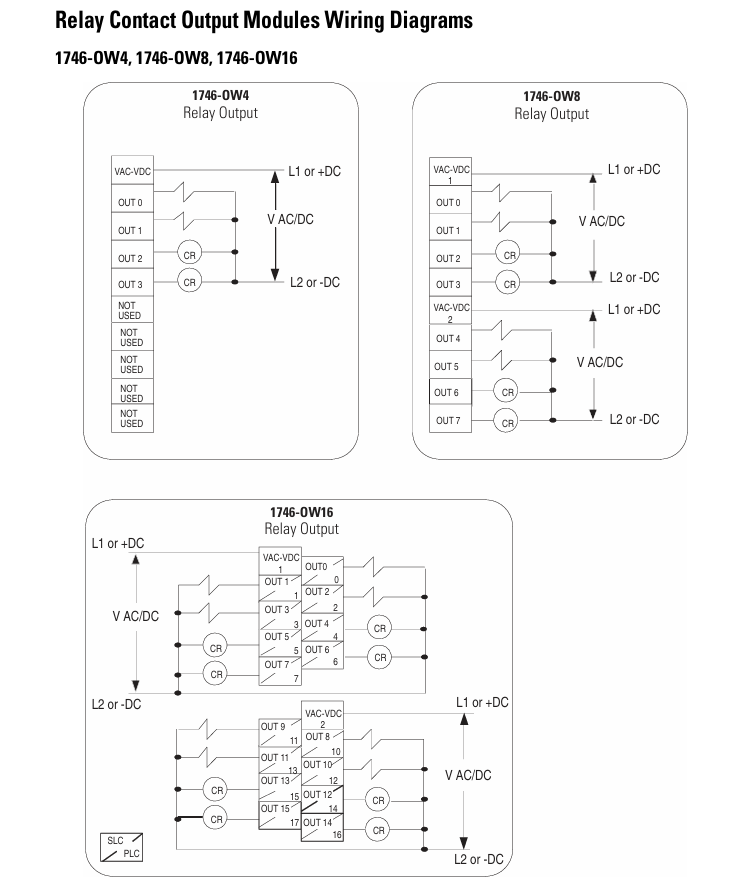

3. Isolated Groups: Two output groups (8 points each) with separate commons for flexible wiring

4. Robust Design: Industrial-grade components with 5.7W maximum heat dissipation

5. Diagnostic Indicators: LED status indicators for each output point

Typical Applications

• Machine control systems

• Material handling equipment

• Packaging machinery

• Process automation

• Industrial HVAC controls

Installation Notes

• Requires SLC 500 chassis (1746-A10, A13, or A17 series)

• Should be installed by qualified personnel

• Avoid exposure to chemicals that may degrade sealing materials

• Recommended to use external surge suppression devices for each channel

Ordering Information

• Manufacturer Part No.: 1746-OW16

• Reference Prices:

  • ¥1,314 (new, China)

  • $99.99 (used, international)

Comparison to Similar Modules

Unlike solid-state output modules, the 1746-OW16's relay contacts provide:

• True electrical isolation

• Mixed voltage capability

• Higher current capacity
  But with:

• Slower switching speed (10ms vs <1ms for solid-state)

• Mechanical wear over time

The structure and details of the product：
