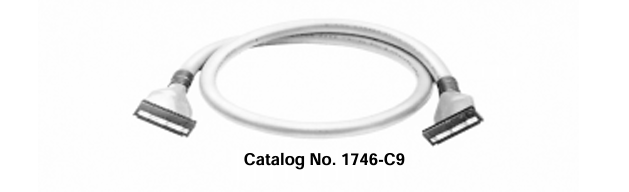

Allen-Bradley 1746-C9 Chassis Interconnect Cable

1. Product Description

The 1746-C9 is a chassis interconnect cable designed for Allen-Bradley SLC 500 systems, specifically for vertical rack connections. It enables seamless communication between 1746-A7/B 7-slot PLC racks and other compatible chassis, ensuring reliable signal transmission in industrial automation setups .

2. Key Features

Vertical Rack Connection – Designed for stacking SLC 500 chassis vertically, optimizing control panel space .
Durable Construction – Features a rigid, non-flexible shrink-wrap to prevent stress during installation .
Standard Length – 1-meter (3.28 ft) cable, ensuring compatibility with most rack configurations .
Secure Termination – Includes W43mm terminals for stable connections .

3. Technical Specifications

Parameter	Specification
Length	1 meter (3.28 ft)
Connector Type	W43mm terminals (0° orientation)
Compatibility	1746-A7/B 7-slot PLC racks
Installation	Vertical rack stacking only

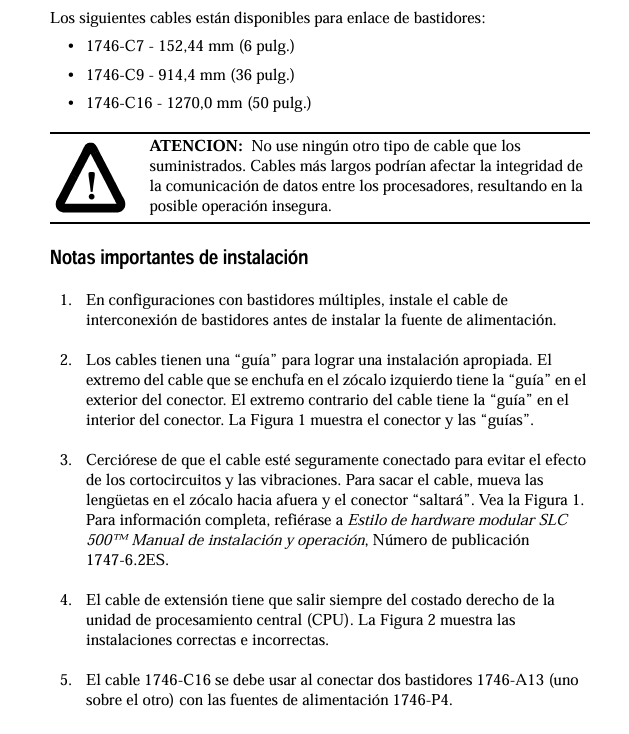

Alternative Cables	1746-C16 (longer vertical), 1746-C7 (horizontal)

4. Applications

Industrial Control Panels – Expands I/O capacity in SLC 500 systems .
Distributed I/O Configurations – Links multiple chassis for up to 30 I/O slots .

5. Precautions

Do Not Substitute – Using non-recommended cables (e.g., generic Ethernet) may degrade signal integrity .
Avoid Horizontal Use – Designed only for vertical connections; use 1746-C7 for horizontal layouts .
