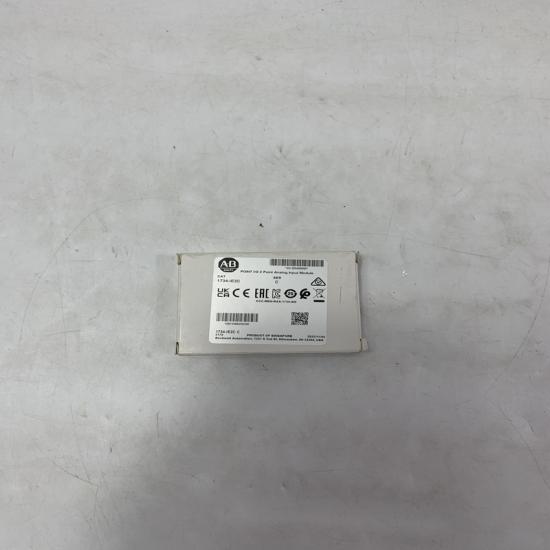

Allen-Bradley 1734-IE2C Analog Input Module

1. Product Description

The 1734-IE2C is a 2-channel analog current input module from Allen-Bradley’s POINT I/O series, designed for industrial automation. It converts 4–20 mA or 0–20 mA analog signals into digital values for PLC processing, supporting ControlNet, DeviceNet, and EtherNet/IP networks .

2. Key Features

Dual-Channel Input – Supports 2 non-isolated single-ended current inputs (4–20 mA or 0–20 mA) with 16-bit resolution .
Wide Voltage Range – Operates with 10–28.8V DC power supply, suitable for industrial environments .
High Accuracy – ±0.1% full-scale accuracy at 25°C (77°F) with 30 ppm/°C drift .
Compact & Flexible Installation – 56 × 12 × 75.5 mm dimensions, supports horizontal or vertical mounting on 35 mm DIN rails .
Diagnostic LEDs – Provides real-time status monitoring for each channel .
Compliance & Safety – Certified for CE, UL, CSA, GOST, and meets EN/IEC 60664-1 for industrial use .

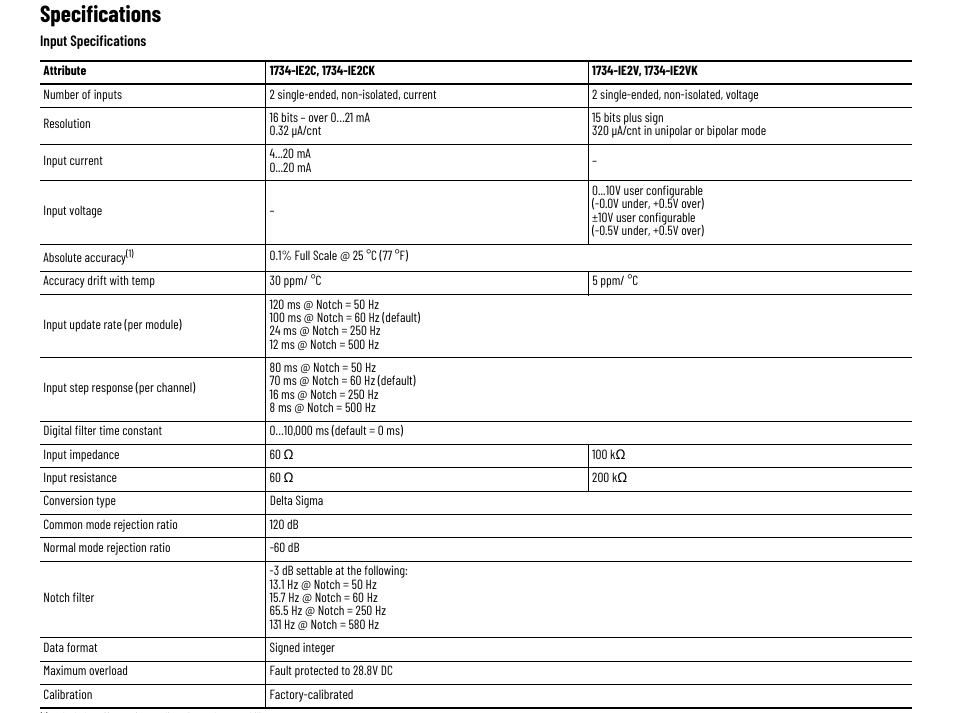

3. Technical Specifications

Parameter	Specification
Input Type	4–20 mA / 0–20 mA
Channels	2 (non-isolated)
Resolution	16-bit (0.32 μA/count)
Power Supply	10–28.8V DC (24V DC nominal)
Isolation Voltage	50V continuous, 2550V DC for 60 sec
Operating Temp.	-20°C to +55°C
Communication	ControlNet, DeviceNet, EtherNet/IP

4. Applications

Process Control – Monitoring flow rates, pressure, and temperature in chemical plants .
Manufacturing Automation – Sensor signal acquisition in assembly lines .
Energy Management – Current measurement in power distribution systems .

5. Installation & Precautions

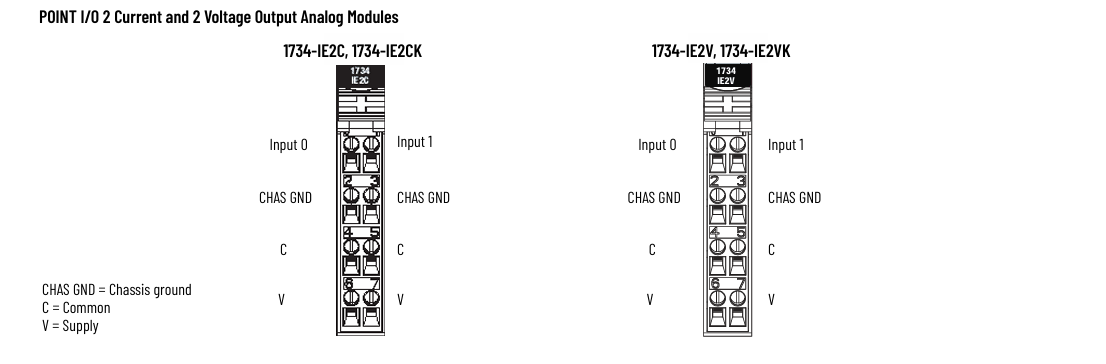

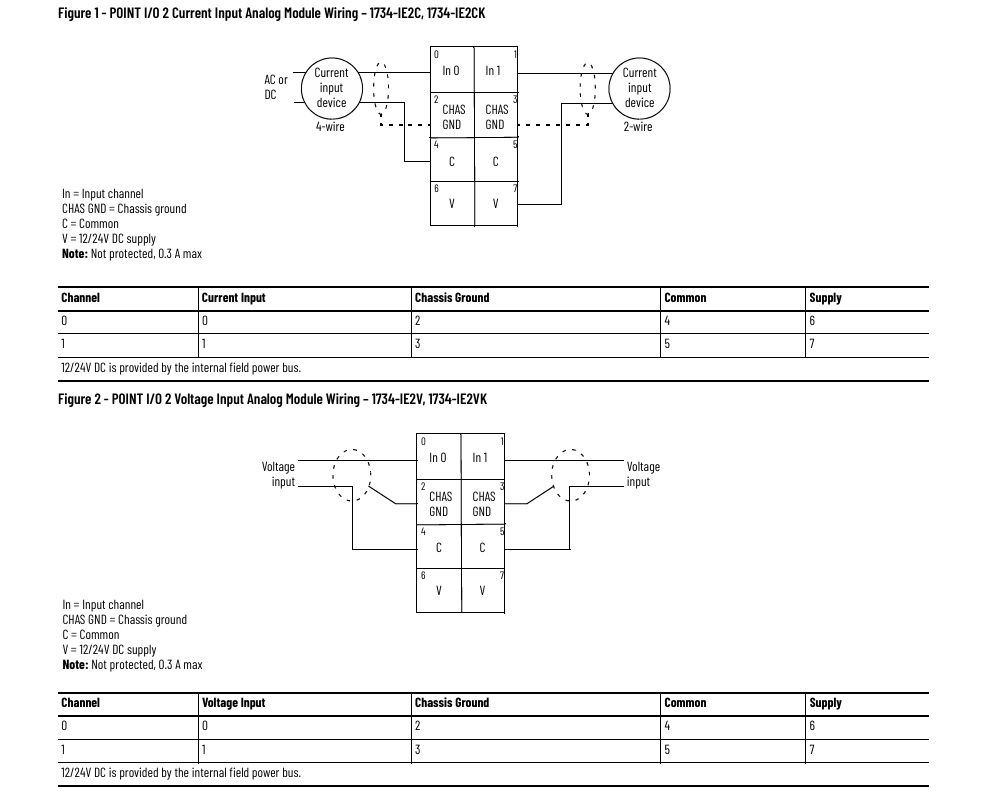

Wiring – Use 22–14 AWG shielded copper wire for signal integrity .
Base Unit Required – Must be installed on compatible terminal bases (1734-TB, 1734-TBS, etc.) .
Environmental Limits – Avoid condensation and excessive dust (IP20 rating) .
