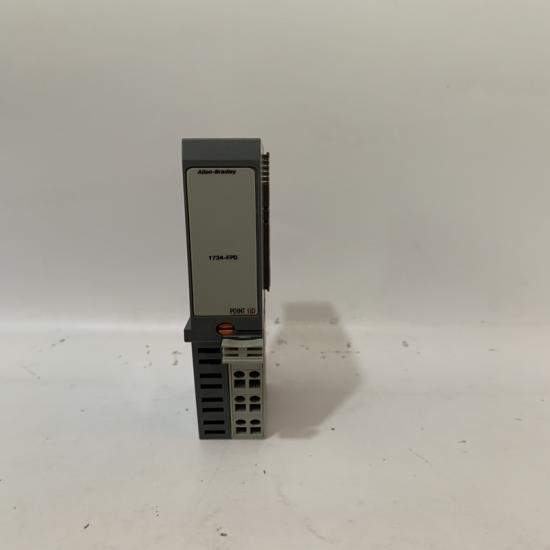

Allen-Bradley 1734-FPD POINT I/O Field Distributor Module

1. Product Description

The 1734-FPD is a field power distributor module designed for Allen-Bradley’s POINT I/O system. It serves as a power segmentation device, allowing users to isolate and distribute different voltage levels within a POINT I/O rack. This module is particularly useful for applications requiring mixed voltage I/O configurations or logical partitioning of power zones in industrial automation systems .

2. Key Features

Power Segmentation – Splits field power distribution between its left and right sides, enabling separate voltage zones (e.g., 24V DC and 120V AC) in the same rack .
Wide Voltage Compatibility – Supports:
- DC Inputs: 10–28.8V DC (12/24V DC nominal).
- AC Inputs: 120/240V AC .
No Backplane Power Consumption – Does not draw power from the POINTBus backplane, preserving system capacity.

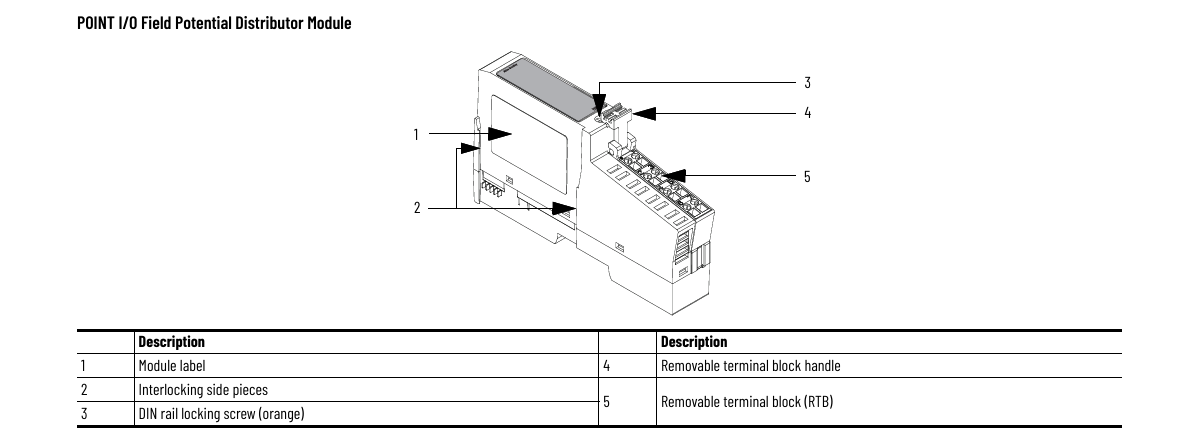

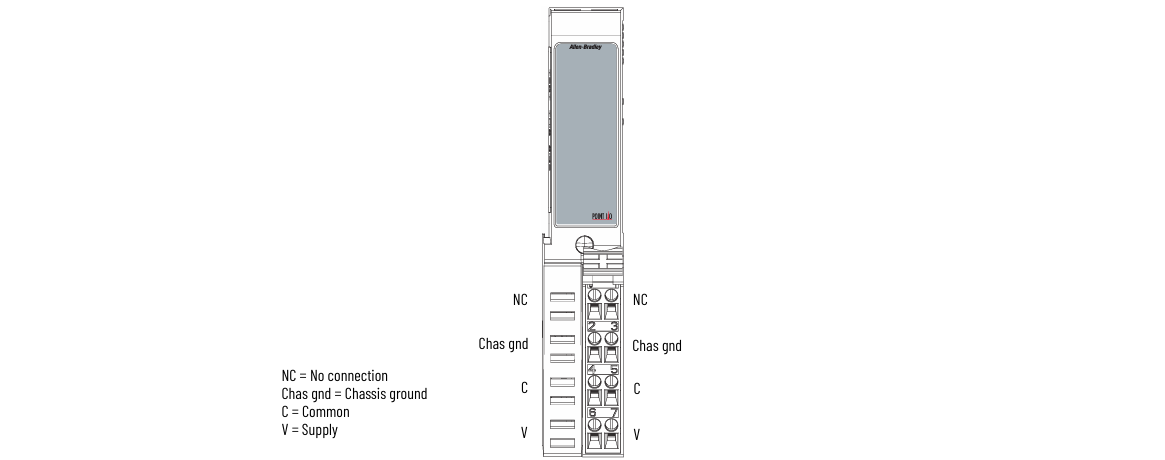

Tool-less Installation – Compatible with DIN rail mounting and features removable terminal blocks (RTB) for easy wiring .
Industrial Durability – Operates in -20°C to +55°C environments with 50V continuous isolation between field wiring and backplane .

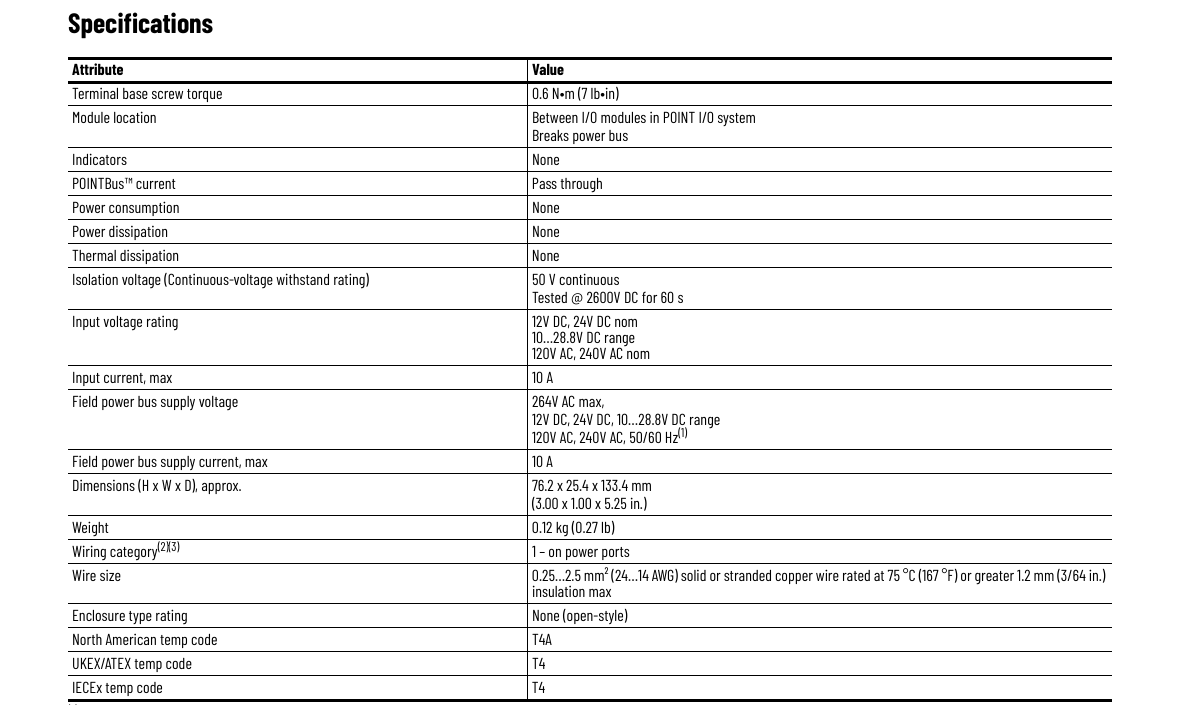

3. Technical Specifications

Parameter	Specification
Input Voltage	10–28.8V DC / 120–240V AC
Max Current	10A (per side)
Isolation Voltage	50V continuous / 250V DC tested
Dimensions	76.2 × 25.4 × 133.4 mm (W×H×D)
Wire Gauge	22–14 AWG (0.25–2.5 mm²)
Certifications	CE, UL, CSA, GOST

4. Applications

Mixed Voltage Systems – Segregates low-voltage (24V DC) and high-voltage (120V AC) I/O modules in the same rack .
Safety Partitioning – Isolates power for safety-critical circuits (e.g., emergency stops) .
Space Optimization – Enables compact I/O layouts by eliminating the need for separate power supplies .

5. Installation & Precautions

Wiring Compliance – Use shielded cables for noise-sensitive applications .
Voltage Matching – Ensure connected I/O modules match the distributor’s voltage range .
Environmental Limits – Avoid condensation or temperatures beyond -20°C to +55°C .
