Allen-Bradley 1732E-16CFGM12QCR

Product Description

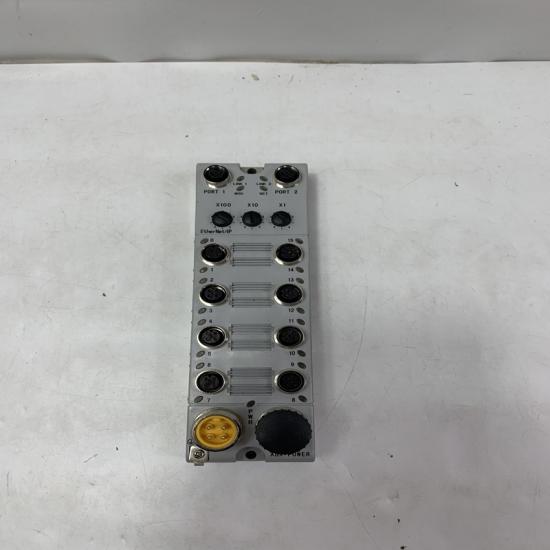

The 1732E-16CFGM12QCR is an ArmorBlock® Guard I/O™ module from Allen-Bradley (Rockwell Automation), designed for industrial automation safety systems. It provides 16 configurable digital I/O points with M12 connectors, supporting EtherNet/IP communication for distributed control applications. This module is part of the 1732E series, which offers IP67-rated protection for harsh environments and is commonly used in machine safety, robotics, and process automation1.

Key Features

Safety Compliance
- PLd (ISO 13849-1) / SIL 3 (IEC 61508) certified for safety-critical applications.
- Supports dual-channel safety inputs for redundancy and fault detection.
Robust Design
- IP67-rated enclosure (dustproof and waterproof), suitable for direct machine mounting.

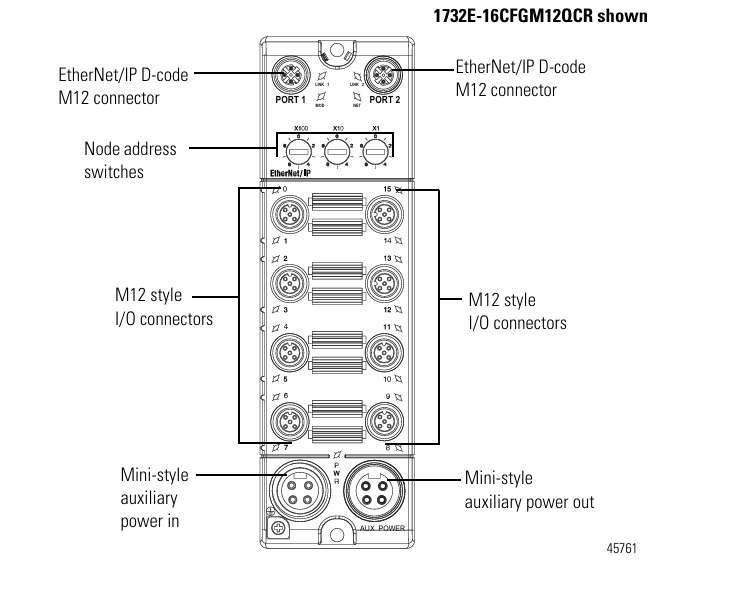

- M12 quick-connect connectors for easy wiring and maintenance.
EtherNet/IP Communication
- Dual-port embedded switch supports Device-Level Ring (DLR) topology for network redundancy.
- QuickConnect feature for fast reconfiguration without power cycling.
Diagnostics & Configuration

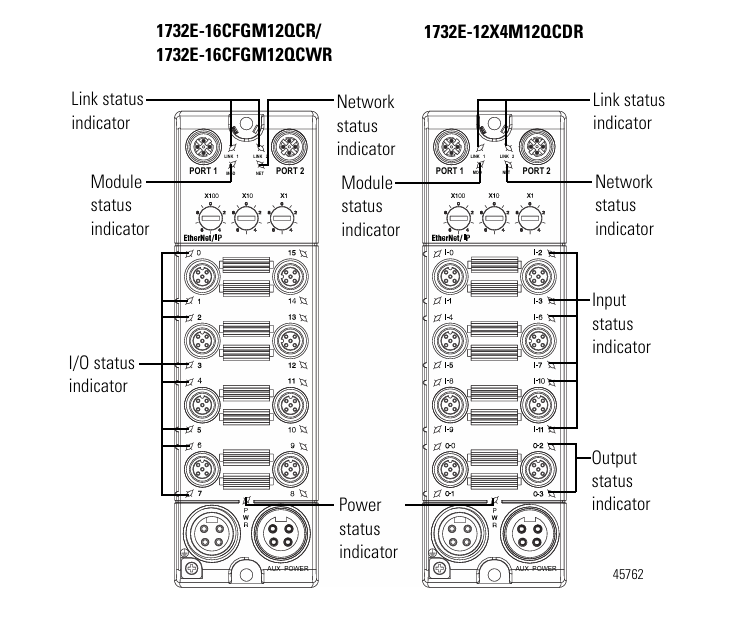

- LED status indicators for power, network, and I/O status.
- Configurable via Studio 5000 Logix Designer® with pre-defined module profiles.
Flexible I/O Configuration
- 16 configurable digital I/O points (can be set as inputs or outputs).
- Supports 24V DC sinking/sourcing operation.

Technical Specifications

Parameter	Value
Model	1732E-16CFGM12QCR
I/O Type	16 configurable digital points
Communication	EtherNet/IP (dual-port)
Input Voltage	24V DC (17-30V range)
Protection Rating	IP67 / NEMA 4X
Operating Temp.	-25°C to +60°C
Housing Material	Polycarbonate + nickel-plated aluminum
Connector Type	M12 (quick-disconnect)
Certifications	CE, UL, SIL 3, PLd

Applications

Machine Safety Systems (emergency stops, light curtains).
Robotic Workcells (end-of-arm tooling, safety interlocks).
Automotive & Material Handling (conveyors, welding applications).
Process Automation (oil & gas, chemical plants).

Installation & Usage Notes

Wiring
- Use shielded cables for noise immunity in high-EMI environments.
- Ensure proper grounding to prevent signal interference.
Network Configuration
- Set IP address via rotary switches or DHCP.
- Enable DLR topology for redundant network paths.
Maintenance
- Regularly inspect connector seals for wear or damage.
- Check LED indicators for fault diagnostics.
