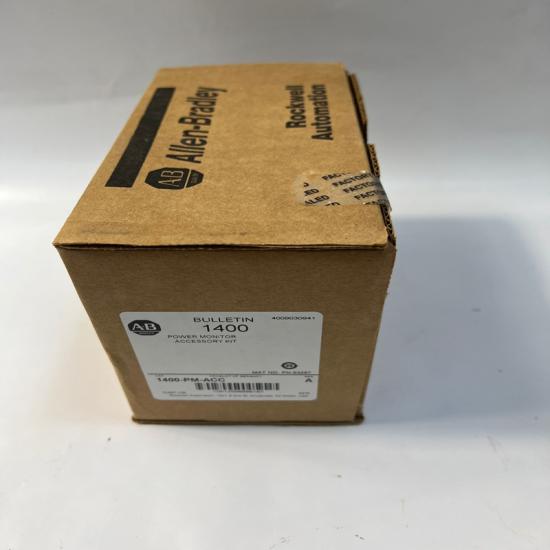

Allen-Bradley 1400-PM-ACC Powermonitor Protection Connection Kit

The Allen - Bradley 1400 - PM - ACC is a protective connection kit specifically designed for PowerMonitor devices, produced by Allen - Bradley, a well - known brand under Rockwell Automation. This kit plays a crucial role in industrial power monitoring and control systems, aiming to ensure safe and reliable electrical connections. It is widely used in various industrial facilities, commercial buildings, data centers, and other places, providing strong support for the stable operation of power monitoring systems and accurate data collection.

Product Specifications

Series Affiliation and Purpose：As an important member of the power monitoring accessory product series, the 1400 - PM - ACC is optimized for PowerMonitor devices. It can seamlessly adapt to products such as the PowerMonitor 5000 series, ensuring efficient cooperation between devices and enabling accurate monitoring and analysis of power parameters.

Kit Composition：

Shorting Terminal Block：Equipped with an 8 - pole shorting terminal block for current transformer (CT) wiring. When maintaining connected equipment (such as the PowerMonitor 5000 unit), work can be carried out safely without de - energizing the power system, greatly improving the convenience and safety of maintenance.

Fuses and Holders：Includes 3 fuses with a rating of 10 amperes and their matching fuse holders for the protection of the voltage input of the PowerMonitor device, and 1 fuse with a rating of 1 ampere and its fuse holder for the protection of the incoming control voltage of the product. These fuses can quickly cut off the circuit when abnormal situations such as overload and short - circuit occur in the circuit, effectively protecting the device from damage and extending the service life of the device.

Electrical Specifications：Suitable for a 600V voltage environment, it has good electrical compatibility and can operate stably in common industrial power environments, meeting the needs of different power monitoring scenarios.

Standard Certifications：Complies with international standards such as C - tick and KC. It is manufactured in strict accordance with international electrical safety and quality specifications. The product quality and safety have been widely recognized and can be safely applied to engineering projects around the world.

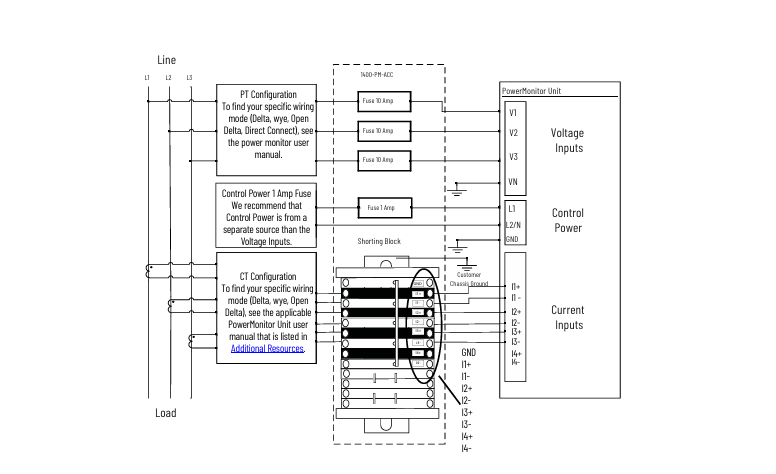

Installation and Wiring：It is recommended to use wires of 2.5mm² (14 AWG) or 3.3mm² (12 AWG, maximum) to connect the PowerMonitor 5000 unit and the shorting terminal block. Between the shorting terminal block and the current transformer (CT), select wires of 2.5mm² (14 AWG) or a larger size according to the circuit length to ensure that the wiring burden does not exceed the CT burden rating and guarantee system accuracy. Ring lugs are recommended for CT secondary connections. Before crimping the ring lugs, pass the wire through the current sensing opening of the PowerMonitor 5000 unit from the shorting terminal block.
The structure and details of the product：
