ABB YT223001-AEYXU Intelligent Valve Positioner

1. Key Parameters

• Product Model: YT223001-AEYXU
• Order Code Reference: Typically paired with ABB valve control kits (e.g., 3HAC031006-001, including mounting hardware and calibration tools) for procurement consistency
• Product Series: ABB Intelligent Pneumatic Valve Positioners for Linear/Rotary Control Valves
• Core Function: Converts control signals to pneumatic output for valve positioning; provides real-time valve position feedback; enables remote configuration and diagnostics; compensates for friction/backlash in valve actuators
• Control & Signal Specifications:

  Parameter	Details	Performance Metrics
  Input Signals	- Analog: 4~20mA DC (control setpoint, 2-wire) - Digital: HART 7 (for configuration/diagnostics, superimposed on 4~20mA)	Input Impedance: 250Ω (for 4~20mA); HART baud rate: 1200 bps
  Output Signals	- Pneumatic: 0.2~1.0 bar (3~15 psi) - Position Feedback: 4~20mA DC (2-wire, proportional to valve position)	Output Accuracy: ±0.5% of full scale; Feedback Accuracy: ±0.2% FS
  Positioning Performance	- Linear Valves: Stroke range 6~150mm - Rotary Valves: Rotation range 0~90° (standard); 0~180° (configurable)	Positioning Accuracy: ±0.5% of span; Response Time: <1.5s (for 90% step change)
  Actuator Compatibility	Pneumatic spring-return or double-acting actuators (air consumption: ≤150 Nl/h at steady state)	Max Actuator Volume: 5000 cm³ (for rotary); 3000 cm³ (for linear)

• Electrical & Pneumatic Specifications:
  • Power Supply: 12~30V DC (via 4~20mA loop; typical 24V DC)
  • Power Consumption: ≤2.5W (at 24V DC)
  • Air Supply: 1.4~7 bar (20~100 psi) clean, dry air (ISO 8573-1: Class 4.4.3)
  • Air Connection: 1/4" NPT or G 1/4 (inlet); 1/4" NPT or G 1/4 (output to actuator)
  • Isolation: 2kVrms (between electrical circuit and pneumatic housing)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); ESD: ±8kV (contact), ±15kV (air)
• Mechanical Specifications:
  • Housing Material: Aluminum alloy (epoxy coating); stainless steel hardware (316 grade)
  • Dimensions (W×H×D): 150mm × 200mm × 120mm (excluding mounting bracket)
  • Mounting: Directly on valve actuator (ISO 5211 mounting pattern; 4-hole flange)
  • Weight: Approximately 1.8kg
  • Protection Rating: IP66/IP67 (dust-tight, waterproof against high-pressure water jets and temporary immersion)
  • Display & Indicators:
    • LCD display (2-line, backlit) for position, setpoint, and fault codes
    • Status LED: Green (normal operation); Red (fault); Blinking Green (calibration in progress)
• Environmental Ratings:
  • Operating Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Storage Temperature Range: -50℃~+90℃ (-58℉~194℉)
  • Humidity Tolerance: 0~100% RH (including condensing; suitable for humid process areas)
  • Vibration Resistance: 10~2000Hz, 2g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains calibration)
  • Corrosion Resistance: ISO 9227: 500 hours salt spray test (coating intact, no functional failure)
• Compliance Standards: IEC 61508 (SIL 2), IEC 61010-1 (electrical safety), ANSI/ISA-75.25.01 (valve positioners), CE, ATEX (Ex d IIC T6 for hazardous areas), RoHS

2. Key Features

• High-Precision Positioning: ±0.5% span accuracy and <1.5s response time ensure precise valve control—critical for processes requiring tight tolerance (e.g., chemical dosing, pressure regulation in refineries) where flow variations directly impact product quality or safety.
• HART 7 Communication: Integrated HART 7 protocol enables remote configuration, calibration, and diagnostics via ABB 800xA DCS or AC500 PLCs—technicians can adjust parameters (e.g., deadband, gain) without on-site visits, reducing maintenance downtime.
• Dual Compatibility: Supports both linear (6~150mm stroke) and rotary (0~90°/180°) control valves, as well as spring-return/double-acting actuators—eliminates the need for separate positioners for different valve types, simplifying inventory and spares management.
• Extreme Environment Durability: IP66/IP67 protection, -40℃~+85℃ operating temperature range, and 500-hour salt spray resistance withstand harsh conditions (e.g., offshore platforms, chemical plants with corrosive fumes, arctic oil fields)—ensures reliable operation in 99% of industrial process environments.
• Adaptive Control Algorithm: Built-in adaptive tuning compensates for valve friction, actuator wear, and process pressure fluctuations—maintains positioning accuracy over the valve’s service life (≥10 years), reducing the need for frequent recalibration.
• Safety Compliance (SIL 2): Meets IEC 61508 SIL 2 safety standards, making it suitable for safety-instrumented systems (SIS) in critical processes (e.g., reactor pressure control, emergency shutdown valves)—ensures safe failure rates (<100 FIT) for risk mitigation.
• Energy Efficiency: Low air consumption (≤150 Nl/h at steady state) reduces compressed air costs by 30% compared to conventional positioners—significant for plants with thousands of control valves (e.g., large refineries, water treatment facilities).

3. Application Fields

• Process Industry Valve Control: Primary application—precision control for process valves:
  • Oil & Gas Production: Regulates flow control valves in crude oil pipelines; HART communication enables remote monitoring of valve position, while -40℃~+85℃ temperature range adapts to desert and arctic pipeline environments.
  • Chemical & Petrochemical Plants: Controls globe valves in reactor feed lines; SIL 2 compliance ensures safe operation in hazardous chemical processes, and adaptive algorithm compensates for valve wear in abrasive slurry applications.
• Power Generation: Supports critical valve control in power plants:
  • Thermal Power Plants: Regulates steam control valves in boiler systems; high positioning accuracy (±0.5%) maintains stable steam flow, optimizing turbine efficiency and reducing fuel consumption.
  • Nuclear Power Auxiliaries: Controls isolation valves in secondary cooling loops; IP67 protection resists moisture, and stainless steel hardware prevents corrosion in water/steam environments.
• Water & Wastewater Treatment: Enables reliable flow control:
  • Municipal Water Treatment: Regulates butterfly valves in filtration systems; low air consumption reduces operational costs, while 0~100% RH tolerance withstands humid treatment plant environments.
  • Industrial Wastewater: Controls diaphragm valves in chemical neutralization tanks; corrosion resistance (salt spray tested) withstands aggressive wastewater, ensuring long service life.
• Food & Pharmaceutical Manufacturing: Complies with hygiene and precision requirements:
  • Pharmaceutical Production: Regulates sanitary ball valves in drug formulation lines; smooth aluminum housing (easy to clean) meets FDA hygiene standards, while precise positioning ensures accurate ingredient dosing.
  • Food Processing: Controls pinch valves in syrup/beverage lines; HART diagnostics enable predictive maintenance, avoiding unplanned shutdowns in 24/7 production facilities.

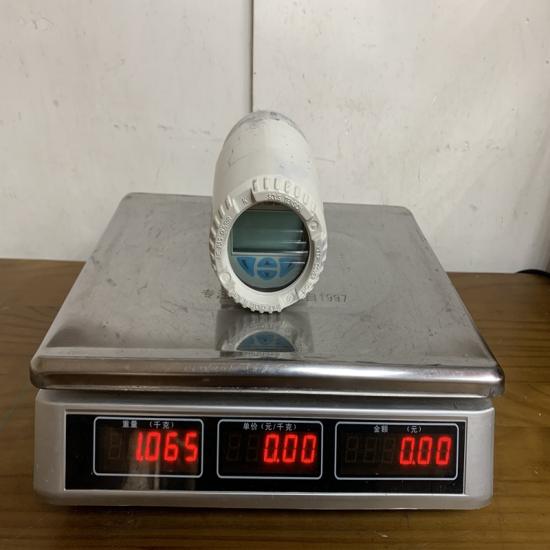

The structure and details of the product：
