ABB PG6310 DC Trigger Control Board

1. Key Parameters

• Product Model: PG6310
• Order Code Reference: Typically paired with ABB DC drive accessory kits (e.g., 3ABD00018042 for DCS500, 3ABD00018055 for DCS600) for procurement consistency
• Product Series: ABB DC Drive Thyristor Trigger Control Boards
• Core Function: Generates precise firing pulses for thyristor modules in DC drive armature/field circuits; regulates DC output voltage/current for DC motor control; conditions control signals (e.g., speed reference, current feedback); provides fault detection for trigger system anomalies
• Electrical & Trigger Specifications:

  Parameter	Details	Key Performance Notes
  Trigger Outputs	6 channels (for 3-phase full-wave thyristor bridges: 3 armature + 3 field)	Isolated outputs; compatible with 50A~500A SCR modules
  Firing Pulse Parameters	Pulse width: 100μs~1ms (configurable); Amplitude: 15V DC; Current: 2A (peak)	Ensures reliable SCR turn-on even at low anode voltages
  Trigger Accuracy	±0.5° (conduction angle deviation at 50Hz/60Hz)	Maintains stable DC motor speed (±0.1% variation)
  Control Inputs	- Analog Reference: 1 channel (4~20mA DC, speed/torque setpoint) - Current Feedback: 2 channels (4~20mA DC, armature + field current) - Digital Status Inputs: 4 channels (24V DC, dry contact: start/stop, enable)	All inputs with RC filtering to suppress noise
  Feedback Outputs	2 channels (4~20mA DC: actual trigger angle, SCR health status)	For remote monitoring via PLC/DCS

• Communication & Electrical Safety:
  • Built-in Protocol: Modbus RTU (RS485 port; baud rate: 9600~115200 bps; parity: None/Even/Odd)
  • Controller Compatibility: ABB DCS500/DCS600 DC drives, ABB AC500 PLCs (for remote configuration)
  • Isolation Level: 2.5kVrms (between trigger outputs, control inputs, and power supply)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); ESD Protection: ±8kV (contact), ±15kV (air); Surge Protection: ±2kV (contact discharge)
  • Power Supply: 24V DC (nominal); 18~30V DC (wide input range); Typical Current: 0.6A; Max Current: 1.0A; Power Consumption: ≤12W
• Mechanical Specifications:
  • Housing Type: Flame-retardant polyamide (UL94 V-0); DIN rail-mountable (35mm standard rail, TS 35/7.5)
  • Dimensions (W×H×D): 40mm × 130mm × 90mm (compact design for DC drive control cabinets)
  • Mounting: DIN rail-mounted (snap-on installation; no additional tools)
  • Weight: Approximately 280g
  • LED Indicators (front panel):
    • Power (PWR): Green (board powered on); Red (power fault/undervoltage)
    • Trigger Status (TRIG): Green (normal firing); Blinking Green (trigger angle >80°); Red (trigger fault)
    • SCR Health (SCR): Green (SCRs conducting normally); Red (SCR open/short-circuit)
    • Communication (COM): Green (Modbus normal); Blinking Green (data transmission); Red (communication fault)
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+60℃ (14℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃; suitable for damp industrial settings)
  • Vibration Resistance: 10~500Hz, 1.5g acceleration (IEC 60068-2-6; no solder joint failure)
  • Shock Resistance: 20g acceleration (11ms duration, IEC 60068-2-27; maintains trigger accuracy)
• Compliance Standards: IEC 61131-2 (industrial control equipment), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS, IEC 60747-6 (semiconductor devices for power electronics)

2. Key Features

• ABB DC Drive Exclusivity: Custom-engineered for ABB DCS500/DCS600 DC drives—ensures plug-and-play compatibility with the drive’s thyristor power modules and control system; eliminates trigger timing mismatches (a common cause of DC motor speed oscillations) with third-party boards.
• High-Precision Trigger Control: ±0.5° firing angle accuracy and configurable pulse width (100μs~1ms) ensure reliable thyristor turn-on, even at low anode voltages (e.g., during DC motor startup)—maintains stable DC output voltage (±0.2% variation) and motor speed (±0.1% deviation).
• Dual-Circuit Trigger Support: 6-channel output (3 for armature bridge, 3 for field bridge) enables simultaneous control of DC motor armature (speed regulation) and field (torque optimization)—eliminates the need for separate trigger boards, reducing cabinet space and wiring complexity.
• 2.5kVrms Industrial Isolation: Isolation between trigger outputs, control inputs, and power supply prevents ground loops and voltage transients (common in heavy-industry grids) from corrupting trigger signals—critical for safe operation with high-voltage DC drives (up to 400V DC armature voltage).
• Integrated Fault Detection: Monitors SCR health (open/short-circuit), trigger pulse integrity, and input signal validity—triggers fast shutdown (<10ms) of thyristor bridges if anomalies are detected, protecting expensive DC motors and drive components from damage.
• Noise-Suppression Design: RC low-pass filters on all analog inputs (4~20mA reference/feedback) suppress 50/60Hz grid noise and EMI from nearby motors/VFDs—ensures stable trigger angle control, even in electrically noisy environments (e.g., steel mill rolling mills).
• User-Friendly Configuration: Trigger parameters (pulse width, firing angle limits, fault thresholds) configurable via ABB DriveMaster software or Modbus—technicians can calibrate the board for specific SCR models (50A~500A) without hardware modifications, adapting to diverse DC drive setups.

3. Application Fields

• ABB DCS500/DCS600 DC Drive Control: Primary application—thyristor triggering for DC motor drives:
  • Steel & Metals Industry: Controls thyristor bridges in DCS600 DC drives powering 100kW~200kW rolling mill DC motors; high trigger accuracy (±0.5°) ensures uniform strip thickness, while field bridge control optimizes torque during heavy rolling loads.
  • Mining Operations: Triggers SCRs in DCS500 DC drives for 50kW~150kW mine hoist motors; fault detection prevents SCR damage from voltage transients (common in underground grids), ensuring safe ore lifting and lowering.
• Paper & Pulp Manufacturing: Enables precise DC motor control for process machinery:
  • Paper Machine Calenders: Controls DC motor field circuits via DCS600 drives; adjustable trigger angles optimize motor torque to maintain consistent paper smoothness, while armature trigger control regulates calender speed (±0.1% variation) to avoid paper tearing.
  • Pulp Mixers: Triggers thyristors in DCS500 drives for 30kW~80kW mixer DC motors; noise-suppression filters resist EMI from nearby pumps, ensuring stable mixing speed and uniform pulp consistency.
• Heavy-Duty Material Handling: Supports DC drive systems for high-inertia loads:
  • Port Cranes: Controls DC motor armature bridges in DCS600 drives for 150kW~250kW crane hoist motors; 300% peak torque support (via field weakening trigger control) enables lifting of heavy shipping containers, while fault detection prevents overload damage.
  • Conveyor Systems: Triggers SCRs in DCS500 drives for 20kW~50kW DC conveyor motors; wide temperature range (-10℃~+60℃) adapts to outdoor/indoor conveyor lines, ensuring reliable material transport in cement plants or logistics hubs.
• Legacy DC Drive Upgrades: Modernizes aging ABB DC control systems:
  • Factory Retrofits: Replaces obsolete analog trigger boards (e.g., ABB PG6200) in legacy DCS400 DC drives; digital control improves trigger accuracy by 50%, extending the lifespan of DC motor systems without full drive replacement.
  • Power Generation Auxiliaries: Upgrades trigger control for DCS500 DC drives powering 40kW~80kW boiler feedwater pump motors; Modbus integration enables remote monitoring via AC500 PLCs, supporting predictive maintenance in thermal power plants.

4. Precautions

• ABB DC Drive Exclusivity: Use exclusively with ABB DCS500/DCS600 DC drives and compatible SCR modules (50A~500A). Never install in non-ABB DC drives or AC drive systems—trigger timing mismatches will damage SCRs, DC motors, or the board itself.
• High-Voltage Safety (Critical):
  • De-Energize Before Wiring: Disconnect the DC drive from AC input power and discharge the armature/field circuits (wait ≥15 minutes) before installing/wiring the PG6310—high-voltage DC (up to 400V) poses severe shock risks; never touch trigger output terminals during operation.
  • Insulated Tools Required: Use 1000V-rated insulated tools when connecting trigger outputs to SCR modules—arc flash from accidental short-circuits can cause severe injury and equipment damage.
• Wiring & Shielding:
  • Trigger Cable Specifications: Use twisted-pair shielded cables (22AWG~18AWG) for trigger outputs; ground shields at the PG6310 end (single-point grounding) to maintain 2.5kVrms isolation—unshielded cables or improper grounding cause trigger signal interference, leading to SCR misfiring.
  • Separate Signal Cables: Route analog input cables (4~20mA reference/feedback) at least 20cm away from high-voltage DC cables (armature/field); EMI from DC cables corrupts input signals, causing erratic trigger angles and motor speed fluctuations.
• Parameter Configuration:
  • Match SCR Ratings: Configure trigger pulse width (100μs~1ms) to match the connected SCR module’s turn-on time—too-short pulses fail to turn on SCRs (causing no motor movement), while too-long pulses overheat SCR gates (reducing lifespan).
  • Backup Configurations: Save trigger parameters to a secure location after calibration; restore from backup if parameters are corrupted (e.g., due to power loss during configuration) to avoid re-calibration downtime.
• Maintenance & Inspection:
  • Quarterly Status Checks: Verify LED indicators show normal status (PWR green, TRIG green, SCR green, COM green); red/blinking LEDs indicate faults (e.g., SCR short-circuit) requiring immediate troubleshooting.
  • Cleaning & Testing: Clean the board’s terminals and vents with compressed air (no moisture) quarterly; test trigger accuracy via DriveMaster software (check conduction angle deviation ≤±0.5° at 50Hz)—drift beyond specs indicates component degradation, requiring board replacement.
• Environmental Limitations:
  • Avoid Extreme Temperatures: Do not operate above +60℃ or below -10℃—high temperatures degrade trigger pulse amplitude, while low temperatures increase component latency, leading to SCR turn-on delays.
  • Protect from Moisture/Dust: Install the board in a dust-tight, waterproof enclosure (IP54 or higher) in damp/dusty environments (e.g., paper plants, mining sites)—moisture/dust causes terminal corrosion and short-circuits, disrupting trigger signals.

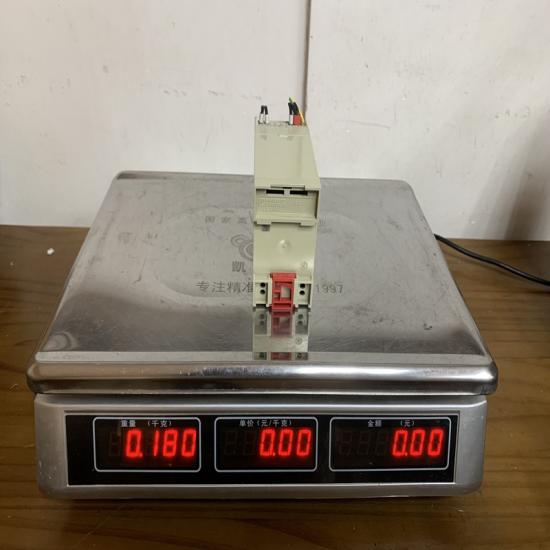

The structure and details of the product：
