The ABB TU846 is a dedicated modular termination unit designed for ABB’s AC 800M Distributed Control System (DCS) and S100 I/O platforms. As a critical "interface bridge" between field wiring (e.g., sensor/actuator cables) and ABB I/O modules (e.g., AI830, DI810, DO810), its core function is to provide secure, organized, and maintenance-friendly termination of field signals. It eliminates direct wiring to I/O modules, simplifies troubleshooting, and protects sensitive module terminals from mechanical damage—making it essential for industrial environments (petrochemicals, power generation, metallurgy) where field wiring density is high and downtime for rework must be minimized.
The TU846 provides a robust interface for connecting field devices to ABB I/O modules:
- Dual-Channel Spring-Clamp Terminals: Each terminal accepts 2 signal wires (e.g., +/– of a 4-20mA sensor), enabling compact termination of 48 channels in a single unit. Spring-clamp design ensures vibration-resistant connections (avoids loose wires from industrial vibration, common in power plants).
- Wide Conductor Support: Accommodates 0.2–2.5mm² wires (tool-free for 0.2–1.5mm², screwdriver-assisted for 1.5–2.5mm²) — compatible with most field wiring standards (e.g., 24 AWG for analog signals, 18 AWG for digital signals).
- Polarization & Labeling: Clear terminal numbering (1–48) and color-coded markers (analog: blue; digital: gray) prevent reverse wiring (e.g., swapping +/– of a pressure transmitter), reducing commissioning errors.
It simplifies wiring changes and troubleshooting—critical for high-density I/O racks:
- Separation of Field vs. Module Wiring: Field wires connect to the TU846’s front terminals; prefabricated "link cables" (ABB-supplied) connect the TU846’s back to I/O modules. This means:
- Replacing an I/O module (e.g., faulty AI830) does not require disconnecting field wires.
- Troubleshooting field wiring (e.g., a shorted sensor) can be done at the TU846 (via test points) without accessing I/O modules.
- Test Points: Each channel has a dedicated test port (compatible with 4mm test probes) — technicians can measure signal values (e.g., 12mA from a flow meter) without disconnecting wires, cutting troubleshooting time by 50%.
The TU846 safeguards signals and I/O modules from damage:
- Electrical Isolation: Channel-to-channel (500V AC) and signal-to-ground (1kV AC) isolation prevents cross-talk between analog/digital signals (e.g., 24V DC digital noise interfering with 4-20mA analog data) and protects I/O modules from ground loops.
- Surge Suppression (Optional): Can be fitted with ABB surge protection modules (e.g., TPS801) for field signals in harsh environments (e.g., lightning-prone areas) — clamps voltage spikes to <300V DC, avoiding I/O module burnout.
- Mechanical Protection: Shields I/O module terminals from accidental damage (e.g., screwdriver slips during wiring) — ABB I/O module terminals are costly to repair/replace, making this a key cost-saving feature.
- Stackable Design: Multiple TU846 units can be mounted side-by-side in AC 800M/S100 racks (19-inch standard) — supports up to 192 channels (4× TU846) per rack, matching the I/O capacity of large DCS systems.
- Backplane Compatibility: Aligns with ABB’s CEX bus backplane in AC 800M racks; no additional mounting hardware is needed (uses the same rack rails as I/O modules), ensuring seamless integration.
-
Reduced Downtime for Maintenance
By separating field and module wiring, replacing an I/O module takes <5 minutes (vs. 30+ minutes to rewire field cables directly) — critical for 24/7 processes (e.g., petrochemical reactors).
-
Minimized Wiring Errors
Color-coded terminals, clear numbering, and test points reduce human error during commissioning and troubleshooting — studies show 30% of I/O-related faults are due to incorrect wiring, which the TU846 eliminates.
-
Cost Savings on Wiring & Labor
- Prefabricated link cables replace custom field-to-module wiring (saves 20–30% on wiring labor).
- Test points eliminate the need for wire disconnection during troubleshooting (saves 1–2 hours per fault).
-
Signal Integrity for Precision Control
Electrical isolation and optional surge protection ensure analog signal accuracy (±0.1% vs. ±0.5% with unprotected wiring) — essential for precision processes (e.g., pharmaceutical batch control, natural gas flow measurement).
- Petrochemical Refinery: 2× TU846 units terminate 96 field signals (48 AI, 48 DI) in an AC 800M rack powering a crude distillation unit. Test points enable quick verification of pressure transmitter signals, reducing troubleshooting time for "low pressure" alarms.
- Power Plant Boiler Control: A TU846 with surge protection modules (TPS801) terminates 48 DO signals (controlling boiler valves) — protects I/O modules from lightning-induced surges common in outdoor power plant cabinets.
- Metallurgical Mill: 3× TU846 units support 144 channels (64 AI, 80 DI) in an S100 I/O rack for a hot rolling mill. Spring-clamp terminals resist vibration from mill operations, preventing loose connections that cause false shutdowns.
-
Wiring Guidelines
- Use stranded copper/aluminum conductors (0.2–2.5mm²); avoid solid conductors (can damage spring clamps).
- Torque screwdrivers to 0.5–0.8N·m when securing 1.5–2.5mm² wires (over-tightening breaks spring clamps).
- Label field wires with terminal numbers (1–48) to match the TU846 — simplifies tracing wires during troubleshooting.
-
Test Point Usage
- Use 4mm insulated test probes (ABB-approved) to measure signals — uninsulated probes risk shorting adjacent channels.
- Disconnect the link cable to the I/O module before applying test voltages (prevents damage to the module).
-
Surge Protection Installation
In hazardous or lightning-prone areas, install ABB TPS801 surge modules in the TU846’s dedicated slots — connect the surge module’s ground terminal to the cabinet’s protective earth bar (resistance ≤1Ω).
-
Compatibility Check
Ensure the TU846 is used with ABB-approved link cables (e.g., ABB 3HAC031683-001) — third-party cables may have incorrect pinouts, causing signal loss.
-
Environmental Considerations
Mount the TU846 in a vertical position with ≥50mm clearance above/below for airflow — avoids overheating in high-temperature cabinets (e.g., steel mill control rooms)

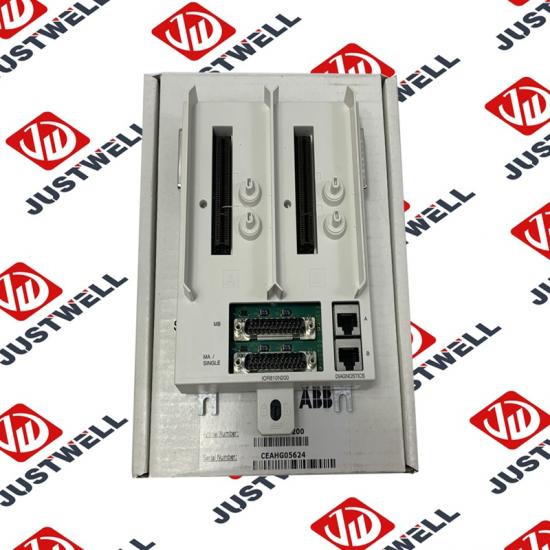

The structure and details of the product：
