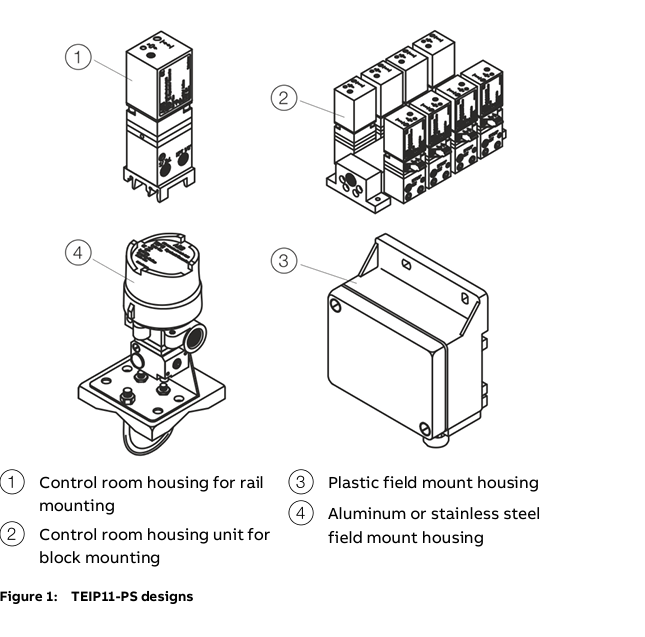

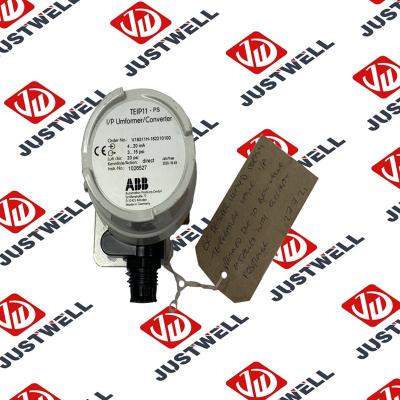

ABB TEIP11-PS V18311H-382110100 I/P Signal Converter

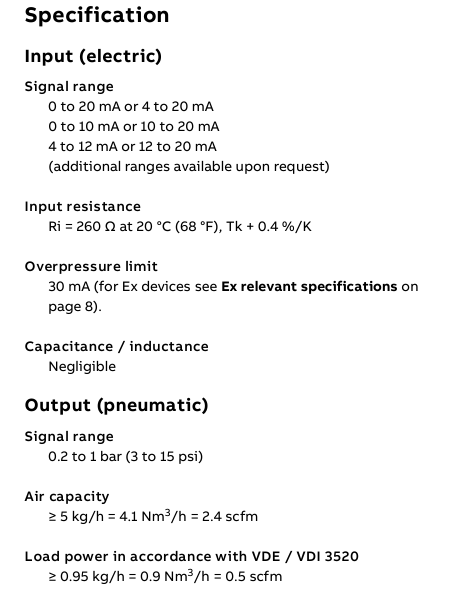

• Input Signal Type: 4-20 mA DC (electrical; configurable to 0-10 V DC via internal DIP switches)​

• Output Signal Type: 0.2-1.0 bar (3-15 psi) pneumatic pressure (dry, oil-free compressed air)​

• Conversion Accuracy: ±0.5% of full-scale output (FSO) at 25°C ±5°C; ±1.0% FSO over operating temperature range​

• Linearity: ≤±0.3% FSO (ensures proportional signal mapping between input and output)​

• Response Time: <0.3 seconds (90% step response from 0.2 to 1.0 bar; meets real-time control needs)​

• Hysteresis: ≤±0.2% FSO (minimizes signal deviation during input increase/decrease cycles)​

• Supply Air Pressure: 1.4-7.0 bar (20-100 psi; clean, dry air with ≤-40°C dew point; filtration ≥40 μm)​

• Air Consumption: <0.15 Nm³/h (5.3 scfh) at 1.0 bar output (no-load condition)​

• Electrical Supply: 24 V DC ±20% (powered via controller or external industrial power supply)​

• Power Consumption: Typical 1.5 W, Maximum 2.0 W (excluding pneumatic supply)​

• Input Impedance: 250 Ω (for 4-20 mA input); 100 kΩ (for 0-10 V DC input)​

• Electrical Protection: Reverse polarity protection (up to 30 V DC); overvoltage protection (28-30 V DC)​

• Pneumatic Protection: Built-in pressure relief valve (prevents over-pressurization of output; max 1.2 bar)​

• Fault Diagnostics: LED indicator (red: power fault/overvoltage; yellow: low supply air pressure; green: normal operation)​

• Environmental Protection: IP65-rated housing (dust-tight, water-resistant for harsh industrial sites)​

• Operating Temperature: -20°C ~ +60°C (suitable for indoor/outdoor industrial installations)​

• Storage Temperature: -40°C ~ +85°C​

• Relative Humidity: 5% ~ 95% (non-condensing)​

• Vibration Resistance: 10-500 Hz, 1.5 g acceleration (IEC 60068-2-6; compatible with process control machinery)​

• Shock Resistance: 25 g acceleration, 11 ms duration (IEC 60068-2-27)​

• EMC Compliance: EN 61000-6-2 (industrial immunity), EN 61000-6-4 (industrial emissions)​

• Dimensions: 120×80×50 mm (Length×Width×Height)​

• Mounting Type: Panel mounting (via integrated brackets); wall mounting (optional adapter)​

• Weight: Approximately 350 g​

• Pneumatic Connections: 1/4" NPT female (supply air in, output air out); 1/8" NPT female (exhaust)​

• Electrical Connections: Screw terminals (accepts 0.5-1.5 mm² cables; torque rating: 0.4-0.6 N·m)​

• System Compatibility: Designed for ABB AC 800M, Freelance DCS, and third-party PLCs (e.g., Siemens S7, Rockwell Allen-Bradley)​

• Certifications: CE (EN 61326-1), UL 508, CSA C22.2 No. 14, ATEX Zone 2 (for hazardous areas; optional), IECEx (global hazardous area compliance)​

• Process Control: Chemical, oil & gas, and pharmaceutical plants (converts controller signals to pneumatic pressure for valve position control, e.g., globe valves, butterfly valves).​

• Manufacturing: Automotive and electronics assembly lines (controls pneumatic grippers, conveyors, and packaging equipment via proportional pressure signals).​

• Energy Infrastructure: Power plants (regulates steam valves, gas dampers, and fuel injectors in turbine control systems).​

• Water & Wastewater: Treatment plants (controls sluice gates, pump diaphragms, and filtration system valves).​

• HVAC & Building Automation: Large commercial buildings (adjusts HVAC damper positions and air handling unit valves for temperature/airflow control).​

• Mount in a well-ventilated area; avoid direct sunlight or proximity to heat sources (e.g., boilers, heaters) to prevent temperature-induced accuracy drift.​

• Ensure pneumatic connections are leak-tight (use Teflon tape on threads); test for air leaks after installation (max allowable leak: <0.01 Nm³/h).​

• Use clean, dry compressed air (filtration ≥40 μm, dew point ≤-40°C) to prevent internal component clogging or corrosion.​

• Do not exceed 7.0 bar supply air pressure (risk of damaging the pressure relief valve).​

• Use shielded cables for input signals (ground shield at the controller end) to reduce electromagnetic interference.​

• Verify electrical supply polarity before connection (reverse polarity may damage internal circuits, though protected).​

• Perform annual calibration using a certified pressure calibrator and signal generator; adjust zero/span screws (accessible via front panel) to maintain ±0.5% FSO accuracy.​

• Calibrate at the module’s operating temperature (avoid calibrating in cold storage or hot workshops).​

• Inspect pneumatic filters monthly (replace if clogged); clean the module housing with a damp cloth (avoid high-pressure water jets).​

• Replace the module if output pressure fails to respond to input signal changes (indicates internal diaphragm or solenoid failure).​

• Do not disassemble the module (voids warranty and risks pneumatic/electrical hazards).

•
•
•
• ​
•
