Technical Data of ABB TB82PH Transmitter

I. Product Description

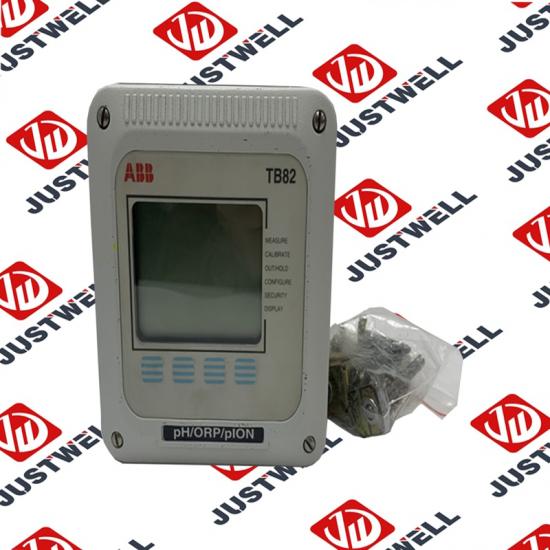

The ABB TB82PH is a high-performance two-wire pH/ORP (Oxidation-Reduction Potential)/pION (ion selective) transmitter designed with advanced microprocessor technology. It is developed for demanding applications in industrial environments, supporting 4-20mA analog output and various digital communication protocols such as HART, Foundation Fieldbus, or PROFIBUS PA. The transmitter features a modular design, allowing quick replacement of sensor modules to adapt to different analytical needs (e.g., pH, ORP, or ion concentration measurement).

The housing, made of anodized aluminum with a polyurethane powder coat, provides IP65/NEMA 4X protection and is suitable for wall or pipe mounting. The device includes a built-in lightning suppressor and self-diagnostics功能确保在恶劣环境中稳定运行.

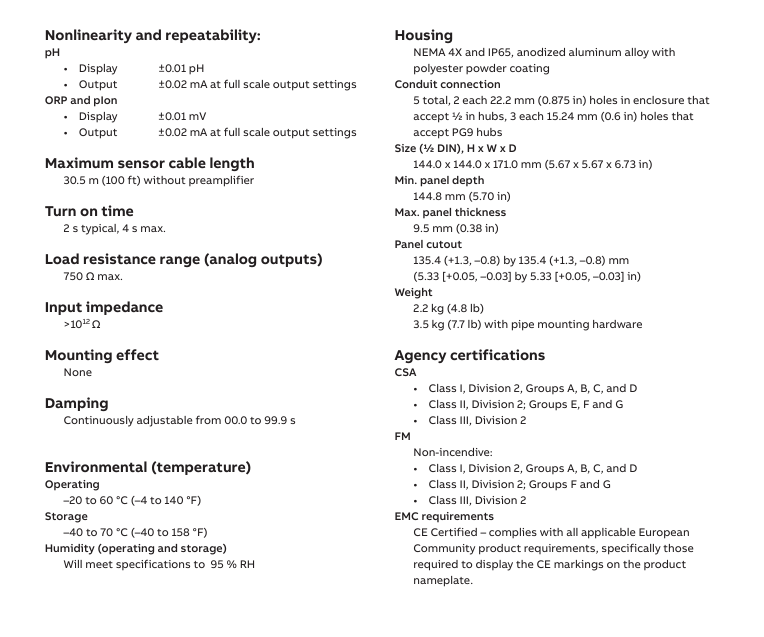

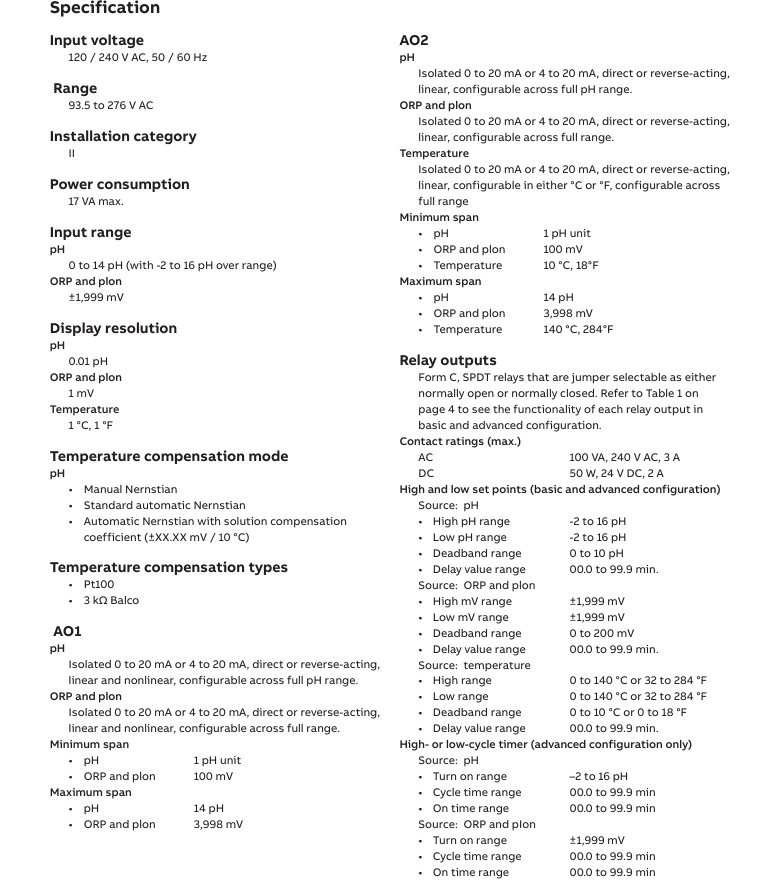

II. Detailed Technical Specifications

III. Product Advantages & Features

1. Advanced Diagnostics: Continuously monitors internal circuits and sensor status, detecting faults such as glass electrode breakage, sensor coating, liquid depletion, ground loops, cable shorts, or opens. Provides monitoring of slope, asymmetry potential, out-of-range process variables, and temperature.

2. Flexible Communication: Supports multiple industrial communication protocols (HART, Foundation Fieldbus, PROFIBUS PA), facilitating integration into existing automation systems.

3. User-Friendly Interface: Features an innovative user interface with hotkey functionality and menu-guided programming, simplifying operation and calibration procedures. Offers both Basic and Advanced operating modes.

4. High Accuracy & Reliability: High accuracy of ±0.01 p, wide temperature and media adaptability ensure precise measurement and long-term stability in harsh industrial environments.

5. Modular Design & Compatibility: The modular design allows the transmitter to flexibly adapt to various sensor types (pH, ORP, ion-selective electrodes) and is compatible with sensors from multiple brands, reducing maintenance and upgrade costs.

6. Rugged Housing & Mounting Flexibility: IP65/NEMA 4X rated housing supports various mounting methods (wall, pipe, panel), suitable for diverse industrial field installation conditions.

IV. Application Fields

The ABB TB82PH transmitter is widely used in industrial processes requiring precise measurement of pH, ORP, or ion concentration, including:

• Water & Wastewater Treatment: Monitoring neutralization processes, flocculation, precipitation, effluent quality, etc.

• Chemical Industry: Chemical reaction process control, product purity monitoring, corrosion control, etc.

• Power Industry: pH monitoring of boiler feedwater, condensate, and cooling water to prevent system corrosion and scaling.

• Pulp & Paper Industry: pH control in pulping, bleaching, coating chemicals.

• Other Industries: Process liquid analysis in food & beverage, pharmaceutical, metal processing, etc.

V. Important Considerations

1. Installation & Wiring: Installers should be electricians familiar with national electrical codes and relevant wiring standards. Ensure proper grounding of the transmitter to avoid electrical hazards and measurement errors.

2. Sensor Selection & Maintenance: Select sensors compatible with the measurement medium and temperature range. Regularly clean and calibrate sensors to maintain measurement accuracy. Although the transmitter is compatible with various sensors, ABB sensors are recommended for optimal performance.

3. Environmental Conditions: Ensure the operating ambient temperature is within the specified range (-20°C to 60°C). Avoid installation locations with extreme temperatures, highly corrosive gases, or strong mechanical vibration.

4. Calibration & Configuration: Calibration and configuration should be performed by technicians with knowledge of pH/ORP/pION measurement and electronic instrumentation. Use fresh standard buffer solutions for calibration.

5. Safe Operation: Operators and maintenance personnel should be aware of process risks and follow safety procedures. Always read and understand the product manual before attempting any operation, maintenance, or repair procedure.

6. Lightning Protection: If the model includes a Lightning Suppressor, it helps protect the device from surge damage. However, additional surge protection measures are still recommended in areas prone to thunderstorms.
