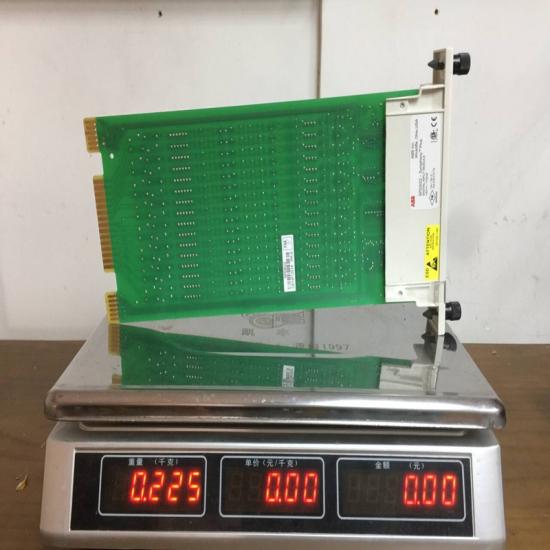

ABB SPDSI14 Digital Input Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

1. Product Overview

The ABB SPDSI14 is an industrial Digital Input Module used to transmit field switch or sensor signals to PLCs or Distributed Control Systems (DCS). It features high reliability, strong interference immunity, and fast response, making it suitable for process control, industrial production lines, building automation, and energy management systems.

The SPDSI14 detects various status signals such as push buttons, limit switches, proximity sensors, and photoelectric switches, enabling industrial control systems to monitor and control field equipment.

2. Main Technical Specifications

• Model: SPDSI14

• Type: Digital Input Module

• Input Channels: 16 (expandable)

• Input Type: Voltage type or relay contact type (optional)

• Rated Voltage: 24 V DC / 230 V AC (depending on configuration)

• Maximum Input Current: 5–10 mA per channel

• Response Time: <1 ms

• Insulation Voltage: ≥500 V AC (inputs isolated from system)

• Communication Interface: PROFIBUS, Modbus, Ethernet (depending on system)

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Protection Class: IP20

• Mounting: DIN rail or cabinet mount

• Dimensions & Weight: 125×100×75 mm, approx. 0.5 kg

3. Advantages and Features

1. High Reliability

• Industrial-grade design withstands high temperatures and interference.

• Internal protection ensures input safety.

2. Fast Response

• Response time <1 ms, suitable for high-speed industrial automation.

• Accurate detection of field signals ensures control system reliability.

3. Easy Integration

• Supports multiple industrial bus protocols, compatible with PLCs and DCS.

• Modular design allows easy installation, expansion, and maintenance.

4. Safety and Protection

• Electrically isolated inputs improve system safety.

• Built-in overvoltage protection prevents module damage.

5. Broad Application Compatibility

• Suitable for industrial production lines, energy management, building automation, and process control systems.

4. Typical Application Areas

• Industrial automation production line status monitoring

• PLC or DCS input signal acquisition

• Push button, limit switch, proximity sensor, and photoelectric sensor detection

• Building automation and energy management systems

• Process control and industrial monitoring

5. Precautions

1. Ensure module input voltage and current match field signal specifications before installation.

2. Install in a dry, well-ventilated cabinet free from strong electromagnetic interference.

3. Secure all input connections to prevent loose contact.

4. Avoid exceeding rated input voltage or current.

5. Regularly inspect terminal connections, module status, and cooling conditions.

6. In case of fault or alarm, disconnect power immediately to prevent further damage.

7. Avoid direct exposure to moisture, corrosive gases, or vibration.
