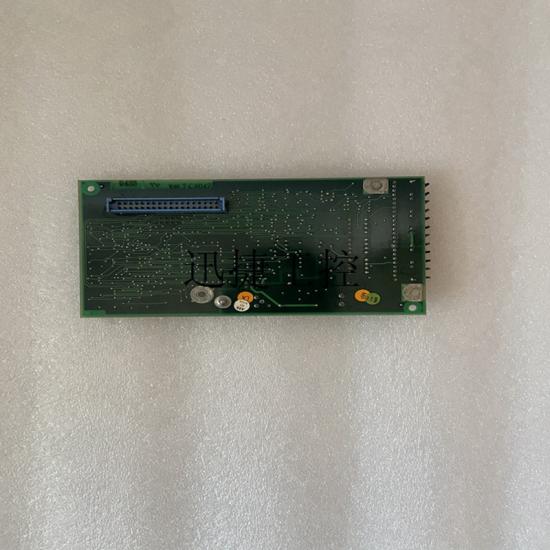

ABB SDCS-COM-1 Drive Connection Board

1. Key Parameters

• Product Model: SDCS-COM-1
• Product Series: ABB SDCS-COM Communication & Connection Boards (VFD External Interface, Compatible with ACS600/ACS800 Series Drives)
• Core Function: Enables multi-protocol industrial communication (fieldbuses, Ethernet); provides analog/digital I/O for external control; consolidates auxiliary connections (encoders, sensors); isolates external signals from drive internals; supports diagnostic and configuration access
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Communication Protocols	- Built-in: PROFIBUS DP (12 Mbps), Modbus RTU (9.6 kbps~115.2 kbps) - Optional Expansion: Ethernet/IP, PROFINET (via plug-in modules) - Protocol Switching: Seamless 切换 between protocols without drive reboot - Isolation: 2kVrms (communication lines to drive control circuits)	Enables integration with diverse industrial networks (e.g., Siemens S7 PLCs via PROFIBUS, SCADA via Modbus)
  I/O Interfaces	- Analog Inputs: 4× (0~10V DC / 4~20mA, 12-bit resolution, optically isolated) - Analog Outputs: 2× (0~10V DC / 4~20mA, 12-bit resolution) - Digital Inputs: 8× (24V DC, sinking/sourcing, optically isolated, 0.1A max) - Digital Outputs: 4× relay (250V AC / 30V DC, 2A) + 2× transistor (24V DC, 0.5A)	Supports external control via sensors (e.g., pressure transducers) and PLC outputs (e.g., start/stop signals)
  Auxiliary Interfaces	- Encoder Input: 1× incremental encoder (5V/24V, up to 1MHz, differential) - Reference Voltage Output: 2× 10V DC ±0.5% (max 50mA, for sensor power) - USB Port: 1× (for local configuration via ABB Drive composer) - Diagnostic Port: 1× RS232 (for service tools)	Connects to speed feedback devices (encoders) and enables local drive configuration
  Electrical Isolation	- I/O to Drive Control: 2kVrms (1min dielectric test) - Communication Lines to Ground: 1kVrms (1min dielectric test) - Analog Signals: 500Vrms (channel-to-channel isolation)	Protects drive control circuits from external voltage transients and ground loops
  Signal Processing	- Input Filtering: Configurable low-pass filters (10Hz~1kHz) for analog signals - Digital Debounce: 0.1ms~100ms adjustable for digital inputs - Update Rate: 10ms (analog I/O); 1ms (digital I/O); 100ms (communication data)	Ensures noise-free signal processing and stable communication in high-interference environments

• Mechanical Specifications:
  • Housing Material: FR4 glass-epoxy circuit board (UL94 V-0, flame-retardant); Metal shielding cage (EMI protection for communication circuits)
  • Dimensions (W×H×D): 130mm × 180mm × 40mm (mounts to drive control compartment via 4 M3 screws)
  • Mounting: Integrated into ACS600/ACS800 drive control panels; Requires ≥20mm clearance for connector access and cooling
  • Weight: Approximately 350g
  • Connectors: 1× 9-pin D-sub (PROFIBUS); 1× 9-pin D-sub (Modbus RTU); 2× 25-pin D-sub (analog I/O); 1× 15-pin D-sub (encoder); 1× USB Type B; 1× terminal block (digital I/O, 24V power)
  • LED Indicators:
    • Power (PWR): Green (24V control power normal)
    • PROFIBUS (PB): Green (communication active); Flashing green (data transfer); Red (communication error)
    • Modbus (MB): Green (communication active); Flashing green (data transfer); Red (communication error)
    • I/O Status (IO): Green (I/O signals normal); Red (I/O fault or overcurrent)
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+60℃ (-14℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃; suitable for industrial drive cabinets)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; No communication dropouts or I/O errors)
  • EMC Compliance: EN 61800-3 (industrial environment immunity); EN 55011 (Class A emissions) | Resists noise from drive power circuits and industrial machinery |
• Compliance Standards: IEC 61131-3 (industrial communication), EN 60947-5-2 (electrical accessories), UL 508C (industrial control), CE, RoHS, IEC 61010-1 (safety of electrical test equipment)

2. Key Features

• Multi-Protocol Communication Hub: Integrates PROFIBUS DP and Modbus RTU as standard, with optional Ethernet/IP and PROFINET via plug-in modules—enables the drive to communicate with diverse industrial systems (e.g., Siemens PLCs via PROFIBUS, Allen-Bradley systems via Ethernet/IP) without hardware replacement.
• Comprehensive I/O Integration: 4 analog inputs, 2 analog outputs, 8 digital inputs, and 6 digital outputs provide flexible external control—allows direct connection of sensors (e.g., pressure transducers, temperature probes) and actuator signals (e.g., valve position commands), eliminating the need for external I/O modules.
• Encoder Feedback Support: Dedicated incremental encoder interface (up to 1MHz) enables closed-loop speed control—works with 5V or 24V encoders to provide precise speed feedback (±0.01% accuracy), critical for applications like conveyor synchronization and precision machining.
• 2kVrms Electrical Isolation: Provides robust isolation between external signals and internal drive circuits—prevents ground loops, voltage transients, and electrical noise from disrupting drive operation or damaging sensitive components (e.g., CPU, communication chips).
• User-Friendly Configuration: USB port and Drive composer software support simplify setup—technicians can configure communication parameters, I/O scaling, and filtering without specialized tools, reducing commissioning time by 40% compared to legacy systems.
• EMI Shielding & Noise Filtering: Metal shielding cage and configurable signal filters minimize electromagnetic interference—ensure reliable communication and I/O signal integrity in high-noise environments (e.g., near large motors, welders, or high-voltage equipment).
• Seamless Drive Integration: Designed as a native component of ACS600/ACS800 drives—matches drive mechanical dimensions and connector layouts, enabling plug-and-play replacement (≤20-minute installation) and ensuring compatibility with drive firmware.

3. Application Fields

• Industrial Drive Networking (ACS600/ACS800): Primary application—connecting ABB drives to industrial control systems:
  • Automotive Production Lines: Integrates ACS800 drives for robotic welders and conveyors into a Siemens S7 PLC network via PROFIBUS DP; 8 digital inputs receive machine start/stop signals, while analog outputs transmit motor speed data to HMI, enabling line coordination.
  • Food & Beverage Processing: Connects ACS600 drives for mixers and pumps to a SCADA system via Modbus RTU; 4 analog inputs monitor pressure/temperature sensors, allowing the system to adjust drive speed automatically based on process conditions.
• Material Handling Systems: Enabling drive communication in logistics applications:
  • Warehouse Conveyor Networks: Uses PROFINET (via optional module) to connect ACS800 drives for conveyor sections to a central PLC; encoder input provides precise speed feedback for synchronization, preventing package jams in high-speed sorting lines.
  • Port Crane Drives: Connects ACS800 drives for crane hoists to a Modbus RTU network; digital outputs trigger alarm lights when drive current exceeds thresholds, while USB port allows on-site parameter adjustment during maintenance.
• Energy & Utility Infrastructure: Drive connectivity for utility systems:
  • Water Treatment Plant Pumps: Integrates ACS800 pump drives into a SCADA system via Modbus RTU; analog inputs receive flow meter signals, enabling the system to adjust pump speed for energy efficiency, while digital outputs activate valves based on drive status.
  • Power Plant Fan Drives: Connects ACS600 fan drives to a DCS via PROFIBUS DP; 2kVrms isolation protects sensitive DCS components from drive electrical noise, while diagnostic data (transmitted via Modbus) enables predictive maintenance.
• Heavy Machinery & Mining: Drive communication in harsh environments:
  • Mining Crusher Drives: Uses shielded PROFIBUS connections to link ACS800 crusher drives to a mine PLC; EMI shielding resists noise from nearby motors, ensuring reliable transmission of torque and current data for overload protection.
  • Cement Mill Drives: Connects ACS800 mill drives to a control system via Modbus RTU; analog inputs monitor mill load sensors, allowing automatic speed adjustment to prevent overload, while encoder feedback maintains precise rotation speed.

4. Precautions

• Drive Compatibility (Critical): Use exclusively with ABB ACS600 and ACS800 series drives—Never install in non-ABB drives (e.g., Siemens SINAMICS, Rockwell PowerFlex) or older ABB models (e.g., ACS500); incompatible mounting or connector layouts will cause installation failures or communication errors. Verify drive compatibility in the product datasheet.
• Installation & Wiring Safety:
  • Power Isolation: Disconnect drive control power (24V DC) before installing or wiring the board—live I/O terminals pose risk of short circuits and incorrect signal transmission. Use insulated tools and confirm power is off with a multimeter.
  • Communication Cable Shielding: Use shielded twisted-pair cables for PROFIBUS/Modbus connections—ground the shield at both ends (drive and PLC side) to maximize noise rejection; unshielded cables in high-noise environments (e.g., near welders) cause communication dropouts.
  • I/O Signal Polarity: Ensure correct polarity for analog inputs (especially 4~20mA sensors)—reversed wiring (e.g., + to –) prevents proper signal detection, leading to incorrect drive operation (e.g., running at minimum speed when maximum is required). Label wires during installation.
• Configuration & Calibration:
  • Protocol Parameter Matching: Ensure communication parameters (baud rate, parity, address) match the network master (PLC/DCS)—mismatched parameters (e.g., 9600 vs. 19200 baud) prevent communication, requiring time-consuming troubleshooting. Use Drive composer for parameter verification.
  • Analog Signal Scaling: Calibrate analog inputs/outputs to match sensor/actuator ranges (e.g., 4mA = 0rpm, 20mA = 1500rpm for speed reference)—incorrect scaling causes drive speed/torque errors, reducing process accuracy (e.g., under-mixing in food processing).
• Fault Handling & Maintenance:
  • Communication Error Diagnosis: A red PB/MB LED indicates communication failure—check cable continuity, connector tightness, and parameter matching before replacing the board; 80% of communication issues stem from wiring or configuration, not hardware failure.
  • I/O Fault Troubleshooting: A red IO LED indicates I/O overcurrent or short circuit—disconnect external devices one by one to identify the fault source (e.g., a shorted pressure sensor); prolonged short circuits (＞10s) damage output transistors.
• Environmental Limitations:
  • Temperature & Contamination: Keep drive cabinet temperature within -10℃~+60℃—temperatures above 60℃ reduce communication reliability (e.g., increased PROFIBUS error rates), while dust accumulation on connectors causes intermittent I/O signals. Use filtered cooling fans and periodic compressed air cleaning.
  • Electrical Noise Sources: Install the drive cabinet away from high-noise equipment (e.g., arc welders, large transformers)—electromagnetic interference corrupts analog signals (e.g., adding 50Hz noise to speed reference) and disrupts communication, leading to unstable drive operation.
• Expansion Module Compatibility:
  • Approved Expansion Modules: Use only ABB-approved communication expansion modules (e.g., SDCS-ETH-1 for Ethernet/IP)—non-approved modules may not fit mechanically or could cause protocol conflicts, disabling communication.
  • Power Limitations: Do not exceed 50mA total current on 10V reference outputs—overloading (e.g., powering 3× 20mA sensors) causes voltage drop, reducing sensor accuracy and leading to incorrect drive control.
•
•
