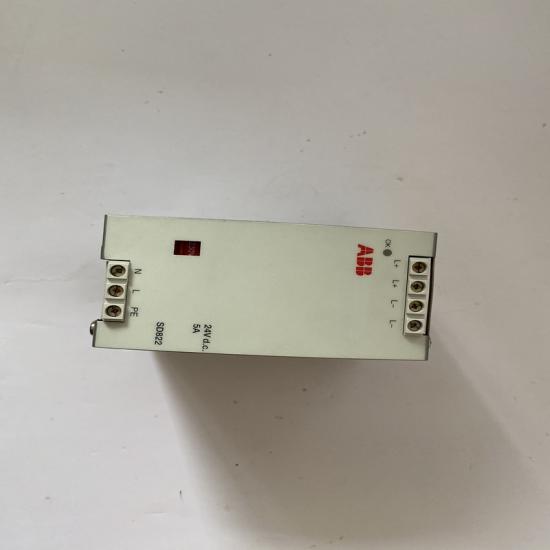

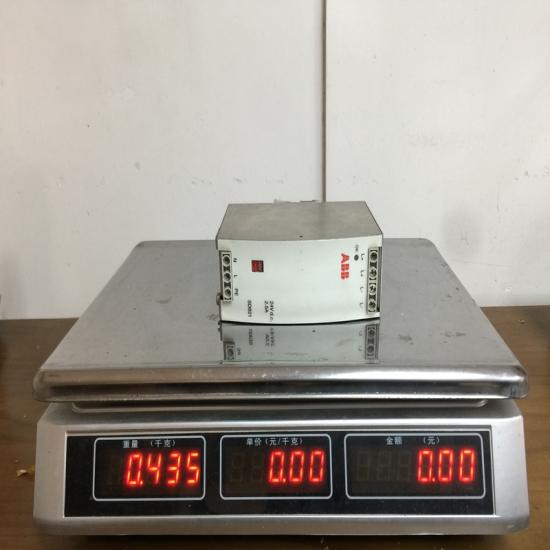

ABB SD822 Power Supply Module

Product Description

1. Key Specifications

2. Core Functions

2.1 Stable Power Conversion & Regulation

• Global Grid Compatibility: The 100–240V AC input range eliminates the need for regional variants, supporting use in North America (110V AC), Europe (230V AC), and Asia (220V AC).
• Precise Voltage Regulation: Maintains 24V DC ±1% even with input fluctuations (±10%) or load changes (10%–100%). This stability is critical for analog I/O modules (e.g., AI830) that rely on clean power to avoid sensor signal distortion (e.g., false pressure readings).
• Low Ripple Output: Filters AC ripple to ≤50mV peak-to-peak, preventing interference with communication modules (e.g., CI858) and ensuring reliable data transmission over PROFINET/EtherNet/IP.

2.2 Redundancy & Hot-Swap for High Availability

• N+1 Redundancy: Up to 3 SD822 modules can be connected in parallel with an ABB RD801 redundancy module. The RD801 balances load across modules (each handling ~33% of 10A total load) and automatically switches to remaining modules if one fails—with a transition time ≤100ms (no voltage dip, so DCS operation continues uninterrupted).
• Hot-Swap Capability: In redundant configurations, faulty SD822 modules can be replaced without powering down the system. This is critical for 24/7 processes (e.g., nuclear power plant auxiliary control) where downtime is unacceptable.

2.3 Comprehensive Fault Protection

• Overcurrent/Short-Circuit Handling: If an I/O module short-circuits (e.g., a damaged DO810 output channel), the SD822 limits current to 12A and shuts down instantly to avoid wiring overheating or controller damage. It recovers automatically once the fault is fixed.
• Thermal Management: Internal temperature sensors trigger a shutdown if the module overheats (e.g., due to blocked ventilation or high ambient temperature ≥85°C). This prevents capacitor degradation and extends the module’s lifespan (typical MTBF: 100,000 hours).
• Voltage Spike Suppression: Clamps output voltage to ≤28V DC during transient events (e.g., lightning-induced surges or grid fluctuations), shielding sensitive components like the PM851’s CPU from damage.

2.4 Status Monitoring & Diagnostics

• LED Indicators:
  • Green "POWER" LED: Illuminates when output is active and within 24V DC ±1% (normal operation).
  • Red "FAULT" LED: Lights up for overcurrent, overvoltage, or overtemperature faults (quick visual identification of issues).
• Diagnostic Dry Contact: A dedicated digital output (normally open) can be connected to a DCS DI module (e.g., DI810). This triggers SCADA/HMI alarms (e.g., "SD822 #2 Fault") for remote monitoring, eliminating the need for on-site checks.

3. Core Advantages

1. Unmatched Reliability for Harsh Environments
   The -25°C~+70°C operating range and robust protection features ensure stable performance in extreme conditions (e.g., desert power plants, freezing water treatment facilities) where consumer-grade power supplies fail.
2. Zero-Downtime Maintenance
   Hot-swap capability and N+1 redundancy eliminate single points of failure, achieving ≥99.999% availability—critical for processes where even 1 minute of downtime costs thousands of dollars (e.g., petrochemical refining).
3. Seamless ABB System Integration
   The SD822 is engineered to match the power requirements of AC 800M/S100 modules (24V DC, 10A max load per rack). Its 19-inch rack design fits perfectly into ABB control cabinets, avoiding compatibility issues with third-party power supplies.
4. Cost-Effective Operation
   • High efficiency (≥90%) reduces annual energy costs (e.g., $50–$100 savings per module vs. 80% efficient alternatives).
   • Built-in protection minimizes replacement costs from component damage.
   • Redundancy avoids downtime expenses (e.g., $10,000+/hour for a steel mill shutdown).

4. Typical Applications

4.1 Power Plant Boiler Control

• Use Case: Powers an AC 800M system in a 600 MW coal-fired power plant.
• Configuration: 2× SD822 modules in redundant mode (N+1) supply 24V DC to 1× PM851 controller, 2× CI855 PROFIBUS modules, and 8× AI830 analog input modules (monitoring boiler temperature/pressure).
• Value: Redundancy ensures no power loss during maintenance, preventing boiler control system shutdowns and grid stability risks.

4.2 Petrochemical Reactor Automation

• Use Case: Provides power to S100 I/O racks in a polyethylene reactor.
• Configuration: 3× SD822 modules (N+1 redundancy) power 12× DO810 modules (controlling solenoid valves) and 6× DI810 modules (monitoring emergency stop contacts).
• Value: Overcurrent protection prevents damage from valve coil short circuits, while low ripple ensures accurate pressure sensor data for reactor safety interlocks.

4.3 Metallurgical Hot Rolling Mill

• Use Case: Supports a steel mill’s AC 800M system in a high-temperature environment (+60°C).
• Configuration: 1× SD822 (standalone, for non-critical I/O) powers 4× CI857 EtherNet/IP modules (controlling roll speed VFDs) and 2× pulse input modules.
• Value: Over-temperature protection avoids shutdowns during peak mill operation, while wide input range handles unstable mill grid power.

5. Installation & Operation Precautions

1. Wiring Guidelines
   • Use 1.5mm² copper cables for AC input (rated for 3.5A max) and 2.5mm² cables for DC output (rated for 10A continuous current).
   • Torque terminal screws to 1.5–2.0N·m (over-tightening strips terminals; under-tightening causes overheating).
   • Connect the PE (protective earth) terminal to the cabinet ground bar (resistance ≤1Ω) to reduce EMI and ensure safety.
2. Redundancy Setup
   • When using parallel SD822 modules, always pair with the ABB RD801 redundancy module (third-party redundancy modules cause load imbalance).
   • Keep DC output cable lengths equal (±5%) between modules to ensure balanced load sharing (uneven lengths lead to one module overworking).
3. Ventilation Requirements
   • Mount the module vertically with ≥50mm clearance above/below for airflow. Blocked ventilation causes overheating (the #1 cause of SD822 failures).
   • For cabinets with multiple SD822 modules, install cooling fans to maintain ambient temperature ≤50°C (critical for +70°C max operation).
4. Genuine Replacement Only
   Counterfeit SD822 modules lack proper isolation and protection, leading to:
   • Voltage fluctuations that corrupt DCS data.
   • No over-temperature shutdown (risk of fire).
   • Incompatibility with RD801 redundancy modules.
     Always use ABB-genuine SD822 modules (part number verification via ABB’s official portal).
5. Startup Checks
   After installation:
   1. Verify AC input voltage matches the 100–240V AC range.
   2. Check DC output with a multimeter (should read 24V DC ±0.24V).
   3. Activate a test load (e.g., power on a DO810 module) and confirm the "POWER" LED remains green (no fault trigger)
