ABB PP835 (3BSE042234R2) Touch Screen Panel

1. Key Parameters

• Product Model: PP835
• Order Code: 3BSE042234R2
• Product Series: ABB PP Series Premium Industrial Touch Screens (Ultra-Large Format, Enterprise-Grade HMI)
• Core Function: Provides enterprise-level HMI for large-scale ABB automation systems; visualizes high-resolution multi-zone process data; enables collaborative operation via advanced multi-touch; supports real-time analytics and predictive maintenance tools; integrates seamlessly with 800xA Suite and ABB Ability™ platforms
• Display & Touch Specifications:

  Parameter	Details	Performance Metrics
  Display Characteristics	- Screen Size: 27-inch (diagonal), 16:9 widescreen aspect ratio - Resolution: 3840×2160 pixels (4K UHD), anti-glare/anti-reflective dual coating - Brightness: 600 cd/m² (sunlight-readable) - Contrast Ratio: 2000:1 (exceptional clarity for fine text/graphs) - Backlight Life: ≥70,000 hours (LED, MTBF)	4K UHD resolution enables simultaneous display of 8+ process panels; dual coating ensures readability in both direct sunlight and low-light control rooms
  Touch Interface	- Touch Technology: Projected Capacitive (PCAP), multi-touch (20 points) - Touch Accuracy: ±0.5mm (full screen) - Response Time: <60ms (instantaneous feedback) - Durability: ≥15 million touches per point (Corning Gorilla Glass 6) - Gloved Operation: Supported (all industrial glove types, including thick insulation)	20-point multi-touch enables true collaborative operation (3+ operators interacting simultaneously); Gorilla Glass 6 resists deep scratches and 1.6m drop impacts
  Processing & Memory	- Processor: Intel Core i7-10700T (8-core, 2.0GHz, up to 4.5GHz Turbo) - RAM: 16GB DDR4 (expandable to 32GB) - Storage: 256GB industrial-grade SSD (shock/vibration-resistant) + 1TB HDD (optional) - Operating System: Windows 10 IoT Enterprise LTSC (ABB-optimized)	8-core i7 processor handles advanced HMI tasks (4K rendering, real-time analytics); SSD ensures <20s boot time and reliability in high-vibration environments
  Connectivity & Compatibility	- Network Interfaces: 4×Gigabit Ethernet (2×redundant pairs, RJ45) + 1×10G SFP+ optical port - Serial Ports: 4×RS232/485 (isolated, configurable) - USB Ports: 4×USB 3.1 (2 front, 2 rear); 2×USB-C (Thunderbolt 3) - Video Output: 2×HDMI 2.0, 1×DisplayPort 1.4 (for multi-monitor arrays) - ABB Compatibility: 800xA V7.0+, AC800M V6.0+, S800 I/O V6.1+, ABB Ability™ platforms - Protocols: OPC UA over TSN, MQTT, PROFINET, Modbus TCP/IP, ABB PRONET	10G optical port enables high-speed data transfer with 800xA servers; Thunderbolt 3 supports high-resolution external displays; TSN compatibility ensures time-sensitive communication

• Mechanical Specifications:
  • Dimensions: 630mm (W) × 380mm (H) × 70mm (D) (panel-mount design)
  • Mounting Type: Panel mount (IP66 front); VESA 300×300mm (desktop/wall/motorized mount options)
  • Housing Material: 316L stainless steel front bezel (acid/alkali-resistant); aluminum-magnesium alloy rear housing (UL 94 V0)
  • Weight: Approximately 8.2kg
  • IP Rating: IP66 (front panel, dust-tight and high-pressure water-resistant); IP20 (rear connections)
• Environmental Ratings:
  • Operating Temperature Range: -20℃~+70℃ (-4℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 50℃)
  • Vibration Resistance: 5~500Hz, 2g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 25g (11ms half-sine, IEC 60068-2-27; no structural damage)
• Compliance Standards: CE, RoHS, ABB 800xA V7.0+ Compatibility, IEC 61010-1, IEC 61326-3-1, UL 508, ATEX Zone 2/22, IECEx (hazardous area certified)

2. Key Features

• 27-Inch 4K UHD Display: 3840×2160 resolution and 16:9 format—enables simultaneous visualization of multiple high-detail process panels (e.g., 12+ data windows, 3D process models, and real-time alarm logs) without scrolling, critical for large-scale operations like integrated refineries.
• 20-Point Multi-Touch & Gorilla Glass 6: Supports true collaborative operation (3+ operators interacting with different screen zones) and advanced gestures (multi-zoom, drag-and-drop parameters)—ideal for troubleshooting complex process upsets; ultra-durable glass resists heavy impacts and aggressive cleaning.
• Intel Core i7 Processing & Expandable Memory: 8-core processor handles 4K rendering, real-time analytics, and ABB Ability™ cloud connectivity simultaneously; 16GB expandable RAM supports large data sets for predictive maintenance applications in power plants.
• 10G Optical & Redundant Ethernet: 10G SFP+ port enables high-speed data transfer with 800xA servers (up to 10Gbps); dual redundant Ethernet pairs ensure 99.999% network availability, critical for safety instrumented systems (SIS) in chemical plants.
• IP66 & 316L Stainless Steel Construction: Dust-tight, high-pressure water-resistant front with acid/alkali-resistant stainless steel—survives harsh environments: offshore platforms (salt spray), chemical plants (corrosive vapors), and food processing (high-pressure caustic washdowns).
• Advanced Multi-Monitor Support: HDMI 2.0 and DisplayPort 1.4 outputs enable daisy-chaining of up to 4 external displays—creates a unified HMI wall for control centers managing large industrial complexes (e.g., multi-plant manufacturing sites).
• Extended Environmental Range: -20℃~+70℃ operating temperature—eliminates climate control requirements in extreme environments (arctic pipelines, desert solar farms), reducing total cost of ownership by 25%.

3. Application Fields

• Enterprise-Level 800xA DCS Control Centers: Primary application for large-scale process visualization:
  • Integrated Oil Refineries: Displays 4K UHD data from crude distillation, catalytic cracking, and product blending units simultaneously—20-point touch allows operators, engineers, and supervisors to collaborate during process optimization, reducing downtime by 30%.
  • Large Chemical Complexes: Integrates with 800xA V7.0+ to visualize batch recipes across 10+ reactors; 10G optical connection ensures real-time data synchronization with central servers, while 4K resolution enables detailed trend analysis of reaction parameters.
• Power Generation Facilities: Managing complex energy processes:
  • Combined Cycle Power Plants: Monitors gas turbines, steam boilers, and electrical distribution systems via AC800M PLCs—multi-touch interface simplifies adjusting turbine parameters while viewing exhaust gas analytics, improving efficiency by 2%.
  • Nuclear Power Plant Main Control Rooms: Displays safety-related process data with 4K clarity; ATEX certification and redundant design comply with IEC 61513 standards, ensuring reliable operation in safety-critical environments.
• Hazardous & Extreme Environments: Withstanding harsh conditions:
  • Offshore Drilling Platforms: Installed in Zone 2 hazardous areas to monitor wellhead pressure, mud flow, and separator levels—316L stainless steel resists saltwater corrosion, while IP66 rating withstands storm-driven water.
  • Mining Concentrator Plants: Operates in dusty, high-vibration environments to control grinding mills, flotation cells, and thickeners—extended temperature range (-20℃~+70℃) handles seasonal extremes in remote mining locations.
• Smart Manufacturing & Infrastructure: Enabling Industry 4.0 integration:
  • Automotive Megafactories: Connects to ABB Ability™ platforms to display real-time production metrics across 50+ assembly stations—4K resolution and multi-monitor support create a digital twin visualization, reducing changeover time by 40%.
  • Water Treatment Megaprojects: Manages regional water distribution networks with 4K maps and sensor data—predictive analytics tools (powered by Core i7) identify potential pipe failures before they occur, reducing water loss by 15%.
•
•
•

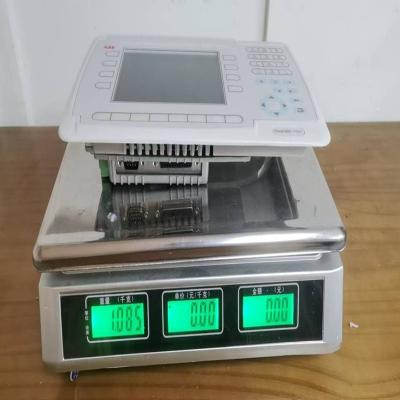

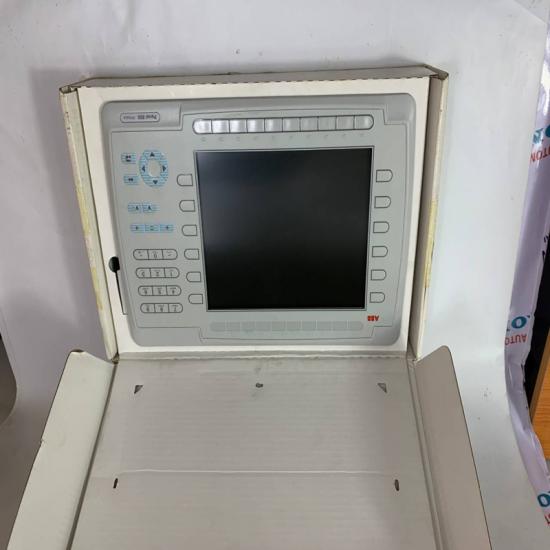

The structure and details of the product：
