ABB PFVO142 3BSE023732R1 Supporting Unit Module

1. Key Parameters

• Product Model: PFVO142
• Order Code: 3BSE023732R1
• Product Series: ABB AC800M/800xA Supporting Unit Modules (Power & Signal Auxiliary)
• Core Function: Provides redundant power distribution to AC800M PLC modules; conditions analog/digital signals for noise reduction; enables communication bus expansion; monitors module health status; supports hot-swap for uninterrupted operation
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Power Distribution	- Input: 24V DC ±10% (dual redundant inputs, 1A max per input) - Output: 8× 24V DC isolated channels (0.5A per channel, 3A total)	Redundant design ensures <5ms switchover during power failure
  Signal Conditioning	- Analog signals: Filters 4~20mA/0~10V signals (50Hz/60Hz notch filter, configurable cutoff: 10Hz~1kHz) - Digital signals: Debounce filter (0.1ms~10ms adjustable)	Signal noise reduction: ≥40dB (for 1kHz EMI)
  Communication Support	- Backplane interface: ABB AC800M system bus (100Mbps) - Expansion ports: 2× RS485 (Modbus RTU, for peripheral devices) - Diagnostic port: 1× USB (for local configuration)	Bus latency: ≤1ms (between module and CPU)
  Protection Features	- Overcurrent: 120% of channel rating (latching, auto-reset after 5s) - Overvoltage: 30V DC (clamping) - Short-circuit: Electronic shutdown (<100μs) - Reverse polarity: Protected (no damage)	Prevents damage to connected PLC modules

• Mechanical Specifications:
  • Housing Material: Aluminum alloy (electrostatic coating); Flame-retardant (UL94 V-0)
  • Dimensions (W×H×D): 22mm × 100mm × 160mm (fits AC800M standard I/O racks)
  • Mounting: Rail-mounted in AC800M I/O racks (35mm DIN rail); Hot-swappable (no power shutdown required for replacement)
  • Weight: Approximately 180g
  • LED Indicators:
    • Power (P1/P2): Green (input power active); Red (input fault)
    • Output (CH1~CH8): Green (output normal); Amber (overload)
    • Communication (COM): Green (bus active); Flashing green (data transmission)
    • System (SYS): Green (normal); Red (module fault)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃; suitable for process control rooms)
  • Vibration Resistance: 10~500Hz, 1.5g acceleration (IEC 60068-2-6; no signal loss)
  • Shock Resistance: 20g acceleration (11ms duration, IEC 60068-2-27; maintains backplane connection)
  • Protection Rating: IP20 (front panel; protects against dust and finger contact)
• Compliance Standards: IEC 61131-2 (industrial control equipment), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS, IEC 61508 (SIL 2 capable for safety-related applications)

2. Key Features

• AC800M/800xA Exclusivity: Custom-designed for ABB AC800M PLCs and 800xA DCS systems—seamlessly integrates with the system bus for plug-and-play operation; automatic recognition by Control Builder M software eliminates manual configuration, reducing setup time by 40%.
• Redundant Power Distribution: Dual 24V DC inputs with <5ms switchover ensure uninterrupted power supply to connected modules (e.g., AI810, DI810) during single power source failure—critical for safety-critical processes (e.g., chemical reactor control) where downtime is prohibitive.
• Advanced Signal Conditioning: Integrated 50/60Hz notch filters and adjustable low-pass filters reduce EMI-induced noise in analog/digital signals—improves measurement accuracy of critical process variables (e.g., pressure, temperature) by ≥30% in high-noise environments (e.g., near large motors).
• Hot-Swap Capability: Supports live replacement without system shutdown—minimizes maintenance downtime (typically <5 minutes) for industries requiring 24/7 operation (e.g., oil refineries, continuous production lines).
• Comprehensive Diagnostics: Real-time monitoring of input power, output loads, and communication status via LED indicators and 800xA DCS—enables predictive maintenance (e.g., alerts for aging power components) and reduces troubleshooting time by 50%.
• Compact High-Density Design: 22mm-wide form factor maximizes space efficiency in AC800M I/O racks—accommodates up to 8 power output channels in minimal space, ideal for control cabinets with high module density.
• SIL 2 Compliance: Meets IEC 61508 SIL 2 requirements, making it suitable for safety-related system segments (e.g., emergency shutdown auxiliary circuits)—ensures low failure rates (<100 FIT) for risk mitigation.

3. Application Fields

• AC800M PLC System Expansion: Primary application—auxiliary support for PLC modules:
  • Chemical Process Control: Integrates into AC800M racks controlling reactor systems; distributes redundant power to AI810 analog modules (measuring pH, pressure) and conditions 4~20mA signals to reduce noise from agitator motors, ensuring precise chemical dosing.
  • Pharmaceutical Manufacturing: Supports AC800M-based batch control systems; hot-swap capability allows module replacement during production runs without interrupting critical drug formulation processes—complies with FDA 21 CFR Part 11 for data integrity.
• 800xA DCS Peripheral Integration: Enables connectivity for DCS peripherals:
  • Oil Refinery DCS: Connects to safety relays and HMI panels via RS485 ports; redundant power ensures continuous communication between 800xA operator stations and field sensors (e.g., flow meters in crude oil pipelines).
  • Power Plant Auxiliaries: Supports AC800M modules controlling boiler feedwater systems; signal conditioning filters noise from turbine generators, improving accuracy of water level and flow measurements.
• Safety-Critical Auxiliary Systems: Enhances reliability in safety loops:
  • Nuclear Power Plant Auxiliaries: Provides power and signal support for AC800M safety modules in non-nuclear systems (e.g., cooling water pumps); SIL 2 compliance ensures alignment with safety requirements (e.g., IEEE 37.90).
  • Hazardous Area Control: Integrates into explosion-proof enclosures (with ATEX-certified components) for chemical plant hazardous zones; robust design withstands harsh conditions while maintaining signal integrity.

4. Precautions

• System Compatibility: Use exclusively with ABB AC800M PLCs (PM861/PM864 CPUs) and 800xA DCS systems. Never install in non-ABB PLCs or incompatible ABB systems (e.g., AC500-eCo)—backplane protocol mismatches will cause communication failures and potential damage to connected modules.
• Power Supply Limits: Do not exceed 24V DC ±10% input voltage or 3A total output current—overvoltage (>26.4V) damages internal regulators, while overcurrent (>3A) triggers shutdown, disrupting power to critical modules (e.g., CPU). Use ABB-recommended 24V DC power supplies (e.g., 8PS300).
• Electrical Safety:
  • Power Disconnection: For non-hot-swap maintenance, disconnect both 24V DC input sources before removing the module—exposed backplane pins carry live voltage, posing shock risks. Use lockout/tagout procedures in industrial settings.
  • Grounding Requirements: Connect the module’s protective earth (PE) terminal to the system ground grid (resistance ≤0.5Ω); ensure proper grounding of signal shields to maintain noise filtering effectiveness—poor grounding reduces EMI immunity by 50%.
• Installation & Configuration:
  • Rack Alignment: Ensure proper seating in the AC800M I/O rack (fully engaged with backplane connectors); partial insertion causes intermittent communication or power loss—verify via solid green SYS LED after installation.
  • Filter Settings: Configure signal filters via Control Builder M software based on application (e.g., 10Hz cutoff for slow-changing temperature signals, 1kHz for fast pressure transients)—incorrect settings cause signal lag or insufficient noise reduction.
• Environmental Protection:
  • Temperature & Humidity: Avoid operating above +70℃ or in condensing humidity—high temperatures reduce capacitor lifespan, while condensation causes terminal corrosion, leading to increased contact resistance. Install in air-conditioned control cabinets (20℃~30℃ recommended).
  • EMI Exposure: Mount the module at least 30cm away from high-voltage cables (e.g., 400V motor cables) and VFDs—excessive EMI can overwhelm filters, causing signal distortion (e.g., 4~20mA drift ±5%).
• Maintenance & Replacement:
  • Hot-Swap Procedure: When replacing during operation, pull the module straight out (avoid tilting) and insert the new unit within 30 seconds to prevent backplane pin oxidation—longer intervals may require rack power cycling.
  • Periodic Testing: Annually verify redundant power switchover (simulate input failure) and filter performance (measure signal noise with oscilloscope)—degraded switchover time (>10ms) or noise (>5mVpp) indicates component aging, requiring replacement.
  • Configuration Backup: Save filter and power settings via Control Builder M—factory reset or firmware updates may erase configurations, requiring reconfiguration and potentially disrupting process control

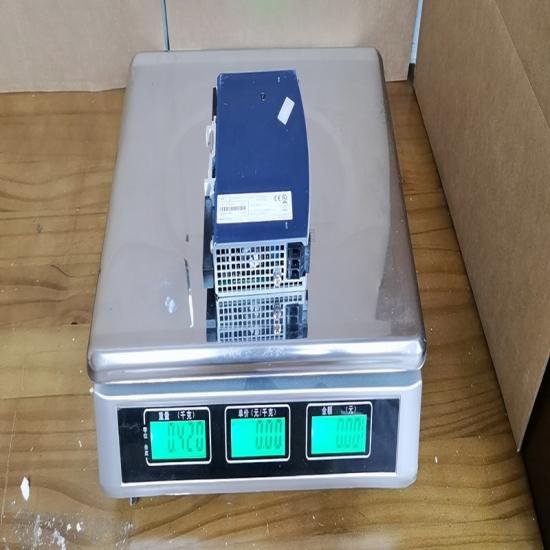

The structure and details of the product：
