Product Overview

The ABB PFCL201C series load cells use Pressductor® technology for industrial strip, sheet, and roll tension measurement, as well as roll load monitoring in rolling mills. The 3BSE027070R20 model has a nominal load of 20 kN and is machined from a single block of stainless steel, offering high overload tolerance, excellent shock resistance, and corrosion and dust protection. Its compact modular design ensures long-term, reliable operation in industrial environments, providing high-precision tension or load data to control systems.

Technical Specifications

• Model: PFCL201C

• Part Number: 3BSE027070R20

• Nominal Load: 20 kN

• Maximum Overload: 200 kN

• Permissible Transverse Load: 10 kN

• Extended Load: approx. 30 kN

• Deflection: 0.02 mm

• Output Signal: 4‑20 mA or standard current output (depending on version)

• Accuracy: 0.25%

• Repeatability: 0.1%

• Material: Machined stainless steel

• Operating Temperature: ‑20 °C to +60 °C (typical)

• Mounting: Four-bolt installation beneath roll bearing housing, vertical measurement direction

Features & Advantages

1. High overload capacity – Withstands several times the nominal load without damage.

2. High precision and repeatability – Provides accurate load measurements for reliable control.

3. Strong noise immunity – Low impedance output resists electromagnetic interference.

4. Durable and rugged – Machined stainless steel body resists industrial shock, vibration, and corrosion.

5. Compact modular design – Easy to install, maintain, and replace.

6. Wide application range – Suitable for various nominal load applications in rolls, sheets, and industrial machinery.

Application Areas

• Strip and sheet tension measurement in metal processing

• Roll load monitoring and control in rolling mills

• Tension control in paper, printing, and packaging industries

• Tension control in textile, dyeing, film, and wire rope processes

• Heavy industry and mining process monitoring

Installation & Operation Notes

1. Always disconnect power before installation or maintenance.

2. Ensure mounting surface is flat and rigid; tighten bolts to specified torque to avoid extra mechanical stress.

3. Use shielded twisted-pair cables for signal lines and keep away from high-power cables to reduce interference.

4. Perform zero calibration before use and periodically recalibrate to maintain accuracy.

5. Avoid extreme temperature, highly corrosive, or high-vibration environments; use industrial-duty version if necessary.

6. Regularly inspect mounting bolts and protection measures to ensure long-term stability.

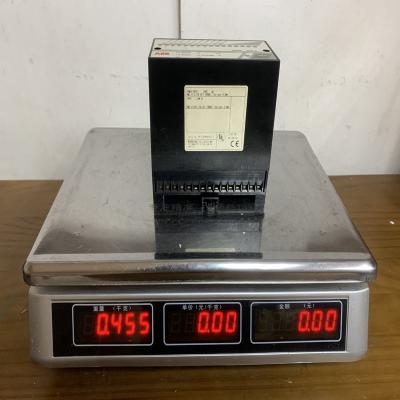

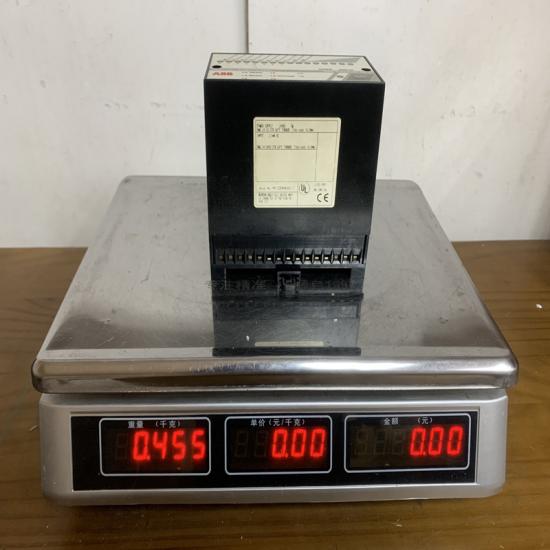

The structure and details of the product：
