ABB MS132-2.5 1SAM350000R1007 Manual Motor Starter

1. Key Parameters

• Product Model: MS132-2.5 (Ordering Part Number: 1SAM350000R1007)
• Product Series: ABB MS132 Series Compact Manual Motor Starters (Low-Power Motor Control & Protection)
• Core Function: Enables manual on/off operation of small AC motors; provides Class 10 thermal overload protection to prevent motor burnout; delivers magnetic short-circuit protection; supports manual reset after tripping; integrates with basic control circuits for status feedback
• Electrical & Protection Specifications:

  Parameter	Details	Performance Metrics
  Motor Compatibility	- Motor Type: Single-phase or three-phase AC induction motors

• Rated Current Range: 0.6A~2.5A (adjustable via current dial)
• Power Rating: Up to 1.1kW (400V, 3-phase); up to 0.55kW (230V, single-phase)
• Voltage Rating: 230V~400V AC (50/60Hz, ±10% tolerance) | Adjustable current range suits small motors (e.g., 0.75kW fan, 0.37kW pump); supports both single/three-phase systems for versatility |
  | Protection Features | - Overload Protection: Class 10 thermal protection (trips within 10s at 6× rated current)
• Short-Circuit Protection: Magnetic tripping (10×~14× rated current, instantaneous)
• Reset Type: Manual reset (prevents automatic restart after faults)
• Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) (2A, 250V AC) | Class 10 protection matches small motor thermal characteristics; magnetic tripping safeguards against wire insulation failure |
• Mechanical & Operational Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 22.5mm (W) × 85mm (H) × 65mm (D)

• Mounting Type: 35mm DIN rail (EN 50022)
• Housing Material: Flame-retardant thermoplastic (UL 94 V0)
• Operating Mechanism: Toggle switch (on/off/reset positions)
• Weight: Approximately 60g | Ultra-narrow 22.5mm width enables dense mounting (up to 17 units per meter of DIN rail); compact size fits in mini control cabinets |
  | Environmental Ratings | - Operating Temperature Range: -25℃~+60℃ (-13℉~140℉)
• Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
• Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
• Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6)
• Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)
• EMC Compliance: EN 61000-6-2 (immunity: Level 2) | Wide temperature range suits indoor commercial/residential environments; vibration tolerance prevents accidental tripping near small machinery |
• Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 60947-4-1, RoHS |

2. Core Features

• Ultra-Compact Design: 22.5mm width (1/5 the size of standard starters)—fits in space-constrained locations (e.g., mini control panels for laboratory equipment, under-counter appliance enclosures) and enables dense DIN rail mounting, saving cabinet space.
• All-in-One Functionality: Combines manual control, Class 10 overload protection, and magnetic short-circuit protection—eliminates the need for separate circuit breakers and overload relays, reducing system cost and complexity for small motor applications.
• Adjustable Current Range: 0.6A~2.5A dial-adjustable rated current—accommodates multiple small motor sizes (e.g., 0.6A for 0.25kW pumps, 2.5A for 1.1kW fans), simplifying inventory for facilities with diverse low-power machinery.
• Manual Reset Safety: Requires manual intervention after tripping—prevents automatic restart of motors after faults (e.g., fan jams, pump blockages), enhancing operator safety and avoiding unexpected equipment activation in residential/commercial settings.
• Built-In Auxiliary Contacts: 1NO+1NC contacts (2A, 250V AC)—enable basic status feedback (e.g., "motor running" LEDs) or interlock control (e.g., stopping a pump if a tank is empty) without additional modules, supporting simple control logic.
• Flame-Retardant Housing: UL 94 V0 thermoplastic—meets strict fire safety standards for electrical enclosures, critical for residential (e.g., household pumps) and commercial (e.g., office HVAC) applications where fire risk must be minimized.
• Easy Installation: Tool-less DIN rail mounting and push-in wire terminals—enables fast setup (3 minutes per unit) by electricians or maintenance staff, reducing installation time for small motor systems (e.g., retail display coolers).

3. Application Fields

• Commercial & Residential Appliances: Small motor control:
  • HVAC Auxiliaries: Controls small fan motors (e.g., 0.37kW bathroom exhaust fans, 0.75kW air purifiers)—compact size fits in wall-mounted fan enclosures; manual reset prevents restart after power outages.
  • Household Pumps: Manages 0.25kW~0.55kW water circulation pumps (e.g., boiler circulators, aquarium pumps)—adjustable current range fits diverse pump models; flame-retardant housing meets residential electrical safety standards.
• Light Industrial & Laboratory Equipment: Precision small-motor control:
  • Laboratory Machinery: Controls 0.55kW~1.1kW motors for centrifuges, stirrers, and small mixers—narrow width fits in bench-top equipment enclosures; auxiliary contacts trigger "equipment on" indicators for lab safety.
  • Printing & Packaging Auxiliaries: Manages 0.75kW~1.1kW motors for label dispensers and small conveyor belts—EMC immunity resists interference from nearby printers; vibration tolerance ensures reliable operation in busy workshops.
• Retail & Office Equipment: Light-duty motor management:
  • Retail Display Coolers: Controls 0.37kW~0.55kW compressor fans—manual reset avoids automatic restart after cleaning cycles; compact size fits in under-counter cooler control panels.
  • Office Equipment: Manages 0.25kW~0.37kW motors for shredders, laminators, and small air conditioners—adjustable current range matches equipment power ratings; flame-retardant housing enhances office safety.
• Agriculture & Hobby Applications: Small-scale motor control:
  • Hydroponic Systems: Controls 0.25kW~0.55kW water pumps and air blowers—wide humidity tolerance (5%~95% RH) suits damp growing environments; manual reset prevents pump restart after nutrient line clogs.
  • Hobby Workshops: Manages 0.55kW~1.1kW motors for small drills, sanders, and lathes—easy toggle operation simplifies use for hobbyists; DIN rail mounting fits in workshop utility panels.

4. Precautions

• Motor Compatibility (Critical): Ensure motor power/current matches the starter’s range (0.6A~2.5A, up to 1.1kW/400V)—overloading causes frequent tripping or starter damage; use ABB’s motor-starter sizing tool to verify (refer to the motor nameplate for rated current, not full-load current). Do not use for DC motors (AC-only design).
• Installation & Wiring Safety:
  • Current Setting: Adjust the current dial to exactly match the motor’s rated current—setting too high bypasses overload protection (risks motor burnout); setting too low causes nuisance tripping (e.g., during motor startup).
  • Wiring Terminals: Use push-in terminals for 0.5mm²~2.5mm² copper conductors—ensure wires are stripped to 8mm length (no exposed conductors); torque screw terminals (if used) to 0.5Nm to prevent loose connections and overheating.
  • Grounding: Connect the starter’s PE terminal to a dedicated protective ground (resistance ≤1Ω)—ungrounded installations increase electric shock risk; do not share the ground with non-motor equipment (e.g., lighting, outlets).
• Operation & Maintenance:
  • Reset Procedure: After tripping, first identify and fix the fault (e.g., clear a blocked pump, reduce motor load) before resetting—resetting without resolving the issue damages the motor or starter; allow the starter to cool for 3 minutes after thermal tripping.
  •

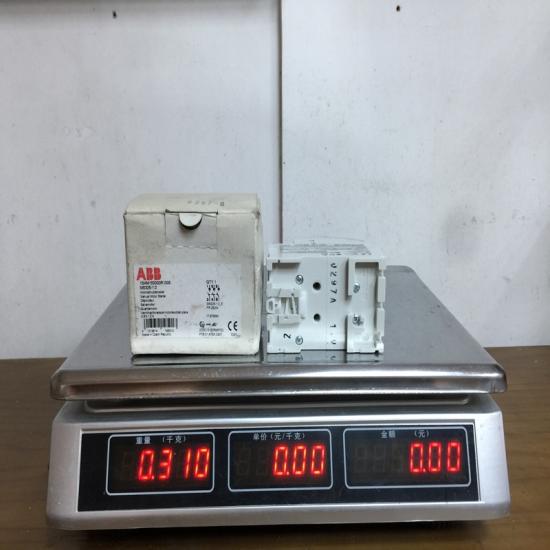

The structure and details of the product：
