ABB MB801V512 (Order Code: 3BSE042257R1) Compact Flash Card

1. Key Parameters

• Product Model: MB801V512
• Order Code/Part Number: 3BSE042257R1 (unique identifier for procurement and AC 800M compatibility verification)
• Product Type: Industrial-grade Compact Flash (CF) card (Type I form factor)
• Core Function: Non-volatile storage for AC 800M DCS data (control programs, configurations, firmware, logs); enables system boot and data backup/restore
• Storage Specifications:
  • Capacity: 512MB (industrial-grade NAND flash memory; SLC—Single-Level Cell—for high durability)
  • Memory Type: SLC NAND flash (superior to consumer-grade MLC/TLC for longer lifespan and faster write speeds)
  • Interface: Compact Flash Type I (compatible with AC 800M processor CF slots)
  • Data Transfer Speed:
    • Read Speed: Up to 15MB/s (sustained)
    • Write Speed: Up to 10MB/s (sustained)
  • Access Time: ≤15ms (random read/write; critical for fast system boot)
  • Lifespan: ≥1,000,000 program/erase (P/E) cycles (SLC technology; supports long-term industrial use)
  • Data Retention: ≥10 years (at 25℃; retains data without power for a decade)
• Mechanical Specifications:
  • Form Factor: Compact Flash Type I (43mm × 36mm × 3.3mm; fits standard AC 800M CF slots)
  • Connector: 50-pin CF Type I connector (gold-plated for corrosion resistance and reliable contact)
  • Weight: Approximately 8g
  • Material:
    • Housing: Flame-retardant plastic (UL94 V-0; resistant to industrial impact and chemical exposure)
    • Connector Pins: Gold-plated copper alloy (low contact resistance, anti-oxidation)
• Environmental Ratings:
  • Operating Temperature Range: -40℃~+85℃ (-40℉~185℉) (wide range for harsh industrial environments)
  • Storage Temperature Range: -55℃~+95℃ (-67℉~203℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 20g acceleration (IEC 60068-2-6; no data corruption or physical damage)
  • Shock Resistance: 1500g acceleration (0.5ms duration, IEC 60068-2-29; withstands industrial drops/impacts)
  • Waterproof/Dustproof: IP54-rated (resists dust ingress and splashing water)
• Compliance Standards: CE (EU safety), RoHS (restriction of hazardous substances), JEDEC JESD21-C (flash memory reliability), IEC 60068-2 (environmental testing)

2. Key Features

• Industrial-Grade SLC NAND Flash: Uses SLC technology (vs. consumer-grade MLC/TLC) to deliver ≥1,000,000 P/E cycles and 10+ years of data retention—critical for AC 800M systems operating 24/7, where frequent write operations (e.g., fault logging) would degrade consumer CF cards.
• Seamless AC 800M Integration: Optimized for AC 800M processors (PM-series), with pre-validated compatibility for system boot, program storage, and configuration backup. No additional drivers or formatting tools are required—plug-and-play for fast deployment.
• Wide Temperature & Environmental Durability: Operates from -40℃~+85℃ and withstands extreme vibration (20g) and shock (1500g), making it reliable in harsh industrial settings (e.g., oil refineries, mining sites, outdoor substations) where consumer CF cards fail.
• Fast Data Transfer & Boot Speed: Sustained read speeds up to 15MB/s and write speeds up to 10MB/s enable quick AC 800M system boot (≤30 seconds) and fast program loading—minimizing downtime during system restarts or firmware updates.
• Flame-Retardant & Corrosion-Resistant Design: UL94 V-0 flame-retardant housing reduces fire risk in control cabinets, while gold-plated connectors resist corrosion from industrial humidity or chemical exposure—ensuring long-term contact reliability.
• IP54 Ingress Protection: Dustproof and splashproof design protects the card from debris and accidental water exposure (e.g., cleaning in control rooms), preventing physical damage and data loss.
• RoHS Compliance: Free of hazardous substances (lead, mercury, cadmium) to meet global environmental regulations—suitable for eco-sensitive industries (e.g., pharmaceuticals, food processing) and green building projects.

3. Application Fields

• AC 800M DCS System Boot & Storage: Primary application—serves as the boot medium for AC 800M processors (e.g., PM860AK01, PM864AK02) and stores control programs, I/O configurations, and system firmware in chemical, petrochemical, and power plants.
• Industrial Automation Data Logging: Stores fault logs, process data, and event records from AC 800M systems—enabling post-incident analysis (e.g., identifying the root cause of a process shutdown) in manufacturing facilities.
• Firmware & Software Updates: Used to load firmware updates for AC 800M modules (e.g., CI867K01 TCP interface, SB821 battery unit) and install new versions of ABB’s Control Builder M software—simplifying system maintenance.
• System Backup & Recovery: Creates redundant backups of critical AC 800M configurations (e.g., PID loop settings, I/O mappings) for fast recovery after hardware failures or data corruption—reducing downtime in mission-critical processes.
• Oil & Gas Offshore Platforms: Withstands salt spray, extreme temperatures (-40℃~+85℃), and vibration to store control data for AC 800M systems on offshore drilling rigs—ensuring reliable operation in harsh marine environments.
• Mining & Metals Operations: Resists dust, shock, and temperature fluctuations to store process control data for AC 800M-based crusher, conveyor, and smelter systems—supporting continuous resource extraction and processing.
• Power Generation (Renewable & Thermal): Stores inverter control programs and grid integration configurations for AC 800M systems in solar/wind farms and thermal power plants—ensuring stable energy production and grid compliance.

4. Precautions

• AC 800M Compatibility Check: Use exclusively with ABB AC 800M processors and compatible equipment. Inserting the card into non-AC 800M devices (e.g., consumer cameras, legacy PLCs) may corrupt data or damage the card’s industrial firmware.
• Proper Handling & Insertion:
  • Avoid touching the gold-plated connector pins—finger oils cause corrosion and poor contact.
  • Insert/remove the card only when the AC 800M processor is powered off. Hot-swapping (removing while powered) corrupts data or damages the card/processor slot.
• Data Backup Protocol: Regularly back up the card’s contents to a secure server or secondary industrial CF card. SLC flash has a finite lifespan—replace the card every 5~7 years (or after 80% of P/E cycles are used) to prevent unexpected data loss.
• Environmental Protection:
  • Do not expose the card to temperatures beyond -40℃~+85℃ or submerge it in water (IP54 only resists splashes).
  • Store unused cards in an anti-static bag (provided with purchase) to protect against electrostatic discharge (ESD), which damages NAND flash cells.
• ESD Safety: Wear an ESD wristband when handling the card—industrial environments generate static electricity that can corrupt data or destroy the card’s internal circuitry.
• Formatting Guidelines: Format the card only via ABB’s Control Builder M software (using AC 800M-compatible file systems). Consumer formatting tools (e.g., Windows Disk Management) use incompatible file systems, rendering the card unrecognizable by the AC 800M.
• Fault Handling: If the AC 800M fails to boot from the card:
  • Check for physical damage (e.g., bent connector pins, cracked housing) and replace if damaged.
  • Use a secondary backup card to restore data. If the backup also fails, verify the processor slot for debris or damage (clean with compressed air if needed)
•

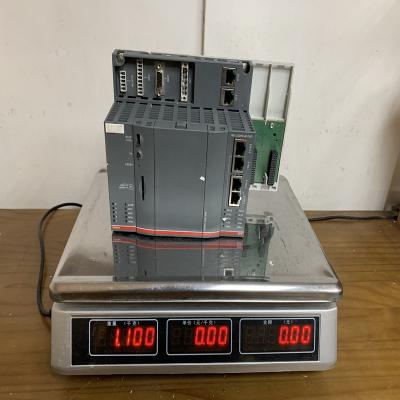

The structure and details of the product：
