ABB IIMCP01 Digital Input Module

1. Key Parameters

• Product Model: IIMCP01
• Order Code Reference: Typically paired with ABB AC800M accessories (e.g., 3BSE008515R1 PROFIBUS DP cable, 3BSE003655R1 terminal block kit, 3BSE004121R1 power redundancy module)
• Product Series: ABB AC800M Distributed I/O Modules (PROFIBUS DP, High-Density Digital Input)
• Core Function: Acquires discrete digital signals from field devices; converts physical on/off states to digital data; transmits real-time status to AC800M master via PROFIBUS DP; provides diagnostic alerts (e.g., wire break, overvoltage); supports high-speed event detection for industrial automation
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Input Channels	16 independent digital input channels (isolated per channel)	High channel density reduces DIN rail space by 40% vs. 8-channel modules
  Input Signal Type	Dry contact (passive) or 24V DC active signals; Input voltage range: 15~30V DC (ON state); <5V DC (OFF state)	Compatible with most industrial digital sensors (proximity switches, limit switches)
  Response Time	≤1ms (10%~90% transition for ON/OFF state); Configurable filter: 0.1ms~100ms (via Control Builder M)	Captures high-speed events (e.g., conveyor jam detection, part presence)
  Input Current	3mA~10mA (ON state); <1mA (OFF state)	Low current consumption reduces load on field power supplies
  Communication Protocol	PROFIBUS DP V1 (slave mode); Baud rate: 9.6kbps~12Mbps (auto-negotiation with master) - Cycle time: ≤0.5ms (for 16 channels)	Fast data transmission for real-time event response
  Power Supply	24V DC ±10% (single input; redundant input optional via accessory); Current consumption: ≤50mA (no load); ≤120mA (full load)	Compatible with standard industrial 24V DC power systems
  Isolation Level	- Channel-to-channel: 500Vrms (1min dielectric test) - Input-to-bus/power: 2kVrms (1min dielectric test)	Prevents ground loops and cross-channel interference
  Protection Features	- Reverse polarity protection: No damage from reversed 24V DC wiring - Overvoltage protection: Up to 35V DC (surge tolerance) - Wire break detection: <3mA current (triggers diagnostic alert)	Safeguards module and field devices from electrical faults

• Mechanical Specifications:
  • Housing Material: Flame-retardant thermoplastic (UL94 V-0); Impact resistance: IK04
  • Dimensions (W×H×D): 22mm × 100mm × 160mm (compact design for dense DIN rail installations)
  • Mounting: 35mm standard DIN rail (TS 35/7.5); Snap-on installation (no tools required)
  • Weight: Approximately 150g
  • Terminals: 2× 20-pin spring-cage terminals (for input wiring); 1× 9-pin D-sub connector (PROFIBUS DP)
  • LED Indicators:
    • Power (PWR): Green (24V DC active); Red (power fault)
    • Bus (BUS): Green (PROFIBUS DP normal); Flashing green (data transmission); Red (bus fault)
    • Input Channels (CH1~CH16): Green (input ON/active); Off (input OFF/inactive)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+60℃ (-13℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃; suitable for damp industrial areas)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no false triggers)
  • Shock Resistance: 15g acceleration (11ms duration, IEC 60068-2-27; maintains signal integrity)
  • EMC Immunity: Complies with IEC 61000-4-2 (ESD: ±8kV contact); IEC 61000-4-4 (EFT: ±2kV); IEC 61000-4-6 (RS: 10V/m) | Resists noise from motors/VFDs |
• Compliance Standards: IEC 61131-2 (industrial control equipment), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS, IEC 61508 (SIL 1 capable for safety-related inputs)

2. Key Features

• High-Density 16-Channel Design: 16 isolated digital inputs in a 22mm-wide module maximize DIN rail space efficiency—ideal for applications with numerous discrete sensors (e.g., 16 limit switches on an assembly line) without requiring multiple 8-channel modules, reducing installation cost by 30%.
• AC800M PROFIBUS DP Integration: Exclusively engineered for ABB AC800M PLCs—seamlessly connects via PROFIBUS DP V1; Control Builder M software automatically detects the module and maps input registers, eliminating manual configuration and cutting setup time by 50%.
• Ultra-Fast Response Time: ≤1ms transition detection captures high-speed events (e.g., part jams on high-speed conveyors, emergency stop button presses)—ensures timely intervention to prevent equipment damage or production losses.
• Configurable Input Filter: Adjustable 0.1ms~100ms filter suppresses noise-induced false triggers (e.g., EMI from nearby motors causing momentary voltage spikes)—avoids erroneous machine stops in electrically harsh environments.
• Comprehensive Diagnostics: Real-time wire break detection and overvoltage alerts via LEDs and AC800M DCS—enables quick troubleshooting (e.g., identifying a broken proximity switch cable in minutes), minimizing unplanned downtime.
• Robust Isolation & Protection: 2kVrms isolation between inputs and bus/power, plus reverse polarity/overvoltage protection, safeguards the module and field devices—ensures reliable operation in environments with ground loops or voltage fluctuations.
• SIL 1 Safety Compliance: Meets IEC 61508 SIL 1 requirements for safety-related inputs (e.g., machine guard interlocks)—provides basic fault mitigation for low-risk safety loops, aligning with industrial safety standards (e.g., ISO 13849-1).

3. Application Fields

• Industrial Manufacturing Lines: Primary application—discrete event detection for production processes:
  • Automotive Assembly Lines: Acquires signals from 16 proximity switches (part presence on conveyor stations), limit switches (robot arm position), and pushbuttons (operator call); fast response time (≤1ms) ensures immediate robot stops for part misalignment, preventing collisions.
  • Packaging Machinery: Detects signals from photoelectric sensors (package alignment), microswitches (sealing jaw position), and emergency stop buttons; configurable filters suppress noise from packaging motors, avoiding false machine shutdowns.
• Material Handling Systems: Discrete input for logistics equipment:
  • Conveyor Networks: Monitors 16 limit switches (conveyor section end stops), photoeyes (package detection), and encoder zero marks (position reference); high channel density reduces control cabinet size for multi-section conveyors in warehouses.
  • Automated Guided Vehicles (AGVs): Acquires signals from obstacle sensors (laser scanners), magnetic tape detectors (path following), and battery level switches; compact design fits AGV control panels, while vibration resistance prevents false triggers during movement.
• Machine Tools & Metalworking: Discrete input for machining processes:
  • CNC Machining Centers: Detects signals from tool change position switches, door interlock switches, and coolant level sensors; fast response ensures immediate spindle stops if the door is opened mid-cycle, complying with safety standards.
  • Press Machines: Monitors signals from ram position switches, two-hand control buttons, and overload detectors; wire break detection alerts to faulty two-hand button wiring, preventing unsafe operation.
• Process Industry Skids: Discrete input for modular process equipment:
  • Chemical Mixing Skids: Acquires signals from valve position switches (open/closed status), level switches (tank high/low level), and pump running contacts; diagnostic data identifies broken level switch wires, preventing tank overflow.
  • Water Treatment Skids: Detects signals from filter clog switches, valve end switches, and flow switches; high humidity tolerance (≤95% RH) withstands damp skid environments, ensuring reliable status monitoring.

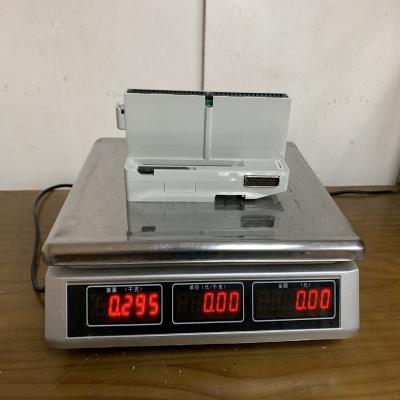

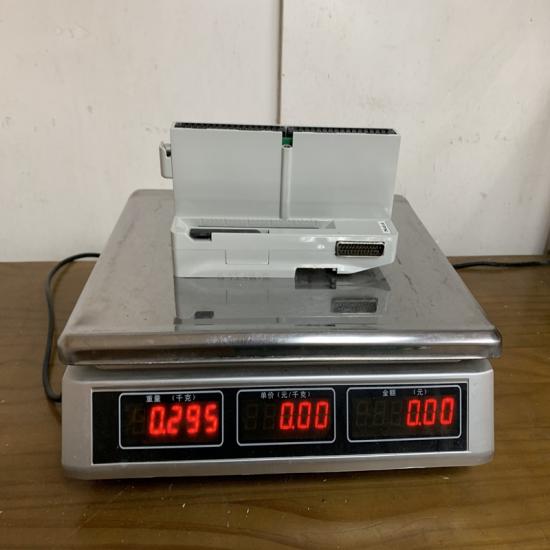

The structure and details of the product：
