ABB DSTX-150 Servo Drive Module

Product Description

Key Specs

• System Compatibility:
  ABB AC500 PLC series (with motion control option, e.g., PM590) and S100 I/O systems; connects to the control system via a proprietary 64-bit motion bus (for real-time command transmission) and to the motor via power terminals/encoder interface; compatible with ABB MotionWorks IEC software (v5.0+) for motion program development (IEC 61131-3 compliant).
• Power & Motor Ratings:

  Parameter	Specification
  Input Voltage	Single-phase 230V AC (180-264V AC) or three-phase 400V AC (320-480V AC) — configurable via DIP switch
  Continuous Output Current	5A RMS (230V AC input); 3A RMS (400V AC input)
  Peak Output Current	15A RMS (10s duration, for dynamic load spikes)
  Motor Compatibility	PMSM/BLDC motors (rated voltage: 230V AC/400V AC; rated power: up to 2.2kW)
  Encoder Interface	1× incremental encoder (TTL/RS422, up to 1MHz); 1× absolute encoder (SSI, up to 500kHz) — for position feedback

• Motion Control Performance:
  • Control Modes: Position control (absolute/relative), speed control (open/closed-loop), torque control (current mode); seamless mode switching (≤1ms).
  • Positioning Accuracy: ±1 encoder count (with 17-bit absolute encoder, equivalent to ±0.001° for a 360° motor shaft).
  • Speed Regulation: ≤0.01% (closed-loop, at rated speed); speed range: 0.1-6000 RPM.
  • Dynamic Response: Torque rise time ≤1ms; speed step response ≤5ms (for 0-1000 RPM step).
• Electrical & Protection Features:
  • Protection: Overcurrent (short-circuit), overvoltage (DC bus), undervoltage, overtemperature (IGBT module), motor overload, encoder fault detection.
  • DC Bus Voltage: 325V DC (230V AC input); 560V DC (400V AC input); built-in brake chopper (for regenerative energy dissipation).
  • Isolation: Power stage to control circuit — 4kV AC (1min); encoder interface to control circuit — 2.5kV AC (1min).
• Mechanical & Environmental:
  • Dimensions (W×H×D): 80mm×160mm×140mm (DIN rail-mountable, compact for cabinet integration); weight ~1.5kg.
  • Protection Degree: IP20 (mounted inside control cabinets).
  • Operating Conditions: 0°C~+50°C, 5%-95% RH (non-condensing); vibration resistance: 10-500Hz (1g acceleration); shock resistance: 20g (11ms half-sine).

Core Functions

1. High-Precision Motion Control
   • Executes multi-mode motion logic to meet diverse application needs:
     • Position Control: Supports absolute positioning (via SSI absolute encoder) for tasks like CNC axis positioning (e.g., "move to X=100.5mm") and relative positioning (e.g., "move 50mm forward") for robotic pick-and-place. The module corrects position 偏差 in real time using encoder feedback, ensuring ±1 count accuracy.
     • Speed Control: Maintains stable motor speed (≤0.01% regulation) for applications like packaging machine conveyors or printing rollers—compensates for load variations (e.g., changing product weight on a conveyor) via closed-loop feedback.
     • Torque Control: Regulates motor torque (current mode) for tasks like tension control in film winding machines—adjusts torque dynamically to keep film tension constant (e.g., 5N·m) as roll diameter increases.
2. Real-Time Feedback & Synchronization
   • Integrates encoder feedback to optimize motion performance:
     • Encoder Signal Processing: Decodes incremental/absolute encoder signals (up to 1MHz) to calculate motor position, speed, and direction—filters noise (via 1μs digital filters) to eliminate false counts from EMI (e.g., nearby inverters in CNC machines).
     • Multi-Axis Synchronization: Communicates with AC500 PLC via the 64-bit motion bus (1ms update rate) to synchronize multiple DSTX-150 modules (e.g., 3 axes in a robotic arm or 2 axes in a gantry system)—ensures coordinated motion (e.g., linear interpolation for smooth path following).
3. Regenerative Energy Management & Protection
   • Handles energy flow and system faults to ensure safety and efficiency:
     • Brake Chopper: Dissipates regenerative energy (e.g., when a motor decelerates quickly) as heat via an external brake resistor—prevents DC bus overvoltage and protects IGBT modules (critical for high-cycle applications like robotic sorting).
     • Comprehensive Fault Protection: Detects faults such as motor short circuits (output current >15A), IGBT overtemperature (>85°C), and encoder signal loss—triggers an immediate shutdown (≤1ms) and sends fault codes (e.g., "F12: Encoder Loss") to the PLC for diagnostics.
4. Seamless PLC Integration & Programming
   • Works with ABB MotionWorks IEC to simplify motion system development:
     • IEC 61131-3 Programming: Motion logic (e.g., position profiles, speed ramps) is programmed using standard function blocks (e.g., "MC_MoveAbsolute", "MC_SetSpeed")—no proprietary code required, reducing development time.
     • Parameter Configuration: Adjusts drive parameters (e.g., torque limits, acceleration time, encoder resolution) via MotionWorks IEC or the module’s built-in keypad—supports parameter backup/restore to USB for quick replication across multiple drives.

Core Advantages

1. High Dynamic Performance
   Torque rise time ≤1ms and speed step response ≤5ms enable fast, precise motion (e.g., robotic arm pick-and-place cycles <1s)—outperforming entry-level servo drives (typically 5-10ms response time).
2. Flexible Power & Motor Compatibility
   Configurable 230V/400V AC input and support for PMSM/BLDC motors (up to 2.2kW) adapt to diverse applications (e.g., 230V for small packaging machines, 400V for large CNC axes)—eliminating the need for multiple drive models.
3. Robust Industrial Design
   4kV power isolation, wide temperature range (0°C~+50°C), and vibration resistance ensure reliability in harsh environments (e.g., CNC machine shops with metal dust, food packaging plants with washdowns)—minimizing unplanned downtime.
4. Cost-Effective Integration
   DIN rail mounting and compact size reduce cabinet space requirements; seamless integration with AC500 PLCs and S100 I/O eliminates external motion controllers, lowering system cost by 30% vs. third-party servo solutions.

Applications

1. CNC Machining Centers
   • Controls the X/Y/Z axes of a 3-axis CNC mill (PMSM motors, 1.5kW each): Uses absolute encoders for ±0.001mm positioning accuracy; the PLC coordinates 3 DSTX-150 modules via the motion bus to execute linear/circular interpolation (e.g., cutting complex metal parts). Brake choppers handle regenerative energy during rapid axis deceleration.
2. Robotic Pick-and-Place Systems
   • Drives the 4 axes of a small industrial robot (BLDC motors, 0.75kW each): Executes relative positioning (e.g., "move gripper 100mm down") with 1ms mode switching between position and torque control (torque mode for gentle part gripping). Encoder feedback ensures precise part placement (±0.1mm) on a conveyor.
3. Packaging Machine Conveyors
   • Regulates the speed of a packaging line conveyor (PMSM motor, 2.2kW): Maintains 50m/min speed with ≤0.01% regulation, even as product weight varies (e.g., empty vs. full boxes). The PLC adjusts speed via the motion bus to synchronize with upstream/downstream machines (e.g., filling stations).
4. Printing Press Tension Control
   • Controls the film winding axis of a flexographic printer (PMSM motor, 1.1kW): Operates in torque mode to maintain constant film tension (3N·m) as roll diameter increases from 100mm to 500mm. The module adjusts torque dynamically based on encoder speed feedback, preventing film stretching or tearing.

Precautions

1. Compatibility Check
   • Confirm use with ABB AC500 PLCs (with motion control option) or S100 I/O systems—incompatible with non-ABB PLCs (e.g., Siemens S7) due to proprietary motion bus protocols. Verify MotionWorks IEC is v5.0+ to access advanced function blocks (e.g., "MC_Interpolate").
2. Power Wiring Safety
   • Use copper cables rated for ≥10A (230V input) or ≥6A (400V input) for power terminals; torque terminals to 2.0-2.5N·m (loose connections cause overheating).
   • Install a dedicated circuit breaker (10A for 230V, 6A for 400V) upstream of the drive—never share the circuit with other high-current devices (e.g., heaters).
   • Discharge the DC bus capacitors (wait ≥5 minutes after power-off) before servicing—residual voltage (up to 560V DC) can cause fatal electric shock.
3. Encoder Installation
   • Align the encoder shaft with the motor shaft (concentricity ≤0.1mm) to avoid signal distortion—misalignment causes position errors or encoder fault codes.
   • Use shielded twisted-pair cables for encoder wiring; ground the shield at the drive end (not both ends) to suppress EMI. Keep encoder cables ≥10cm away from power cables to prevent interference.
4. Parameter Tuning
   • Perform motor auto-tuning via MotionWorks IEC before commissioning—this calibrates motor parameters (e.g., stator resistance, back EMF) for optimal dynamic performance. Skipping auto-tuning leads to slow response or motor overheating.
   • Set torque/speed limits to match the motor’s rated values (e.g., 5A RMS continuous current for a 1.5kW motor)—exceeding limits triggers overload faults and shortens motor lifespan.
5. Environmental Protection
   • Operate within 0°C~+50°C—temperatures above 50°C reduce IGBT lifespan; below 0°C, the DC bus capacitor performance degrades, leading to startup failures.
   • Install the drive in a well-ventilated cabinet (airflow ≥0.5m/s) or use a heatsink for high-load applications (e.g., continuous torque control)—overheating is the leading cause of drive failure.
6. Genuine Replacement
   • Use only ABB-genuine DSTX-150 modules—counterfeit units often have substandard IGBTs and inadequate protection, leading to catastrophic failures (e.g., short circuits) or motion inaccuracies (e.g., axis drift in CNC machines)
7.

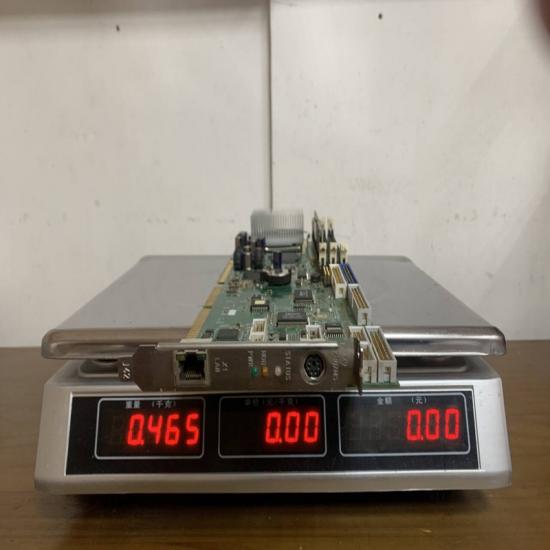

1. The structure and details of the product：
