ABB DSTDN001 Digital Input Board Connection Unit

1. Key Parameters

• Product Model: DSTDN001
• Product Series: ABB AC500 Series Industrial Digital Input Connection Units (Specialized Input Signal Management)
• Core Function: Provides 16-channel dedicated digital inputs (dry contact/NPN/PNP compatible); supports 24V DC signal acquisition for low-level digital sensors; integrates passive noise filtering and per-channel ESD/overvoltage protection; enables batch wiring diagnostics via status LEDs; supports DIN rail mounting or AC500 backplane integration; ensures noise-immune signal transmission between field sensors and AC500 digital I/O modules
• Electrical & Signal Specifications:

  Parameter	Details	Performance Metrics
  Input Signal Compatibility	- Channel Count: 16 independent digital input channels (dedicated) - Supported Sensor Types: Dry contact, NPN open-collector (sinking), PNP open-collector (sourcing) - Input Voltage Range: 18V DC~30V DC (24V DC nominal) - Input Impedance: 2kΩ (24V DC, for NPN/PNP); 10kΩ (dry contact) - Signal Detection Threshold: ≤5V DC (low); ≥15V DC (high) - Response Time: <1ms (signal transition from low to high/high to low)	16-channel dedicated input design consolidates wiring for sensor-dense systems (e.g., 8 proximity sensors + 6 limit switches + 2 safety interlocks); broad input compatibility eliminates the need for sensor-specific adapters; <1ms response time supports fast-paced applications (e.g., conveyor part counting, high-speed sorting)
  Signal Protection & Filtering	- ESD Protection: 10kV contact discharge / 15kV air discharge (IEC 61000-4-2) per channel - Overvoltage Protection: 36V DC clamp (transient suppression diode) per channel - Noise Filtering: Passive RC low-pass filter (1kHz cutoff) + 50Hz/60Hz notch filter - Reverse Polarity Protection: Diode-based (power input and signal channels, ≤24V DC)	10kV ESD protection safeguards against static discharge during sensor installation/maintenance (a common cause of input signal corruption); RC filters reduce electrical noise from industrial sources (VFDs, motors) by 60%~70%; overvoltage clamp withstands transient spikes from faulty power supplies

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 90mm (W) × 75mm (H) × 18mm (D) - Mounting Type: 2 options (1) DIN rail mount (via optional DST-MNT adapter); (2) AC500 backplane mount (compatible with DSPC/DSQC micro racks) - Housing Material: Flame-retardant FR4 circuit board (UL 94 V0) + thin conformal coating (IPC-CC-830, Class 2) - Weight: Approximately 50g - Indicators: 16× channel status LEDs (green = input active; off = input low); 1× power LED (green = 24V DC present); 1× fault LED (red = overvoltage/ESD fault)	Ultra-compact form factor (18mm thickness) fits in dense AC500 cabinets or small wall-mounted enclosures; Class 2 conformal coating resists dust and non-corrosive moisture, extending service life in general industrial environments; LED per channel enables at-a-glance verification of sensor status
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27) - EMC Compliance: EN 61000-6-2 (immunity: Level 3); EN 61000-6-3 (emission: Class B)	-25℃~+70℃ range suits unconditioned industrial spaces (e.g., factory floors, outdoor utility boxes); vibration resistance prevents solder joint loosening in high-motion environments (e.g., near conveyors); Level 3 EMC immunity avoids interference from industrial equipment (e.g., small motors, pumps)

• Protection & Compliance Specifications:

  Parameter	Details	Performance Metrics
  Protection Features	- Short-Circuit Protection: Current limiting (≤100mA per input channel) - Power Supply Protection: 1A slow-blow fuse (main power input) + reverse polarity diode - Overcurrent Protection: Passive current limiting (prevents damage from accidental shorted inputs)	Current limiting protects AC500 digital I/O modules from shorted sensor wires (e.g., frayed proximity sensor cables); main power fuse safeguards the unit from catastrophic damage during power anomalies; reverse polarity protection avoids burnout from incorrect power wiring
  Compliance Standards: CE, UL 508, CSA C22.2 No.14, IEC 61131-2 (industrial control), IEC 61000-6-2 (EMC), RoHS 2.0, ISO 9001

2. Core Features

• 16-Channel Dedicated Digital Inputs: Focused on input signal management—consolidates wiring for 16 low-level digital sensors (e.g., proximity switches, limit switches) into a single compact unit; eliminates scattered discrete terminal blocks, reducing cabinet clutter and wiring time by 40% vs. traditional setups.
• Broad Sensor Compatibility (Dry Contact/NPN/PNP): Supports all common industrial digital input sensor types—avoids the need for separate connection units for NPN vs. PNP sensors; ideal for retrofitting legacy systems with mixed sensor types (e.g., old NPN limit switches + new PNP proximity sensors).
• Industrial-Grade Signal Protection: 10kV ESD + 36V overvoltage + short-circuit safeguards—comprehensive protection for AC500 digital I/O modules against common field faults (static discharge, transient spikes, shorted sensors); ensures uninterrupted operation in harsh environments where low-grade units fail.
• Noise Suppression for Clean Signals: Passive RC filtering + 50Hz/60Hz notch filter—reduces electrical noise from nearby industrial equipment (VFDs, motors) and line-frequency interference; critical for avoiding false input triggers (e.g., spurious "part detected" signals from proximity sensors in noisy workshops).
• Compact & Flexible Mounting: DIN rail (via adapter) or AC500 backplane mount—adapts to diverse cabinet layouts (e.g., standalone sensor panels or integrated AC500 systems); 90×75×18mm form factor saves 75% space vs. standard input modules, ideal for space-constrained applications (e.g., building automation wall panels).
• Intuitive Sensor Status Monitoring: 16 individual channel LEDs + power/fault indicators—technicians can quickly verify sensor activity (green LED = active) and identify faults (red LED = overvoltage) without disconnecting wiring or using multimeters; reduces troubleshooting time from hours to minutes in sensor-dense systems.
• Seamless AC500 Integration: Plug-and-play compatibility with ABB AC500 digital I/O modules (e.g., DSMB178 32-channel digital I/O)—no custom configuration or calibration needed; terminal pinouts match AC500 backplane standards; works with ABB Automation Builder for centralized input signal monitoring and fault logging.

3. Application Fields

• Manufacturing Automation: Sensor-Dense Lines:
  • Electronics Assembly Lines: Terminates wiring for PCB positioning sensors—16 input channels handle 8 PNP proximity sensors (PCB edge detection) + 6 NPN limit switches (conveyor stop) + 2 dry-contact safety interlocks (access door); noise filtering prevents false triggers from SMT placement machines, ensuring accurate PCB alignment.
  • Packaging Machines: Centralizes input signals for part detection—16 channels handle 10 photoelectric sensors (package presence) + 4 limit switches (conveyor alignment) + 2 safety door switches; <1ms response time captures fast-moving packages (up to 1m/s), avoiding mispackaging errors.
• Process Control: Auxiliary Sensor Monitoring:
  • Chemical Plants: Connects status sensors for reagent tank auxiliaries—16 input channels handle 8 float switches (tank fill/empty) + 6 temperature switches (heater on/off) + 2 dry-contact pressure switches (line pressure); reverse polarity protection prevents damage from incorrect sensor wiring (common during maintenance); EMC immunity resists interference from chemical pumps.
  • Water Treatment Facilities: Terminates input signals for filtration unit sensors—16 channels handle 10 flow switches (filter inflow/outflow) + 4 pressure switches (filter clogging) + 2 safety interlocks (filter access); -25℃~+70℃ range suits outdoor pump station cabinets; conformal coating resists dampness.
• Energy & Utilities: Substation Secondary Controls:
  • Small Power Substations: Connects status sensors for auxiliary equipment—16 input channels handle 6 breaker position switches (on/off) + 6 fan status sensors (cooling system) + 4 dry-contact alarm contacts; ESD protection withstands static discharge during substation maintenance; vibration resistance prevents signal dropout from transformer operation.
  • Solar PV Microgrids (100kW~500kW): Terminates input signals for inverter sensors—16 channels handle 8 current switches (PV string status) + 6 voltage switches (DC bus) + 2 dry-contact emergency stop inputs; noise filtering reduces interference from inverters, ensuring stable sensor readings for power monitoring.
• Building Automation: Commercial Space Sensing:
  • Office Buildings: Connects input sensors for HVAC zone control—16 channels handle 8 occupancy sensors (office zones) + 6 temperature switches (zone comfort) + 2 light switches (ambient light); compact design fits in wall-mounted electrical panels; LED indicators simplify maintenance for facility teams (no specialized automation expertise needed).
  • Retail Stores: Centralizes input signals for security and display sensors—16 channels handle 10 motion sensors (aisle traffic) + 4 door contact switches (entry/exit) + 2 emergency stop inputs; UL 94 V0 housing meets commercial building fire safety standards.

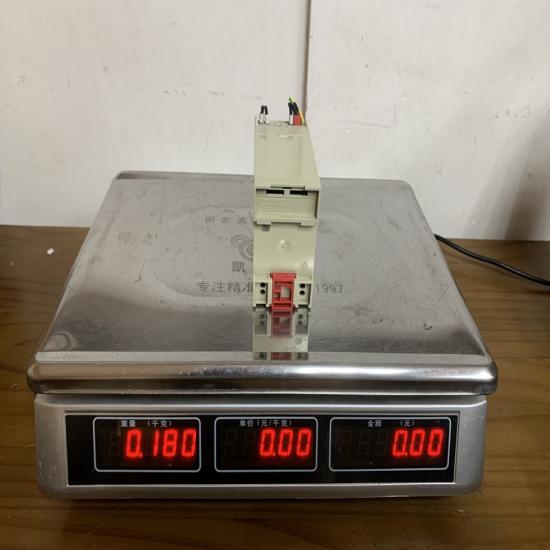

The structure and details of the product：
