ABB DSQC345C 3HAB8101-3/12C servo drive unit

ABB DSQC345C 3HAB8101-3/12C Servo Drive Unit

Product Overview

The ABB DSQC345C 3HAB8101-3/12C Servo Drive Unit is a high-performance drive module designed for advanced servo control systems. This unit provides precise and efficient drive control for servo motors, ensuring stable operation even under high loads and complex conditions. As a key component of ABB’s servo drive systems, the DSQC345C supports precise motion control and is widely used in applications such as robotics, CNC machines, automated production lines, and other industries that require high precision and stability. Its powerful processing capabilities, accurate power control, and high reliability make it an ideal solution for industrial automation.

Technical Specifications

• Model: DSQC345C 3HAB8101-3/12C

• Type: Servo Drive Unit

• Input Voltage: 3x400V~3x480V AC (three-phase)

• Output Current: Maximum 12A (depending on load requirements)

• Rated Power: Suitable for medium to high-power servo systems

• Input Power: Up to 15kW based on system requirements

• Cooling Method: Forced air cooling

• Operating Temperature Range: -10°C to 50°C

• Dimensions: 300mm x 200mm x 120mm

• Weight: 5.5 kg

• Mounting: Suitable for DIN rail mounting, adaptable to various industrial environments

• Communication Interface: Supports Industrial Ethernet, Profibus, Modbus, and other communication protocols

Advantages & Features

1. Efficient Drive Control: The DSQC345C utilizes advanced servo control technology to provide precise and efficient drive control for servo motors, ensuring smooth operation under varying loads.

2. High Current Output Capacity: With a maximum output of 12A, the DSQC345C is suitable for medium to high-power servo systems, making it ideal for demanding industrial applications.

3. Wide Input Voltage Range: The unit supports a wide input voltage range of 3x400V~3x480V AC, offering excellent compatibility with global electrical standards.

4. High Power Handling: The DSQC345C can handle up to 15kW of input power, making it suitable for servo systems that require substantial power output.

5. Compact Design & Easy Integration: The compact design saves space while supporting DIN rail mounting for easy integration into existing automation systems.

6. Efficient Cooling System: Equipped with forced air cooling, the unit effectively reduces heat buildup, ensuring stable operation even under high-load conditions.

7. Multi-Protocol Support: The DSQC345C supports various industrial communication protocols, including Ethernet, Profibus, and Modbus, ensuring seamless integration with other automation devices for efficient system operation.

Application Fields

• Servo Drive Systems: The DSQC345C is a core component of high-performance servo drive systems, used in applications that require high precision and fast response, such as robotics, CNC machines, and automated production lines.

• Industrial Robots: In robotic systems, the DSQC345C provides precise drive control for servo motors, ensuring that robots perform complex tasks with high efficiency and accuracy.

• Automated Production Lines: In automated production lines, this drive unit delivers precise and efficient power support for machinery, ensuring stable operation, especially during high-precision assembly and machining processes.

• High-Precision Motion Control: In applications requiring high-precision motion control, such as semiconductor manufacturing and precision machining, the DSQC345C ensures accurate control of servo motors, enhancing production efficiency and product quality.

Precautions

1. Power Connection: Ensure correct wiring when connecting the power supply to avoid reverse connections or poor connections, which could damage the servo drive unit.

2. Environmental Temperature Requirements: Ensure the operating environment temperature remains between -10°C and 50°C for optimal performance.

3. Cooling System Maintenance: Regularly inspect the cooling system and ensure that fans are functioning properly to avoid overheating and potential damage.

4. Regular Maintenance: Periodically check electrical connections and the status of the drive unit, especially in high-load environments, to ensure no loose, corroded, or damaged parts.

5. Avoid Electromagnetic Interference: Install the drive unit away from strong electromagnetic interference sources to minimize the impact of external electromagnetic waves on the system.

.

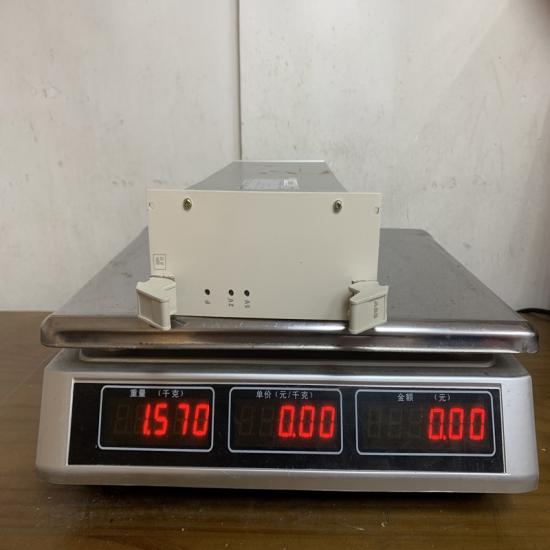

6. ​The structure and details of the product：
7.
