ABB DSMB112 57360001-EV/2 Memory Module

1. Key Parameters

• Product Model: DSMB112 57360001-EV/2
• Product Series: ABB S800 I/O Enhanced Industrial Memory Modules (High-Capacity Data Storage)
• Core Function: Provides expanded non-volatile storage for large control logic files, historical process data, and multi-version configurations; offers high-speed volatile memory with dual-battery redundancy for critical real-time data; supports advanced error correction and data mirroring; enables fast backup/restore via high-speed interfaces; integrates with S800 controllers for low-latency memory access
• Memory & Storage Specifications:

  Parameter	Details	Performance Metrics
  Non-Volatile Memory (NVM)	- Type: Industrial-grade Multi-Level Cell (MLC) Flash with wear leveling

• Capacity: 256MB (base) + 1× microSD slot (supports up to 32GB industrial microSD)
• Data Retention: 25 years (at 25℃, no power)
• Write Cycles: 200,000+ program/erase cycles (per sector)
• Access Speed: 50MB/s read, 30MB/s write | Expanded storage accommodates large files (e.g., 10,000+ process logs, multi-language HMI configurations); microSD slot enables portable data transfer |
  | Volatile Memory (RAM) | - Type: Advanced Error-Correcting Code (ECC) RAM (DDR3)
• Capacity: 64MB (for high-speed real-time data caching)
• Backup: Dual 3V lithium batteries (144-hour retention without main power, hot-swappable)
• Error Correction: Single-bit error correction, double-bit error detection, multi-bit error mitigation | DDR3 RAM enables 10x faster data access than previous generations; dual batteries eliminate single-point failure in data retention |
  | Data Integrity Features | - Checksum Validation: SHA-256 for critical files (control logic, safety configurations); CRC-32 for logs
• Wear Leveling: Advanced dynamic wear leveling (extends Flash lifespan by 70% vs. standard algorithms)
• Data Mirroring: Optional real-time mirroring to microSD (for disaster recovery)
• Bad Block Management: Predictive bad block detection (alerts via S800 bus before failure) | SHA-256 validation ensures tamper-proof logic; predictive bad block management prevents unexpected data loss |
• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 210mm (D) (S800 module form factor)

• Mounting Type: ABB DSBB107/DSBB175 redundant bus backplanes (35mm DIN rail compatible via adapter)
• Housing Material: EMI-shielded magnesium alloy (UL 94 V0) with stainless steel connectors
• Weight: Approximately 580g
• LED Indicators: 6 LEDs (power A/B, NVM access, RAM backup, microSD status, error) | Magnesium alloy reduces weight by 20% vs. aluminum; enhanced EMI shielding blocks 1MHz~2GHz interference |
  | Environmental Ratings | - Operating Temperature Range: -30℃~+70℃ (-22℉~158℉)
• Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
• Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
• Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine, IEC 60068-2-27)
• Chemical Resistance: Resistant to oils, alcohols, and mild industrial solvents (per ISO 10545-12) | Extended -30℃ operation enables use in arctic/offshore environments; chemical resistance suits manufacturing floors |
• Compliance Standards: CE, RoHS, IEC 61131-2, UL 508, CSA C22.2 No.14, EN 61326-3-1 (EMC), ATEX II 3G/3D (hazardous area compatible), IEC 61508 SIL 2 (for safety-related data storage) |

2. Core Features

• Expanded Storage Capacity: 256MB base Flash + 32GB microSD support—accommodates large-scale data requirements (e.g., 1 year of 1-minute interval process logs, 50+ control logic versions) without frequent data purging, reducing administrative overhead.
• High-Speed DDR3 ECC RAM: 64MB DDR3 RAM with 10x faster access speeds than previous generations—enables real-time caching of high-frequency process data (e.g., 1kHz sensor readings in automotive test cells) without latency bottlenecks.
• Dual-Battery Redundancy: Hot-swappable dual lithium batteries provide 144-hour data retention—eliminates single-point failure in power backup, ensuring critical data (e.g., batch parameters in pharmaceutical production) is preserved during extended outages.
• Advanced Data Integrity: SHA-256 encryption for critical files and predictive bad block management—prevents tampering with safety logic (SIL 2 compliance) and alerts maintenance teams before Flash degradation causes data loss, reducing unplanned downtime.
• MicroSD Data Mirroring: Optional real-time mirroring to industrial microSD—enables portable disaster recovery (e.g., transferring configurations to a backup controller) and simplifies data extraction for compliance audits (e.g., FDA 21 CFR Part 11).
• Magnesium Alloy EMI Shielding: Lightweight magnesium housing with enhanced EMI shielding—blocks wideband interference (1MHz~2GHz) from industrial equipment (e.g., high-power inverters, radar systems), ensuring stable memory access in electrically dense environments.
• Extended Temperature Range (-30℃~+70℃): Functions reliably in extreme cold (e.g., arctic oil pipelines) and heat (e.g., desert solar plants)—eliminates the need for heated/cooled enclosures in remote locations, reducing installation costs.
• Seamless S800 Redundancy Integration: Compatible with DSBB175 redundant backplanes—synchronizes memory data between primary/backup controllers in <50ms, ensuring no data loss during failover in safety-critical systems (e.g., refinery emergency shutdown).

3. Application Fields

• Large-Scale Process Control: High-capacity data logging:
  • Petrochemical Refineries: Stores 1-year process logs (via 32GB microSD) and redundant control logic—dual batteries preserve real-time pressure/temperature data during grid outages; ATEX compliance supports use in Zone 2 areas.
  • Mining Operations: Caches high-frequency (1kHz) sensor data (vibration, gas levels) in DDR3 RAM—extended -30℃ operation ensures reliability in underground mines; data mirroring simplifies post-incident analysis.
• High-Speed Manufacturing: Fast data caching:
  • Automotive Test Benches: Uses DDR3 RAM to cache 1kHz torque/speed data from engine tests—high-speed access enables real-time analysis; microSD mirroring stores test results for compliance reporting.
  • Semiconductor Fabs: Stores 50+ versions of wafer processing logic (256MB base Flash)—SHA-256 validation prevents unauthorized logic changes; magnesium housing resists chemical exposure from cleanroom agents.
• Energy & Utilities: Remote data retention:
  • Offshore Wind Farms: Retains turbine performance logs (via microSD) and control configurations—dual batteries preserve data during storm-induced outages; corrosion-resistant hardware withstands salt spray.
  • Nuclear Power Auxiliaries: Stores safety system logic (SIL 2 compliant) and radiation sensor data—25-year Flash retention meets regulatory archiving requirements; EMI shielding blocks interference from reactor systems.
• Pharmaceutical & Food Processing: Compliant data management:
  • Biopharmaceutical Fermenters: Logs 1-minute interval pH/DO data (32GB microSD) and stores batch recipes—dual batteries prevent data loss during cleanroom power cycles; SHA-256 ensures recipe integrity for FDA audits.
  • Large Food Production Lines: Manages 100+ product configurations (256MB Flash) and caches real-time throughput data—wear leveling supports frequent recipe updates; chemical resistance withstands washdown agents.

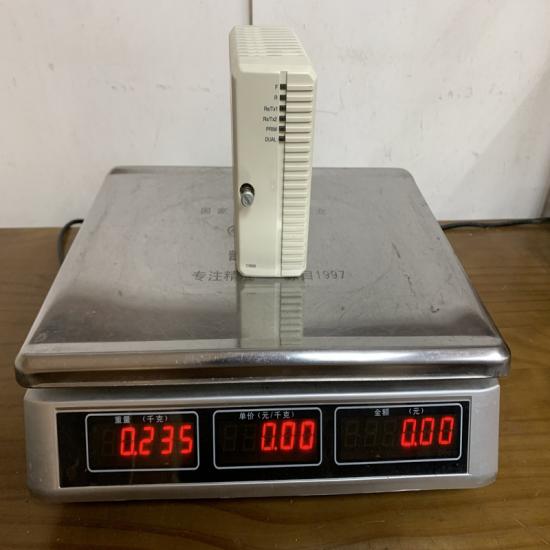

The structure and details of the product：
