ABB DSMB110 Memory Module

1. Key Parameters

• Product Model: DSMB110
• Product Series: ABB S800 I/O Industrial Memory Modules (Data Storage & Backup)
• Core Function: Provides non-volatile storage for control logic, configuration files, and historical process data; offers battery-backed volatile memory for real-time data retention; supports error correction to prevent data corruption; enables data backup/restore via S800 bus; communicates with S800 controllers for memory access
• Memory & Storage Specifications:

  Parameter	Details	Performance Metrics
  Non-Volatile Memory (NVM)	- Type: Industrial-grade Flash memory - Capacity: 64MB (expandable to 256MB via dual Flash slots) - Data Retention: 20 years (at 25℃, no power) - Write Cycles: 100,000+ program/erase cycles (per sector)	High write cycles support frequent logic updates; 20-year retention ensures long-term storage of critical configurations (e.g., SIS logic)
  Volatile Memory (RAM)	- Type: Error-Correcting Code (ECC) RAM - Capacity: 16MB (for real-time data caching) - Backup: 3V lithium battery (72-hour retention without main power) - Error Correction: Single-bit error correction, double-bit error detection (SEC-DED)	ECC RAM prevents data corruption from cosmic rays or electrical noise; battery backup preserves real-time data (e.g., batch counts) during power outages
  Data Integrity Features	- Checksum Validation: CRC-32 for all stored files (logic, configurations) - Wear Leveling: Automatic Flash sector wear leveling (extends Flash lifespan by 50%) - Bad Block Management: Dynamic bad block detection and replacement (prevents data loss from Flash degradation)	CRC-32 validation ensures no corrupted files are loaded into S800 controllers; wear leveling avoids premature Flash failure in high-write applications

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 210mm (D) (S800 module form factor) - Mounting Type: ABB DSBB102/DSBB107/DSBB175 bus backplanes (35mm DIN rail compatible via adapter) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0) with stainless steel fasteners - Weight: Approximately 620g - LED Indicators: 4 LEDs (power, NVM access, RAM backup, error)	EMI shielding blocks 10MHz~1GHz interference; compact size fits standard S800 rack configurations
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)	Withstands harsh industrial conditions (e.g., factory floors, outdoor pump stations) without memory performance degradation

• Compliance Standards: CE, RoHS, IEC 61131-2, UL 508, CSA C22.2 No.14, EN 61326-3-1 (EMC), ATEX II 3G/3D (hazardous area compatible) |

2. Core Features

• Dual Memory Architecture (Flash + ECC RAM): Combines 64MB (expandable) non-volatile Flash for permanent storage and 16MB ECC RAM for real-time data—separates long-term configurations (e.g., control logic) from temporary data (e.g., process variables), optimizing both storage durability and access speed.
• ECC RAM with Battery Backup: 16MB ECC RAM corrects single-bit errors and detects double-bit errors, while a 72-hour lithium battery preserves data during power outages—prevents data loss in critical applications (e.g., batch processing) and avoids costly restart procedures.
• Industrial-Grade Flash Reliability: 100,000+ write cycles and 20-year data retention (at 25℃)—ensures long-term stability for control logic and configuration files, even in high-write scenarios (e.g., frequent recipe updates in food manufacturing).
• Built-In Data Integrity Tools: CRC-32 checksum validation, wear leveling, and bad block management—automatically detects and corrects data corruption, extends Flash lifespan, and prevents failed data loads into S800 controllers, reducing unplanned downtime.
• Seamless S800 Integration: Plugs directly into S800 bus backplanes and auto-detects via native protocol—enables controller access to memory without custom drivers; supports one-click backup/restore of logic/configurations via ABB Control Builder software.
• EMI-Shielded Aluminum Housing: Blocks high-frequency interference from VFDs, motors, and industrial equipment—ensures stable memory access and data integrity in electrically noisy environments (e.g., steel mills, automotive assembly plants).
• Expandable Flash Capacity: Dual Flash slots support up to 256MB total storage—accommodates large files (e.g., historical process logs, multiple control logic versions) and scales with system requirements, avoiding premature module replacement.
• ATEX Compliance: Certified for Zone 2/22 hazardous areas—enables safe use in explosive environments (e.g., chemical plants, oil refineries) where flammable gases/dusts are present, eliminating the need for specialized enclosures.

3. Application Fields

• Process Control & Oil & Gas: Secure logic/data storage:
  • Chemical Plants: Stores SIS control logic (non-volatile Flash) and real-time reactor data (ECC RAM with battery)—CRC-32 validation ensures no corrupted logic is loaded, while ATEX compliance supports use in Zone 2 areas with flammable vapors.
  • Oil Refineries: Retains historical pressure/temperature logs (expandable Flash) and backup control configurations—EMI shielding resists interference from refinery pumps, ensuring reliable data access for process audits.
• Manufacturing Automation: Recipe & data management:
  • Automotive Assembly: Stores robotic control logic (Flash) and real-time production counts (RAM with battery)—72-hour backup preserves counts during power outages, avoiding production line restart delays.
  • Food & Beverage Production: Stores 100+ product recipes (expandable Flash) and batch data (RAM)—wear leveling supports frequent recipe updates, while CRC-32 validation ensures no corrupted recipes are used in production.
• Water & Wastewater Infrastructure: Configuration backup:
  • Municipal Water Treatment: Stores pump control logic (Flash) and real-time flow data (RAM)—battery backup preserves flow logs during power outages, enabling accurate billing and compliance reporting.
  • Flood Control Systems: Retains floodgate control configurations (Flash) and sensor data (RAM)—wide temperature range (-25℃~+70℃) ensures reliability in outdoor enclosures, even in extreme weather.
• Pharmaceutical Manufacturing: Compliant data storage:
  • Sterile Processing: Stores autoclave control logic (Flash) and batch records (RAM)—20-year Flash retention meets FDA requirements for long-term data archiving, while ECC RAM prevents batch data corruption.
  • Biotech Labs: Retains cell culture process parameters (expandable Flash) and real-time pH/DO data (RAM with battery)—data integrity tools ensure compliance with GMP standards, avoiding costly batch scrapping.

4. Precautions

• System Compatibility (Critical): Use only with ABB S800 controllers (e.g., DSDON001, DSIH900) and DSBB-series backplanes—non-S800 systems may cause memory access errors or failed data transfers; verify via ABB’s DSMB110 compatibility list.
• Installation & Wiring Safety:
  • Battery Handling: Replace the lithium battery (part no. 3HAC028357-001) every 3 years or when the "RAM backup" LED blinks—use only ABB-approved batteries to avoid leakage and memory damage; disconnect main power before replacement.
  • Grounding: Connect the module’s PE terminal to a dedicated control ground (resistance ≤1Ω) using 2.5mm² copper cable—shared grounding with power systems compromises EMI shielding, leading to memory access errors.
  • Flash Expansion: When adding Flash modules, use only ABB-certified industrial Flash (part no. 3HAC031624-001)—non-certified Flash may have insufficient write cycles or data retention, causing premature failure.
• Operation & Maintenance:
  • Regular Backups: Perform monthly backups of Flash-stored logic/configurations to an external system—prevents data loss if the module fails; use ABB Control Builder for encrypted backups to ensure security.
  • 定期检查: Perform monthly inspections for:
    • LED status (green "power" and "NVM access" = normal; red "error" = investigate immediately—indicates data corruption or battery failure).
    • Battery Health: Check "RAM backup" LED (steady = healthy, blinking = low battery; replace within 30 days).
    • Flash Wear: Monitor write cycle counts via controller diagnostics—replace Flash modules if approaching 100,000 cycles to avoid data loss.
  • Firmware Updates: Install only ABB-released firmware updates (via S800 bus)—unauthorized updates may disable error correction or Flash expansion, compromising data integrity; back up all memory before updating.
• Environmental Limitations:
  • Condensing Humidity: Avoid installation in condensing environments (e.g., refrigerated warehouses)—moisture causes internal corrosion, leading to memory shorts; use IP65-rated enclosures with dehumidifiers if condensation is unavoidable.
  • Extreme Temperatures: Do not operate beyond -25℃~+70℃—low temperatures increase battery discharge rate; high temperatures reduce Flash data retention, risking logic corruption.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine DSMB110 modules, batteries, and Flash expansions—non-genuine parts lack industrial durability and ATEX compliance, leading to data loss or system failure; verify authenticity via ABB’s serial number lookup tool.
  • Spare Inventory: Maintain 1 spare module per 8 deployed units (e.g., process skids, manufacturing lines)—critical for minimizing downtime (each hour of memory failure halts logic updates, costing $2k~$20k); store spares in anti-static packaging at 15℃~25℃

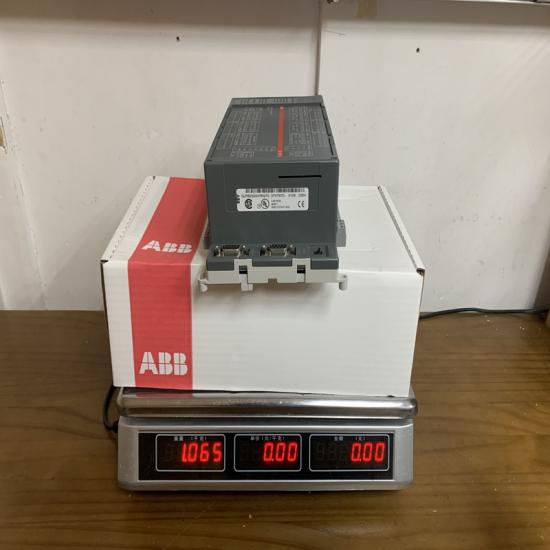

The structure and details of the product：
