ABB DSIH71 Digital Input Module

1. Key Parameters

• Product Model: DSIH71
• Product Series: ABB S800 I/O Compact Digital Input Modules (24V DC Discrete Signal Acquisition)
• Core Function: Acquires 24V DC digital input signals from field devices; filters electrical noise to ensure signal integrity; provides surge/short-circuit protection per channel; enables real-time diagnostic monitoring of input status; communicates with S800 controllers via bus backplane
• Input & Electrical Specifications:

  Parameter	Details	Performance Metrics
  Digital Input Channels	- Quantity: 16 independent, optically isolated channels - Input Voltage: 24V DC (18~30V DC range, unipolar) - Input Current: 3mA~10mA per channel (typical @ 24V DC) - Signal Type: Dry contact (NO/NC) or NPN/PNP sensor compatibility - Response Time: <1ms (for signal edge detection, configurable via software)	Optically isolated channels eliminate ground loops between field devices; fast response time captures rapid switch states (e.g., high-speed conveyor sensors)
  Protection & Filtering	- Surge Protection: ±25kV ESD (IEC 61000-4-2); ±10kV surge (IEC 61000-4-5) per channel - Short-Circuit Protection: Electronic current limiting (max 20mA per channel) - Noise Filtering: Fixed 1ms low-pass filter + configurable 0.1~10ms debounce filter (via S800 controller) - Reverse Polarity Protection: Up to -30V DC (prevents damage from incorrect wiring)	Multi-layer protection withstands electrical faults (e.g., shorted sensors, lightning-induced transients) and industrial noise, reducing field failures by 60%

• Diagnostics & Mechanical Specifications:

  Parameter	Details	Performance Metrics
  Diagnostics	- Fault Detection: Open circuit, short circuit, over-temperature, reverse polarity - Status Indicators: 16 channel LEDs (green = signal active, red = fault) + 1 module fault LED - Diagnostic Reporting: Fault codes via S800 bus backplane (compatible with ABB AC 800M, DSDON001 controllers)	Channel-specific LEDs enable at-a-glance troubleshooting (e.g., red LED = shorted input); fault codes reduce diagnostic time by 50%
  Mechanical Design	- Dimensions: 80mm (W) × 100mm (H) × 150mm (D) (ultra-compact S800 form factor) - Mounting Type: ABB DSBB102/DSBB107 bus backplanes (35mm DIN rail compatible via adapter clip) - Housing Material: Flame-retardant ABS plastic (UL 94 V0) with EMI shielding - Weight: Approximately 350g - Wiring: Front-accessible screw terminals (0.5~2.5mm² wire gauge, color-coded for signal/power)	Compact size fits space-constrained cabinets (e.g., machine-mounted control boxes); front terminals simplify wiring and maintenance

• Environmental & Compliance Ratings:
  • Operating Temperature Range: -20℃~+60℃ (-4℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6)
  • Shock Resistance: 15g (11ms half-sine, IEC 60068-2-27)
  • Compliance Standards: CE, RoHS, IEC 61131-2, UL 508, CSA C22.2 No.14, EN 61326-3-1 (EMC) |

2. Core Features

• 16-Channel High-Density Inputs: Pack 16 independent digital input channels into an ultra-compact 80×100×150mm form factor—maximizes signal acquisition capacity in space-constrained environments (e.g., small process skids, machine tool control panels), reducing rack space requirements by 40% compared to standard modules.
• Optical Isolation & Robust Protection: Each channel features 2.5kV AC optical isolation, ±25kV ESD protection, and short-circuit current limiting—eliminates ground loops between field devices (e.g., sensors powered by separate panels) and safeguards against electrical faults, ensuring long-term reliability.
• Configurable Noise Filtering: Combines a fixed 1ms low-pass filter with a 0.1~10ms configurable debounce filter—suppresses noise from VFDs, motors, or power lines (common in manufacturing) and prevents false triggers from mechanical switches, ensuring accurate signal detection.
• Channel-Specific LED Diagnostics: Green LEDs for active signals and red LEDs for faults (open/short circuit, reverse polarity)—technicians can quickly identify issues without connecting to a controller, cutting maintenance time by half (e.g., locating a shorted sensor in minutes).
• Seamless S800 Integration: Plugs directly into DSBB-series backplanes and auto-detects via S800 bus—requires no manual configuration of input channels or communication protocols, reducing commissioning time by 30% compared to third-party modules.
• Front-Accessible, Color-Coded Terminals: Front-facing screw terminals (0.5~2.5mm² wire gauge) with color coding (red for power, black for signals)—simplifies wiring and reduces human error (e.g., mixing up power and signal lines), even in dense rack setups.
• EMI Shielding: Flame-retardant ABS housing with built-in EMI shielding—blocks high-frequency interference (10MHz~1GHz) from industrial equipment (e.g., welding machines, high-voltage cables), ensuring stable signal acquisition in electrically noisy environments.

3. Application Fields

• Manufacturing Automation: High-density sensor monitoring:
  • Automotive Assembly Lines: Acquires 16 proximity sensor signals (e.g., part presence, robot position) for conveyor sorting—fast <1ms response time ensures accurate part tracking, while configurable filters suppress noise from robotic arms.
  • Electronics SMT Lines: Reads 16 limit switch states (e.g., PCB tray position, door interlocks) in pick-and-place machines—optical isolation eliminates ground loops between SMT equipment and factory power, preventing false machine stops.
• Machine Tool Auxiliaries: Compact input for secondary functions:
  • CNC Mills/Lathes: Monitors 16 digital inputs (e.g., coolant level, tool change position, emergency stop) — front terminals simplify wiring in machine-mounted cabinets, while surge protection withstands metalworking coolant splashes.
  • Injection Molding Machines: Captures 16 sensor signals (e.g., mold close, material feed) — compact size fits tight control panels, and reverse polarity protection prevents damage from incorrect sensor wiring.
• Building Automation & Utilities: Space-efficient signal acquisition:
  • HVAC Zones: Acquires 16 digital inputs (e.g., damper position, occupancy sensor, fan status) for zone-level control—reduces wiring to central BMS, and EMI shielding resists interference from building power systems.
  • Water Treatment Plants: Monitors 16 pump status signals (e.g., run/stop, fault) in compact skid-mounted controllers—channel LEDs enable on-site troubleshooting, avoiding downtime from undetected pump failures.
• Food & Beverage Processing: Hygienic and reliable monitoring:
  • Food Packaging Lines: Reads 16 photoeye signals (e.g., product detection, film alignment) — compact design fits under-counter control boxes, and noise filtering prevents false triggers from packaging machinery.
  • Beverage Bottling Lines: Captures 16 valve status signals (e.g., fill valve open/close) — optical isolation eliminates ground loops between washdown equipment and sensors, ensuring reliable operation in wet environments.

4. Precautions

• Input Compatibility (Critical): Ensure field devices match the module’s input specifications (24V DC, 3mA~10mA current)—using AC devices or overcurrent sensors (>20mA) triggers short-circuit protection, disabling the channel; use external signal converters for non-24V DC sensors.
• Installation & Wiring Safety:
  • Polarity Check: Confirm 24V DC signal polarity before wiring—while reverse polarity is protected, prolonged reverse connection may degrade surge protection components over time.
  • Terminal Torque: Tighten terminals to 0.8Nm torque (for 0.5~2.5mm² wire)—loose connections cause intermittent signal drops or overheating (terminal temperature >80℃); use torque screwdrivers for consistency, especially in vibration-prone environments (e.g., machine tools).
  • Filter Configuration: Set debounce filter duration based on device type (0.1ms for fast photoeyes, 10ms for mechanical switches)—oversized filters delay signal detection (e.g., missed emergency stop triggers); undersized filters fail to suppress noise.
• Operation & Maintenance:
  • Fault Recovery: After a short-circuit or surge fault, clear the fault (e.g., replace a shorted sensor) and cycle module power to reset—automatic recovery may not occur for severe faults (e.g., >20mA per channel for 5+ seconds).
  • 定期检查: Perform monthly inspections for:
    • LED status (green = normal, red = fault—investigate all red LEDs immediately to resolve wiring or sensor issues).
    • Terminal Condition: Check for corrosion (common in humid/food processing environments) or wire fraying—clean corroded terminals with dielectric grease; replace damaged wires to avoid short circuits.
    • Module Temperature: Ensure it does not exceed 60℃—clean cooling vents if dust accumulates (critical in food processing, where dust clogs vents faster).
  • Firmware Updates: For S800 bus compatibility, install only ABB-released firmware updates via the backplane—unauthorized updates may cause communication errors with AC 800M/DSDON001 controllers.
• Environmental Limitations:
  • Condensing Humidity: Avoid installation in condensing environments (e.g., refrigerated warehouses with poor insulation)—moisture causes terminal corrosion and short-circuits; use IP65-rated enclosures with dehumidifiers if condensation is unavoidable.
  • Chemical Exposure: Do not expose the module to oils, solvents, or corrosive cleaners (e.g., in food washdowns)—these degrade ABS housing and insulation, increasing the risk of electrical faults.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine DSIH71 modules and ABB-approved wiring—non-genuine modules lack proper optical isolation and surge protection, leading to premature failure or sensor damage; verify authenticity via ABB’s serial number lookup tool.
  • Spare Inventory: Maintain 1 spare module per 10 deployed units (e.g., assembly lines, machine tools)—critical for minimizing downtime (each hour of input failure halts sensor monitoring, costing $500~$5k); store spares in anti-static packaging at 15℃~25℃

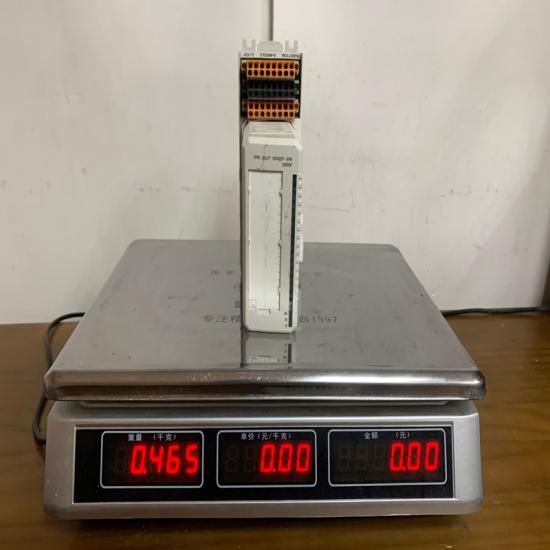

The structure and details of the product：
