ABB DSHM101 Controller Module

1. Key Parameters

• Product Model: DSHM101
• Product Series: ABB S800 I/O Integrated Controller Modules (Logic Execution + I/O Processing)
• Core Function: Executes IEC 61131-3 control logic (ladder, function block, structured text); processes real-time data from S800 I/O modules; enables basic operator interaction (status monitoring, manual command execution); communicates with upper-level controllers via fieldbuses; provides fault detection and diagnostics
• Control & Processing Specifications:

  Parameter	Details	Performance Metrics
  Processor & Logic Capacity	- Processor: 32-bit RISC (300MHz) with floating-point unit - Instruction Cycle: 3.3ns (single-cycle operations) - Logic Capacity: Up to 8,000 ladder rungs; 400 function blocks - Update Rate: 1ms~200ms (configurable per task)	Fast processing enables complex control (e.g., PID loops for temperature/pressure) with minimal latency, suitable for time-sensitive auxiliary systems
  Memory	- Program Memory: 16MB Flash (non-volatile, retains logic without power) - Data Memory: 8MB RAM (volatile, with 72-hour battery backup) - Configuration Storage: 4MB EEPROM (preserves I/O mappings and settings)	Battery-backed RAM retains critical process data (e.g., batch counts, alarm logs) during power outages, avoiding restart delays

• Communication & I/O Integration Specifications:

  Parameter	Details	Performance Metrics
  Communication Interfaces	- Primary: S800 bus backplane (direct I/O module communication) - Secondary: 1× PROFIBUS DP port (EN 50170, 9.6kbps~12Mbps) for upper-level DCS/PLC integration - Service: 1× RS-232 port (configuration/diagnostics)	PROFIBUS DP enables seamless data exchange with central controllers (e.g., ABB AC 800M), avoiding custom gateways
  I/O Compatibility	- Supported Modules: S800 digital (DSDI301, DSDO301) and analog (DSAI110, DSAO110) I/O - Maximum I/O Points: 256 digital / 64 analog (via backplane expansion) - Data Refresh: 500µs~1ms (for connected I/O modules)	Flexible I/O expansion adapts to diverse applications (e.g., 32 digital inputs for sensor monitoring, 8 analog outputs for valve control)

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 210mm (D) (S800 module form factor) - Mounting Type: ABB DSBB102/DSBB107 bus backplanes (35mm DIN rail compatible via adapter) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0) with stainless steel fasteners - Weight: Approximately 680g - LED Indicators: 7 LEDs (power, run, fault, communication, I/O status, battery, redundancy)	EMI shielding blocks 10MHz~1GHz interference; compact size fits 19-inch racks or machine-mounted cabinets
  Environmental Ratings	- Operating Temperature Range: -25℃~+70℃ (-13℉~158℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6) - Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)	Withstands industrial conditions (e.g., factory floors, outdoor pump stations) without performance degradation

• Compliance Standards: CE, RoHS, IEC 61131-2, UL 508, CSA C22.2 No.14, EN 61326-3-1 (EMC)

2. Key Features

• IEC 61131-3 Compliant Logic Execution: Supports standard programming languages (ladder diagram, function block diagram, structured text)—enables engineers to reuse existing code libraries and leverage familiar tools, reducing training time and project delivery cycles.
• Integrated I/O Processing: Communicates directly with S800 digital/analog modules via backplane—auto-detects connected I/O and maps signals to control logic, eliminating the need for external I/O interfaces and reducing hardware complexity.
• Basic Operator Interaction Capabilities: Includes status monitoring (via LEDs) and manual control triggers (configurable via software)—enables local operators to verify system health (e.g., I/O status) and execute emergency commands (e.g., pump shutdown) without a dedicated HMI.
• Optional Redundancy Support: With compatible DSBB107 backplanes, supports 1:1 hot-standby redundancy—automatic <50ms failover between primary/backup units ensures uninterrupted operation for critical auxiliary systems (e.g., HVAC for data centers).
• EMI-Shielded Aluminum Housing: Blocks high-frequency interference from VFDs, motors, and industrial equipment—ensures stable logic execution and I/O data processing in electrically noisy environments (e.g., automotive assembly plants, steel mills).
• Battery-Backed Data Memory: 72-hour lithium battery backup for RAM—preserves critical process variables (e.g., setpoints, counter values) during power outages, simplifying system restart and avoiding product waste (e.g., in batch processing).
• Seamless Upper-Level Integration: PROFIBUS DP port enables data exchange with central DCS/PLC—transmits process data (e.g., sensor readings, control outputs) to upper-level systems for centralized monitoring, while receiving setpoints or remote commands.
• Wide Temperature Range Operation: Functions reliably from -25℃ to +70℃—suitable for unconditioned environments (e.g., outdoor oil well auxiliary systems, cold-storage facility compressors) without additional heating/cooling.

3. Application Fields

• Machine Tool Auxiliary Control: Managing secondary functions of manufacturing equipment:
  • CNC Mills/Lathes: Controls coolant systems, chip conveyors, and door interlocks—executes logic to activate coolant when spindle speed exceeds 1,000 RPM; monitors door interlock I/O to prevent operation if safety doors are open.
  • Injection Molding Machines: Regulates mold temperature (via analog I/O) and material feeders—uses PID logic to maintain setpoint temperature; communicates cycle counts and fault status to central MES via PROFIBUS DP.
• Process Skid Automation: Controlling standalone process units:
  • Chemical Dosing Skids: Manages dosing pumps (analog outputs) and level sensors (analog inputs)—executes logic to adjust pump speed based on tank level; alerts upper-level DCS via PROFIBUS if levels exceed safety thresholds.
  • Water Filtration Skids: Controls filter backwash valves (digital outputs) and pressure sensors (analog inputs)—triggers backwash when differential pressure exceeds 50kPa; monitors valve status I/O to confirm proper operation.
• Building HVAC Zones: Regulating localized heating/cooling:
  • Office Floor HVAC: Controls air handler dampers (analog outputs) and temperature sensors (analog inputs)—uses PID logic to maintain 22℃ setpoint; communicates zone temperature and damper position to central BMS via PROFIBUS.
  • Data Center Server Racks: Manages rack-mounted CRAC units (digital outputs) and airflow sensors (analog inputs)—triggers additional CRAC units if airflow drops below 0.5m/s; provides redundancy to avoid server overheating.
• Remote Infrastructure Auxiliaries: Controlling off-site support systems:
  • Oil Well Chemical Injection: Manages injection pumps (analog outputs) and pressure sensors (analog inputs)—adjusts pump rate based on wellhead pressure; operates in -25℃~+50℃ outdoor conditions without heating.
  • Solar Farm Inverter Cooling: Controls fan speed (analog outputs) and inverter temperature (analog inputs)—increases fan speed if temperature exceeds 45℃; communicates fan status and temperature to central solar management system.

4. Precautions

• System Compatibility (Critical): Use only with ABB S800 I/O modules (e.g., DSDI301, DSAO110) and DSBB102/DSBB107 bus backplanes—non-compatible I/O or backplanes may cause communication failures or logic execution errors; verify via ABB’s DSHM101 compatibility list.
• Installation & Wiring Safety:
  • Redundancy Setup: For hot-standby configurations, ensure primary/backup units have identical firmware, I/O mappings, and control logic—mismatched settings cause synchronization failures; use ABB Control Builder for automated configuration cloning.
  • Grounding: Connect the module’s PE terminal to a dedicated control ground (resistance ≤1Ω) using 2.5mm² copper cable—star-grounding prevents ground loops that corrupt I/O data or communication with upper-level systems.
  • Battery Replacement: Replace the backup battery (3V lithium, part no. 3HAC028357-001) every 5 years or when the "battery" LED blinks—do not mix battery types; leakage from expired batteries damages internal memory.
• Operation & Maintenance:
  • Redundancy Testing: For redundant systems, perform quarterly failover tests (simulate primary unit power loss) to verify <50ms switchover—document results for compliance audits (e.g., ISO 9001); use ABB’s test tool to automate validation.
  • 定期检查: Perform monthly inspections for:
    • LED status (green "run" LED = normal; red "fault" LED = investigate immediately; blinking "I/O" LED = I/O communication error).
    • Module temperature (use an infrared thermometer—temperatures >70℃ indicate cooling vent blockage; clean vents with compressed air).
    • Battery health (check "battery" LED—steady = healthy, blinking = low; replace within 30 days to avoid data loss).
  • Firmware Updates: Install only ABB-released firmware updates (via RS-232 or PROFIBUS)—unauthorized updates may break I/O compatibility or disable redundancy; back up logic and configuration before updating.
• Environmental Limitations:
  • Moisture & Dust: Use IP65-rated enclosures in wet/dusty environments (e.g., food processing, mining)—moisture causes terminal corrosion; dust clogs cooling vents, leading to overheating and logic errors.
  • Chemical Exposure: Avoid contact with oils, solvents, or corrosive cleaners—these degrade aluminum housing and insulation, increasing the risk of short-circuits in I/O communication paths.

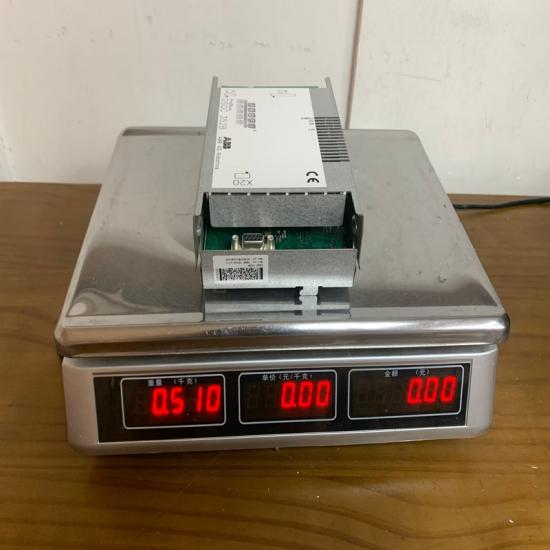

The structure and details of the product：
