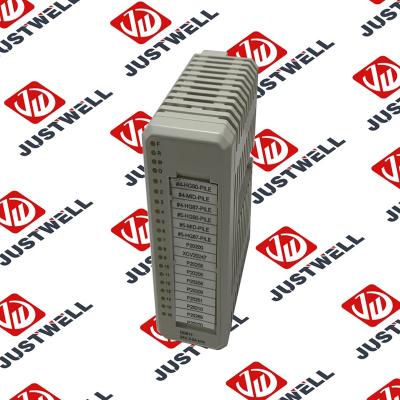

The ABB DO814 is a high-performance, industrial-grade digital output module designed exclusively for ABB’s AC 800M and AC 800xA distributed control systems (DCS). As a core component of ABB’s process automation portfolio, it specializes in reliable control of discrete field actuators—such as solenoid valves, contactors, indicator lights, and relay coils—by converting DCS control signals into actionable electrical outputs.
Unlike general-purpose I/O modules, the DO814 is optimized for robustness and flexibility, supporting both standard and safety-critical applications (when paired with ABB’s safety controllers). It excels in harsh industrial environments—including oil & gas refineries, chemical plants, power generation facilities, and manufacturing lines—where high reliability, noise immunity, and resistance to extreme temperatures are non-negotiable. Its compact design and high channel density make it ideal for large-scale systems requiring centralized actuator control.
- 16 Channels in Compact Form: The DO814 packs 16 independent output channels into a single rack-mounted module, reducing I/O rack space by 50% compared to 8-channel alternatives. This is critical for large-scale systems (e.g., a chemical plant with 100+ solenoid valves) where cabinet space is limited.
- Per-Channel Isolation: 500V AC channel-to-channel isolation prevents fault propagation—for example, a shorted solenoid on Channel 5 won’t damage Channel 6 or the DCS controller. 2.5kV AC isolation between channels and ground further protects against voltage spikes from long cable runs or shared power supplies.
- Per-Channel Overcurrent/Short-Circuit Defense: Each channel includes independent overcurrent protection that triggers at ~0.6A (above the 0.5A continuous rating) and limits short-circuit current to 0.8A. The module automatically recovers once the fault is resolved—no manual reset required—minimizing downtime.
- Reverse Polarity Protection: Prevents damage if power wiring is reversed (e.g., 24V DC positive connected to ground). This is especially valuable during installation or maintenance, where wiring errors are common.
- Inductive Load Compatibility: Supports peak currents of 2A per channel (1s max) to handle startup surges from inductive loads (e.g., relay coils, small motors). For persistent inductive loads, the module’s MOSFET outputs avoid contact wear (unlike mechanical relays), ensuring a lifespan of >100 million cycles.
- Extreme Temperature Tolerance: Operates reliably from -40°C (arctic oil fields, unheated cabinets) to +70°C (desert power plants, near heat-generating equipment)—outperforming many competitors’ modules (-25°C ~ +60°C). This eliminates the need for cabinet heaters or coolers in extreme climates.
- EMI Immunity: Complies with EN 61000-6-2 standards, resisting electrostatic discharge (ESD: ±8kV contact), radiated EMI (30V/m), and electrical fast transients (EFT: ±2kV). This ensures stable output performance in noisy industrial environments (e.g., near large motors, welders, or high-voltage power lines).
- SIL 2 Compliance: When paired with ABB’s AC 800M Safety controller, the DO814 supports safety-related applications up to SIL 2 (IEC 61508) and PL d (EN ISO 13849-1). It can control safety-critical actuators (e.g., emergency stop valves, machine guards) with built-in fault detection to prevent unsafe operation.
- Real-Time Diagnostics: Transmits output status and fault data to the DCS controller, including "channel active," "overcurrent," "short circuit," and "power loss." LED indicators on the module provide at-a-glance alerts: green (output active), red (fault), yellow (module power on). Diagnostic logs include timestamped events (e.g., "2024-05-20 14:30: Channel 9 Short Circuit") for root-cause analysis.
- High-Speed Backplane Communication: Connects to the AC 800M controller via PROFIBUS DP (12 Mbps maximum rate), ensuring low-latency (<10ms) data exchange between the DCS and module. This is critical for time-sensitive tasks (e.g., stopping a conveyor within 50ms of a jam detection).
- Centralized Configuration: All parameters (output current limits, fault reset behavior) are configured via ABB’s Control Builder M software—no hardware jumpers required. The module is automatically detected by the DCS during commissioning, and channels can be mapped to DCS variables (e.g., "DO814_Ch3 = Reactor_Valve_Open") with a few clicks.
- Oil & Gas Refineries: Controls 16 solenoid valves for pipeline flow regulation and pressure relief. The DO814’s overcurrent protection prevents damage from clogged valves, while -40°C ~ +70°C tolerance withstands outdoor pump station conditions.
- Chemical Processing Plants: Manages 16 contactor coils for heater banks and agitator motors. Peak current support (2A/channel) handles motor startup surges, and SIL 2 compliance ensures safe shutdown if temperature limits are exceeded.
- Power Generation (Nuclear/Coal): Operates 16 indicator lights and relay coils for turbine auxiliary systems. EMI immunity resists interference from high-voltage generators, and real-time diagnostics alert operators to failed relays.
- Automotive Manufacturing: Controls 16 robotic gripper actuators and conveyor stop valves on an assembly line. Fast <1ms response time ensures synchronized actuation with part detection sensors, avoiding collisions.
- Cable Sizing: Use 0.5–1.0mm² copper cables for outputs driving ≤0.5A (e.g., LEDs, small relays) and 1.0–1.5mm² cables for loads approaching 0.5A (e.g., solenoid valves). This prevents voltage drop and overheating.
- Inductive Load Protection: For inductive loads (e.g., relay coils, motors), install flyback diodes (e.g., 1N4007) across the load terminals. This suppresses voltage spikes during output turn-off, which can damage the module’s MOSFETs.
- Grounding: Connect the module’s ground terminal to the DCS rack’s earth bar (≤0.5Ω resistance) to maximize EMI immunity. Ground the cable shield at the module end only—double-ended grounding creates ground loops.
- Total Current Check: Ensure the sum of all connected load currents does not exceed 8A (e.g., 16 loads of 0.5A = 8A, safe; 10 loads of 1A = 10A, excessive). Use a second DO814 for excess loads.
- Peak Current Limitation: Avoid simultaneous startup of multiple high-peak loads (e.g., 4 motors with 2A peak each = 8A total). Stagger startup via DCS logic to prevent tripping the total current limit.
- Safe State Setup: For SIL 2 applications, define "safe states" in Control Builder M (e.g., "communication loss → set all outputs to OFF"). This ensures actuators revert to a safe condition if the DCS loses connection to the module.
- Double-Wiring for Critical Loads: For safety-critical actuators (e.g., emergency stop valves), use two DO814 channels (one primary, one redundant) and configure DCS logic to trigger actuation only if both channels signal the same command.
- Output Not Activating: Verify the DCS is sending a valid command (via Control Builder M’s "Output Monitor"). If the command is present but the output is inactive, test for a short circuit (measure resistance between the output terminal and ground—<10Ω indicates a short).
- Overcurrent Faults: Frequent overcurrent alerts indicate a faulty load (e.g., a solenoid valve with a damaged coil). Replace the load or reduce the load current (e.g., use a smaller relay) to resolve the issue.
- Module Fault (Red LED): Check the DCS diagnostic log for fault details (e.g., "overvoltage"). Disconnect all channels and reconnect them one by one to identify the faulty channel/cable.
- Periodic Inspections: Inspect terminal blocks quarterly for loose screws or corrosion—tighten screws to 0.8–1.0N·m and clean terminals with isopropyl alcohol if needed.
- Firmware Updates: Keep the module’s firmware up to date via Control Builder M. ABB releases updates to improve compatibility, fix bugs, and enhance safety features—always back up DCS configuration before updating.
- Environmental Protection: In humid environments (e.g., food processing), use a dehumidifier to keep relative humidity <85% (non-condensing). In dusty environments (e.g., mining), install a dust filter on the control cabinet to prevent debris buildup on terminals

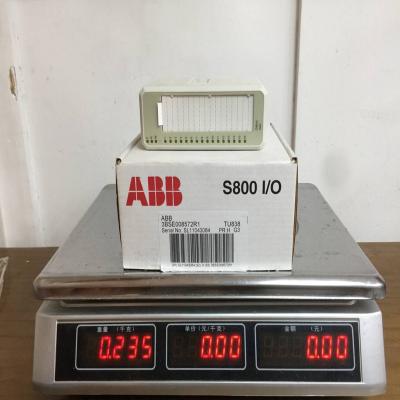

The structure and details of the product：
