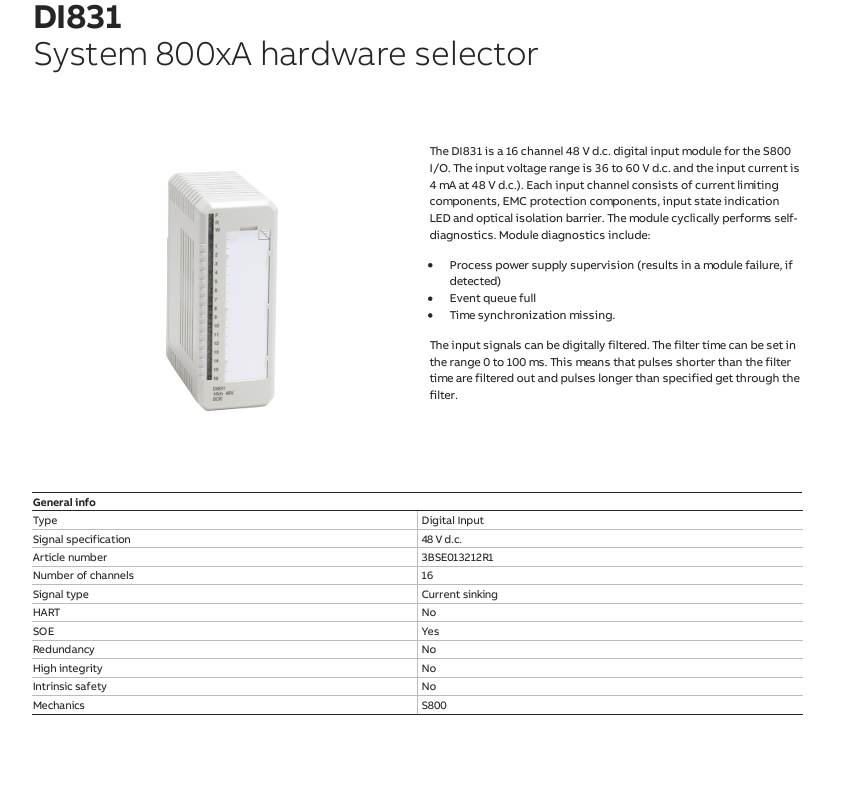

The ABB DI831 is a high-density, industrial-grade digital input module designed for ABB’s AC 800M and AC 800xA distributed control systems (DCS), specializing in reliable acquisition of discrete electrical signals from field devices (e.g., sensors, switches, limit switches). As a key component of ABB’s process automation portfolio, it bridges field-level devices with the DCS controller, converting raw digital signals (e.g., "on/off," "open/closed") into actionable data for monitoring, control, and safety logic execution.
Engineered for harsh industrial environments—including process plants (chemical, oil & gas), power generation facilities, and manufacturing lines—the DI831 combines high channel density, robust noise immunity, and compliance with global industrial standards. It supports both standard and safety-related applications (when integrated with ABB’s safety logic solvers), making it versatile for both general monitoring and critical control tasks.
- 16 Channels in Compact Form: The DI831 packs 16 isolated input channels into a single rack-mounted module, reducing I/O rack space by 50% compared to 8-channel modules. This is critical for large-scale systems (e.g., a refinery with 100+ sensor inputs) where cabinet space is limited.
- Per-Channel Isolation: 500V AC channel-to-channel isolation prevents fault propagation (e.g., a shorted sensor on Channel 3 won’t affect Channel 4) and protects the DCS controller from voltage spikes—common in process plants with long cable runs or shared power supplies.
- Dual Logic Support: Compatible with both sinking (NPN) and sourcing (PNP) field devices, eliminating the need for external signal converters. For example, it can directly connect to NPN proximity sensors (sinking) and PNP limit switches (sourcing) without reconfiguring hardware.
- Configurable Response Time: Users select 1ms fast mode for time-sensitive applications (e.g., emergency stop signal detection) or 10ms slow mode for noisy environments (e.g., near large motors, where EMI causes false signals). Configuration is done via ABB’s Control Builder M software—no hardware jumpers required.
- Extreme Temperature Tolerance: Operates reliably from -40°C (arctic oil fields) to +70°C (desert power plants), outperforming many competitors’ modules (-25°C ~ +60°C). This eliminates the need for cabinet heaters or coolers in extreme climates.
- EMI Immunity: Complies with EN 61000-6-2 standards, resisting ESD (±8kV contact), radiated EMI (30V/m), and electrical fast transients (EFT: ±2kV). This ensures stable signal acquisition in noisy industrial environments where unshielded modules might experience false triggers.
- Safety Integration: When paired with ABB’s AC 800M Safety controller, the DI831 supports safety-related applications up to SIL 2 (per IEC 61508) and PL d (per EN ISO 13849-1). It can monitor emergency stop buttons, safety gates, and interlocks, with signal integrity checks to prevent unsafe operation.
- Comprehensive Diagnostics: Transmits real-time status data to the DCS controller, including "channel open," "overvoltage," and "short circuit" faults. LED indicators on the module provide at-a-glance alerts: green (channel active), red (fault), yellow (module power on). Diagnostic logs include timestamped events (e.g., "2024-05-20 10:15: Channel 7 Short Circuit") for root-cause analysis.
- Backplane Communication: Connects to the AC 800M controller via PROFIBUS DP (12 Mbps maximum rate), ensuring low-latency data transfer (<10ms) for real-time control. The module is automatically detected by the DCS during commissioning, reducing configuration time.
- Centralized Configuration: All parameters (response time, input type, fault thresholds) are managed via ABB’s Control Builder M software, with a graphical interface for mapping channels to DCS variables (e.g., "DI831_Ch5 = Pump_A_Status"). This streamlines setup and allows for easy reconfiguration if field devices change.
- Oil & Gas Refineries: Monitors 16 pressure switch inputs (for pipeline safety) and 16 temperature switch inputs (for heater overtemp protection). Per-channel isolation prevents cross-talk between high-voltage pipeline sensors, while -40°C ~ +70°C tolerance withstands outdoor pump station conditions.
- Power Generation (Coal-Fired Plants): Acquires signals from 16 conveyor limit switches (to detect belt jams) and 16 valve position switches (to verify valve open/closed status). Fast 1ms response time ensures immediate detection of conveyor jams, preventing equipment damage.
- Chemical Processing: Connects to 16 emergency stop buttons (E-Stop) and 16 safety gate interlocks. When integrated with the AC 800M Safety controller, it triggers a controlled shutdown if any E-Stop is pressed, complying with SIL 2 safety requirements.
- Automotive Manufacturing: Monitors 16 photoelectric sensors (for part presence on assembly lines) and 16 robot safety interlocks. Configurable response time (1ms) ensures robots stop instantly if a sensor detects a misplaced part, avoiding collisions.
- Wiring Guidelines
- Cable Selection: Use twisted-pair shielded cables (0.5–1.0mm²) for input wiring to minimize EMI. For 24V DC signals, limit cable length to ≤100m (to avoid voltage drop); for longer runs, use 1.0mm² cables or add a signal booster.
- Grounding: Ground the cable shield at the module’s terminal block end only—double-ended grounding creates ground loops that corrupt signals. Connect the module’s ground terminal to the DCS rack’s earth bar (≤0.5Ω resistance).
- Polarity for Wet Contacts: When using wet contacts (external voltage supply), ensure the positive terminal of the supply connects to the module’s "V+" input, and the negative terminal connects to the field device. Reverse polarity will not damage the module but will prevent signal detection.
- Configuration Tips
- Response Time Setting: Test response time in the target environment—if false signals occur in 1ms mode, switch to 10ms mode. For safety applications (e.g., E-Stop), always use 1ms mode to ensure compliance with safety standards.
- Channel Mapping: Use descriptive variable names in Control Builder M (e.g., "DI831_Ch10 = Reactor_Safety_Gate") to simplify troubleshooting. Group related channels (e.g., all E-Stop inputs) to organize logic code.
- Safety Considerations
- Safety Wiring: For SIL 2/PL d applications, use double-wired inputs (two channels per safety device) to detect wire breaks. Configure the DCS logic to trigger a fault if the two channels do not match (e.g., one active, one inactive).
- Periodic Testing: Test safety-related channels monthly (e.g., press E-Stop buttons to verify the DCS detects the signal) to ensure compliance with safety standards. Log test results for audit purposes.
- Troubleshooting
- Channel Not Detecting Signal: Check if the field device is powered (for wet contacts) or the dry contact is closed. Use a multimeter to measure voltage at the module’s terminal—24V DC indicates a valid signal; 0V indicates a faulty device or open wire.
- False Signals: Verify EMI sources (e.g., nearby motors) and reposition cables away from them. If false signals persist, enable 10ms response time or add a ferrite core to the cable.
- Module Fault (Red LED): Check the DCS diagnostic log for fault details (e.g., "overvoltage"). Disconnect all channels and reconnect them one by one to identify the faulty channel/cable.
- Maintenance
- Periodic Inspections: Inspect terminal blocks quarterly for loose screws or corrosion—tighten screws to 0.8–1.0N·m and clean terminals with isopropyl alcohol if needed.
- Firmware Updates: Keep the module’s firmware up to date via Control Builder M—ABB releases updates to improve compatibility and fix known issues. Always back up DCS configuration before updating firmware.
- Environmental Protection: In humid environments (e.g., food processing), use a dehumidifier to keep relative humidity <85% (non-condensing). In dusty environments (e.g., mining), install a dust filter on the control cabinet

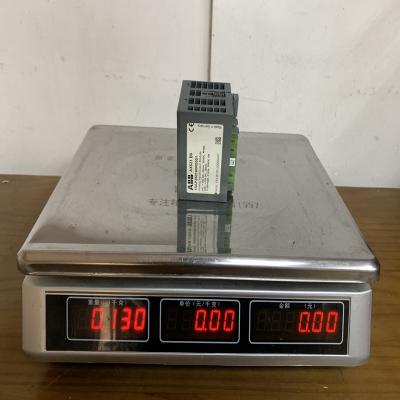

The structure and details of the product：
