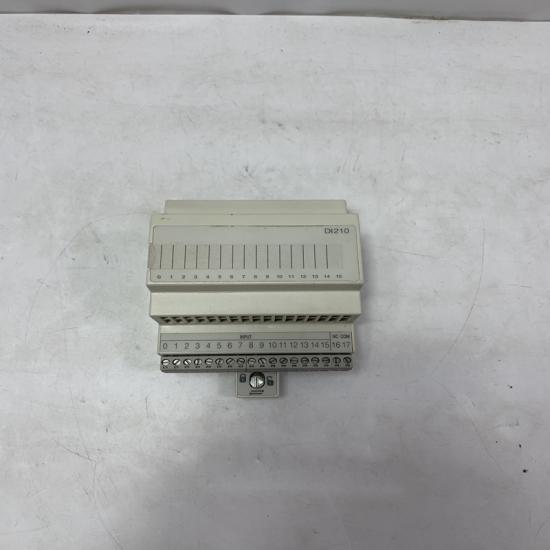

ABB DI210 Digital Input Module

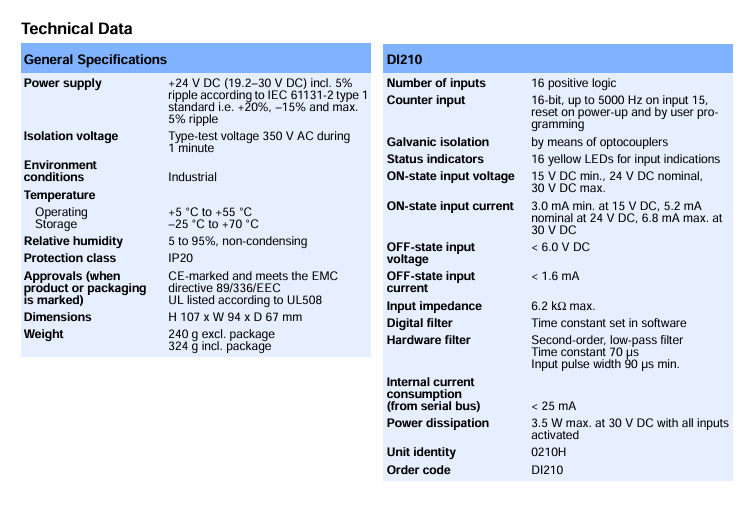

Detailed Product Specifications

The ABB DI210 Digital Input Module is a high-performance industrial automation control component specifically designed for programmable logic controller (PLC) systems. Below are the main technical parameters of this module:

• Number of input channels: 16 isolated digital input channels

• Input signal type: 24V DC digital signal

• Input current: Typical 2mA (compliant with IEC 61131-2 Type 3 standard)

• Isolation voltage: 1500V AC (between channels and channel-to-ground)

• Response time: <1ms

• Operating voltage range: 18-30V DC

• Power consumption: Approx. 3W (at full load)

• Operating temperature range: -25°C to +55°C

• Storage temperature range: -40°C to +70°C

• Relative humidity: 5-95% (non-condensing)

• Protection class: IP20

• Mounting method: DIN rail mounting

• Dimensions: 110mm×75mm×65mm

• Weight: 0.25KG

• Certifications: CE, UL, CSA, IEC 61131-2

Product Advantages and Features

1. High-reliability design:

   • Photoelectric isolation technology effectively prevents external interference and electrical noise from affecting input signals5

   • Built-in multi-stage filter circuit improves input signal stability and anti-interference capability4

   • Wide operating voltage range (18-30V DC) adapts to industrial site voltage fluctuations

2. Excellent performance:

   • Ultra-fast response time (<1ms) meets high-speed control application requirements

   • Low-power design (approx. 3W) reduces system thermal load

   • Complies with IEC 61131-2 Type 3 standard, ensuring compatibility with various sensors5

3. Convenient installation and maintenance:

   • Compact design saves control cabinet space

   • DIN rail mounting for quick installation and replacement

   • Independent LED status indication for each channel facilitates fault diagnosis

4. Flexible configuration:

   • Supports multiple input sensitivity configurations to adapt to different sensor signals4

   • Can be seamlessly integrated with other ABB I/O modules to build complete automation control systems1

5. Industrial-grade durability:

   • Wide temperature operating range (-25°C to +55°C) adapts to harsh industrial environments

   • High protection design, resistant to vibration and shock, ensures long-term stable operation

Application Fields

The ABB DI210 digital input module is widely used in the following industrial automation fields:

1. Industrial production line control:

   • Used to monitor and detect status changes of various equipment and process parameters

   • Implements control and adjustment of automated production processes2

2. Mechanical equipment control:

   • Operation status monitoring of machine tools, conveyors, printing presses, etc.

   • Collection of equipment safety interlock and emergency stop signals2

3. Energy management systems:

   • Monitoring of usage status of resources such as electricity, water, and gas

   • Real-time monitoring and management systems for energy consumption2

4. Safety monitoring systems:

   • Signal acquisition for fire alarm systems and security systems

   • Connection with various safety sensors for real-time monitoring of safety status2

5. Process automation:

   • Process control in industries such as chemicals, petroleum, and pharmaceuticals

   • Connection with field switches, buttons, limit switches, and other devices5

6. Building automation:

   • Elevator control, access control systems, lighting control, etc.

   • Collection and processing of various status signals

Usage Precautions

1. Installation and wiring:

   • Ensure the module is installed in a well-ventilated environment, away from heat sources and strong electromagnetic interference sources

   • Connect strictly according to the wiring diagram, paying attention to polarity (Ex+: red; Ex-: black; Sig+: green; Sig-: white)4

   • Use appropriate wire gauge (recommended 0.5-1.5mm²) to ensure reliable connections

2. Power requirements:

   • Use a stable 24V DC power supply, preferably ABB dedicated power modules

   • Keep power cables as short as possible and use twisted pairs to reduce interference

   • Ensure good connection of power ground wires

3. Signal processing:

   • For long-distance signal transmission, shielded cables with single-ended grounding are recommended

   • Avoid connecting multiple signals to a single signal with signal retention function1

   • In noisy environments, input filter time can be appropriately increased

4. System integration:

   • When used in ABB robot systems, correctly configure I/O bus, unit, and signal mapping1

   • Ensure signal names are unique within the system and no duplicates are allowed1

   • After changing system parameters, a warm restart of the robot is required for the changes to take effect1

5. Maintenance and troubleshooting:

   • Regularly check module status indicators to detect faults in time

   • Clean the module with a dry soft cloth, avoiding chemical cleaners

   • Always disconnect power before replacing modules to prevent short circuits or electric shocks

6. Environmental conditions:

   • Avoid use in environments beyond specified temperature and humidity ranges

   • Prevent condensation formation, adding protective measures when necessary

   • Avoid direct exposure to sunlight, rain, or corrosive gases

7. Special applications:

   • For safety-related applications, relevant safety standards must be followed

   • When used in explosive environments, select matching equipment with corresponding explosion-proof ratings

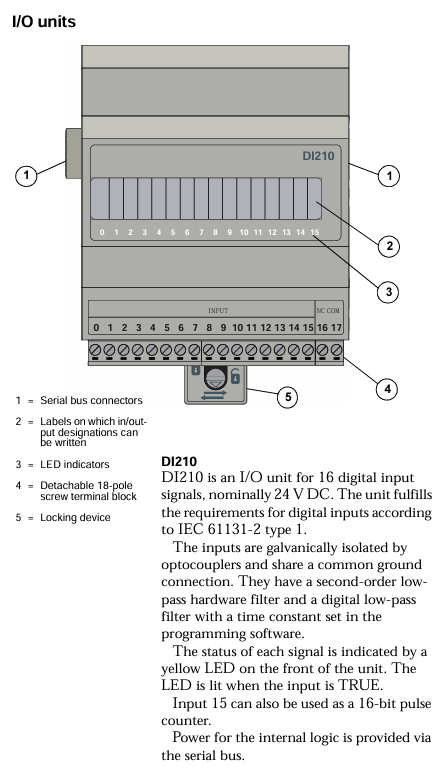

The structure and details of the product：
