ABB AI810 Analog Input Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB AI810 Analog Input Module

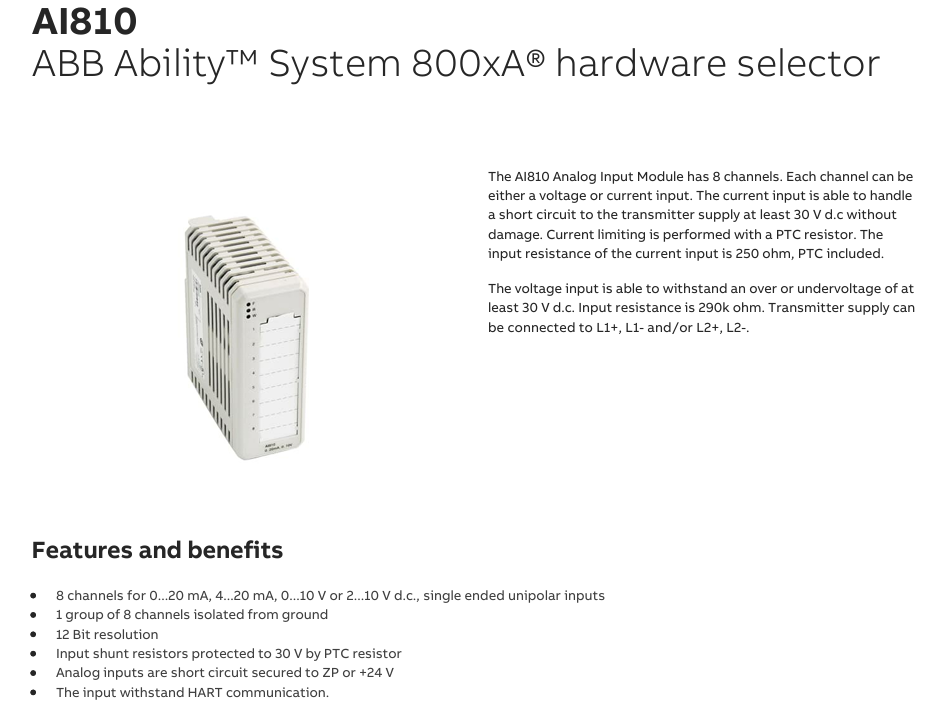

1. Detailed Specifications

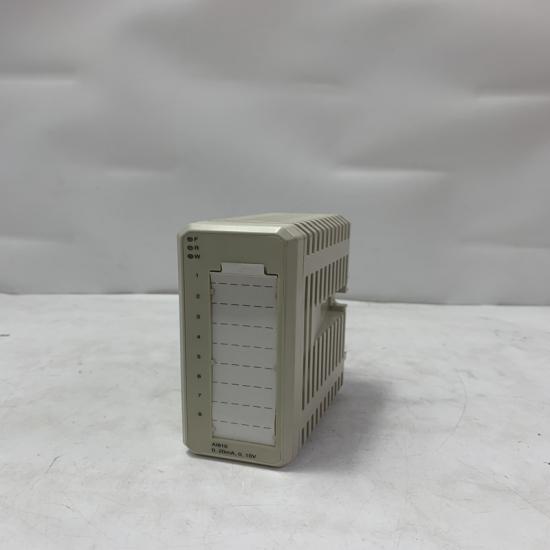

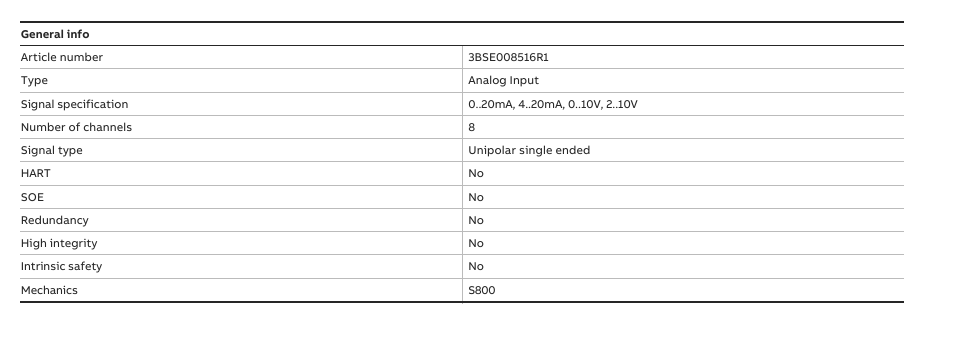

The ABB AI810 (3BSE008516R1) is an 8-channel analog input module designed for industrial automation systems, particularly within ABB’s S800 I/O and 800xA control systems.

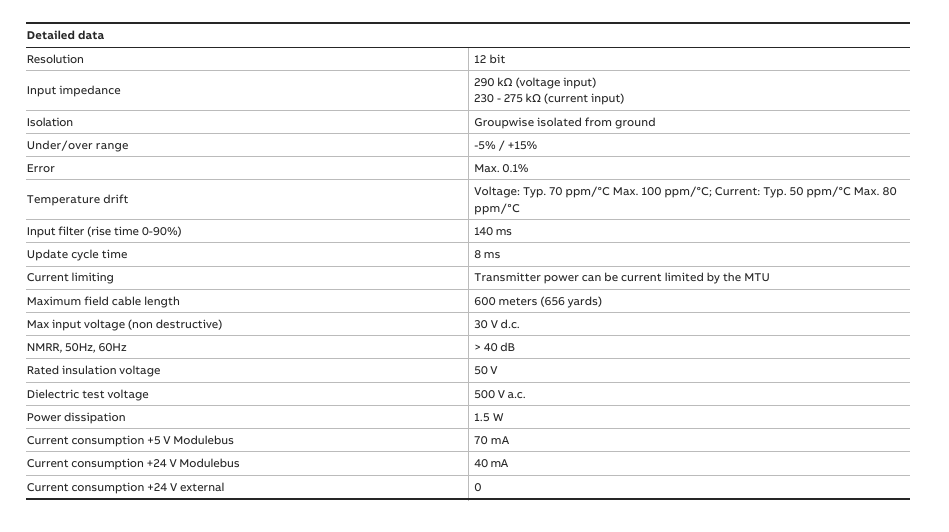

Key Technical Parameters:

• Input Channels: 8 independent channels

• Signal Types Supported:

  • Current: 0–20 mA, 4–20 mA

  • Voltage: 0–10 V, 2–10 V

• Resolution: 12-bit

• Input Impedance:

  • Current Input: 250 Ω (includes PTC resistor for overcurrent protection)

  • Voltage Input: 290 kΩ

• Isolation:

  • 1 group of 8 channels isolated from ground

  • Isolation voltage: 50 V

• Protection Features:

  • Short-circuit protection (up to 30 V DC)

  • PTC resistor for current limiting

  • EMC protection

• Power Supply:

  • Process voltage: 24 V DC (supports L1+/L1- and L2+/L2- connections)

• Dimensions & Weight:

  • Approx. 102 mm (L) × 45 mm (W) × 119 mm (H)

  • Weight: ~0.2–0.3 kg

• Operating Conditions:

  • Temperature: -25°C to +55°C

  • Humidity: 5–95% (non-condensing)

• Certifications: CE, UL, CSA

2. Key Features & Advantages

✅ High Precision & Reliability

• 12-bit resolution ensures accurate signal conversion .

• Signal isolation prevents noise interference .

✅ Wide Input Range Compatibility

• Supports current (4–20 mA) and voltage (0–10 V) signals, making it versatile for different sensors .

✅ Robust Protection

• PTC resistor protects against overcurrent (up to 30 V) .

• Short-circuit and EMC protection for industrial environments .

✅ Hot-Swappable & Easy Installation

• DIN rail mounting for quick setup .

• Status LEDs (Fault, Run, Warning) for easy diagnostics .

✅ HART Communication Support

• Allows integration with smart HART-enabled sensors .

3. Applications

The AI810 is widely used in:

• Process Control Systems (chemical, oil & gas, water treatment)

• Power Plants & Energy Management (monitoring pressure, temperature, flow)

• Manufacturing Automation (PLC/DCS integration for machinery control)

• Building Automation (HVAC, lighting control)

• Industrial Safety Systems (emergency shutdown monitoring)

4. Usage Notes & Precautions

⚠ Installation & Wiring:

• Use shielded cables for long-distance signal transmission to reduce noise .

• Ensure proper polarity (L1+/L1- for power, Sig+/Sig- for signals) .

⚠ Power & Grounding:

• Use a stable 24V DC supply (ABB-recommended power modules preferred) .

• Ensure proper grounding to avoid signal interference.

⚠ Environmental Conditions:

• Avoid condensation, extreme temperatures (>55°C), or corrosive atmospheres .

⚠ Maintenance:

• Hot-swappable but ensure proper shutdown procedures when replacing .

• Regularly check status LEDs (Fault/Run/Warning) for diagnostics .
