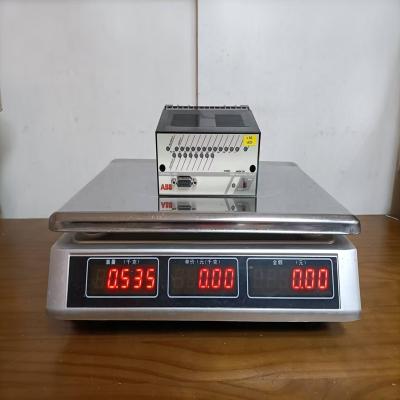

ABB DCF503A0050-0000000 Exciter Control Board

1. Key Parameters

• Product Model: DCF503A0050-0000000
• Order Code Reference: Typically paired with ABB excitation system kits (e.g., 3ABD00025018) for procurement consistency
• Product Series: ABB Synchronous Machine Excitation Control Boards
• Core Function: Regulates field current of synchronous motors/generators; maintains stable terminal voltage; optimizes power factor; provides fault protection for excitation systems; enables communication with upper-level control systems
• Excitation Control Specifications:
  • Control Mode: Voltage regulation (AVR), current regulation (FCR), power factor regulation (PFR) — software-configurable
  • Field Current Range: 0A~50A DC (continuous); 60A DC (peak, 10s duration for dynamic load changes)
  • Voltage Regulation Accuracy: ±0.2% of rated terminal voltage (ensures stable generator output)
  • Response Time: ≤100ms (to 90% of set value for load step changes)
  • Field Weakening Capability: Supports field current reduction to 10% of rated value (for synchronous motor high-speed operation)
  • Reference Inputs: 4~20mA DC (external voltage/current setpoint); 0~10V DC (optional, via hardware jumper)
• Input/Output (I/O) Interfaces:

  I/O Type	Number of Channels	Signal Type/Ranges	Key Function
  Analog Inputs (AI)	6	4~20mA DC (terminal voltage, field current, load current)	Monitors critical excitation/machine parameters
  Analog Outputs (AO)	4	4~20mA DC (field current setpoint, terminal voltage feedback)	Transmits control signals to thyristor converters
  Digital Inputs (DI)	8	24V DC (dry contact; start/stop, mode select, fault reset)	Receives control commands and status signals
  Digital Outputs (DO)	6	24V DC (sourcing; fault alarm, excitation ready, thyristor trigger)	Sends status/alarm signals and trigger commands

• Communication Interfaces:
  • Built-in Protocols: Modbus RTU (RS485 port; baud rate: 9600~115200 bps; parity: None/Even/Odd); ABB proprietary Excitation Bus (for communication with ABB thyristor units)
  • Optional Protocol: Profinet RT / EtherNet/IP (via plug-in communication module, for integration with ABB 800xA DCS)
  • Controller Compatibility: ABB AC500 PLCs, ABB 800xA DCS, third-party SCADA systems (via Modbus)
• Electrical Specifications:
  • Power Supply: 24V DC (nominal); 18~30V DC (wide input range); Typical Current: 1.0A; Max Current: 1.5A
  • Power Consumption: ≤15W (total, at full I/O load and communication)
  • Isolation: 3kVrms (between power supply, I/O channels, and communication ports); 2kVrms (between analog and digital circuits)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); Surge Protection: ±4kV (air discharge), ±2kV (contact discharge); ESD Protection: ±8kV (contact), ±15kV (air)
• Mechanical Specifications:
  • Housing Type: Reinforced flame-retardant plastic (UL94 V-0); DIN rail-mountable (35mm standard rail)
  • Dimensions (W×H×D): 55mm × 160mm × 110mm (compact design for excitation control cabinets)
  • Mounting: DIN rail-mounted (no additional brackets required)
  • Weight: Approximately 420g
  • LED Indicators (front panel):
    • Power (PWR): Green (board powered on); Red (power fault/undervoltage)
    • Control Mode (MODE): Green (AVR), Amber (FCR), Blue (PFR) — indicates active regulation mode
    • Excitation Status (EXC): Green (excitation normal); Blinking Green (field weakening); Red (excitation fault)
    • Communication (COM): Green (communication normal); Blinking Green (data transmission); Red (communication fault)
    • Fault (FLT): Red (critical fault, e.g., overcurrent, overvoltage); Amber (non-critical warning)
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+65℃ (14℉~149℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃; suitable for damp industrial settings)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6; no solder joint failure)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains structural integrity)
• Compliance Standards: IEC 60034-1 (rotating electrical machines), IEC 61800-7 (adjustable speed electrical power drive systems), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CE, RoHS

2. Key Features

• Multi-Mode Excitation Control: Supports three core regulation modes (AVR, FCR, PFR) to adapt to diverse synchronous machine applications—AVR maintains stable generator terminal voltage (critical for power grids), FCR controls field current (for motor torque optimization), and PFR adjusts power factor (to reduce grid reactive power consumption).
• High-Precision Regulation: ±0.2% voltage regulation accuracy and ≤100ms response time ensure synchronous machines operate within tight parameters—critical for power generation (where voltage fluctuations affect grid stability) and high-power motor applications (e.g., steel mill rolling mills, where torque consistency impacts product quality).
• 3kVrms High Isolation: Industrial-grade isolation between power supply, I/O, and communication circuits prevents ground loops and voltage transients (common in power plants and heavy industry) from disrupting sensitive control electronics—ensures reliable excitation control even in electrically noisy environments.
• Comprehensive Fault Protection: Integrates overcurrent (field current >60A), overvoltage (terminal voltage >110% rated), field open-circuit, and undervoltage protection—triggers fast shutdown (<50ms) of excitation systems to prevent damage to expensive synchronous machines (e.g., generator stator winding burnout).
• Field Weakening Support: Enables synchronous motor operation above base speed by reducing field current to 10% of rated value—ideal for applications requiring variable speed (e.g., centrifugal compressors, large pumps) where high-speed operation is needed for increased flow/pressure.
• Seamless ABB Ecosystem Integration: Communicates via ABB Excitation Bus with ABB thyristor converters (e.g., ABB DCS800) and integrates with ABB 800xA DCS via optional Profinet—eliminates compatibility issues (e.g., control signal delay) common with third-party excitation components.
• Intuitive Diagnostics & Status Monitoring: Color-coded LEDs for control mode, excitation status, and faults enable technicians to quickly identify issues (e.g., a field open-circuit fault) without specialized tools—reduces troubleshooting time and unplanned downtime.

3. Application Fields

• Synchronous Generator Excitation Control: Primary application—regulates field current for power generation:
  • Thermal Power Plants: Controls excitation of steam turbine generators; AVR mode maintains stable terminal voltage (±0.2% accuracy) to comply with grid standards, while Modbus communication transmits real-time parameters (field current, terminal voltage) to 800xA DCS for remote monitoring.
  • Hydroelectric Power Plants: Regulates excitation of hydro-generators; fast response time (≤100ms) adapts to rapid changes in water flow (e.g., from dam gate adjustments), preventing voltage spikes that could damage grid equipment.
  • Diesel Generator Sets: Manages excitation for backup diesel generators (e.g., in data centers); FCR mode ensures consistent field current during load changes (e.g., sudden server power demand), maintaining stable AC output for critical loads.
• High-Power Synchronous Motor Control: Enables torque/power factor optimization:
  • Steel & Metals Industry: Controls excitation of synchronous motors driving rolling mill stands; PFR mode optimizes power factor (reducing reactive power draw from the grid), while field weakening supports high-speed rolling for thin metal sheets.
  • Chemical & Petrochemical Plants: Regulates excitation for synchronous motors powering large centrifugal compressors (e.g., ethylene compressors); AVR mode maintains stable motor terminal voltage, ensuring consistent compression pressure and process efficiency.
  • Mining: Controls excitation of synchronous motors driving mine hoists; overcurrent protection withstands dynamic loads during ore lifting, preventing motor winding damage and ensuring safe hoist operation.
• Industrial Infrastructure: Supports critical synchronous machine applications:
  • Water & Wastewater Treatment: Regulates excitation for synchronous motors powering large water pumps; wide temperature range (-10℃~+65℃) adapts to outdoor pump stations, while fault LEDs alert to issues (e.g., field open-circuit) before pump failure.
  • Marine Propulsion: Controls excitation for synchronous motors in ship propulsion systems (e.g., offshore supply vessels); 3kVrms isolation resists saltwater-induced ground loops, ensuring reliable operation in harsh marine environments.

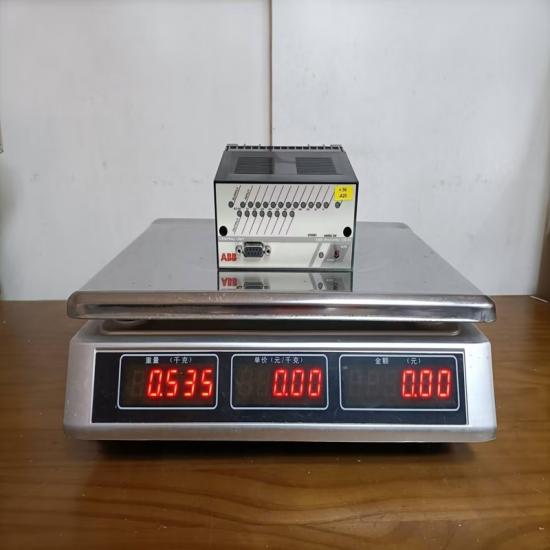

The structure and details of the product：
