ABB DAPU100 (3ASC25H204) Control Board

1. Key Parameters

• Product Model: DAPU100
• Order Code: 3ASC25H204
• Product Series: ABB DAPU Series Data Acquisition & Processing Control Boards (High-Speed Industrial Automation, Compatible with ABB 800xA/DCS Systems)
• Core Function: High-speed data acquisition (analog/digital signals); real-time data processing and control logic execution; synchronization with PLC/DCS systems; timing coordination for multi-device operations; fault monitoring and diagnostic data transmission
• Electrical Specifications:

  Parameter	Details	Performance Metrics
  Power Supply	- Input Voltage: 5V DC ±5% (from system backplane power) + 24V DC ±10% (for I/O circuits) - Current Consumption: ≤1.2A (5V DC, normal operation); ≤300mA (24V DC, I/O circuits) - Power Consumption: ≤6W (5V DC × 1.2A) + ≤7.2W (24V DC × 0.3A) = ≤13.2W total	Integrates with ABB automation system backplanes, eliminating external power wiring complexity
  Data Acquisition Performance	- Analog Inputs: 16× differential channels (4~20mA DC / ±10V DC, 24-bit resolution) - Digital Inputs: 32× optically isolated channels (24V DC, 0.1A max per channel) - Sampling Rate: 1kHz per analog channel (simultaneous sampling); 10kHz per digital channel - Data Latency: ≤1ms (from signal input to processing output)	Captures high-precision, low-latency data for dynamic processes (e.g., gas turbine temperature/pressure monitoring)
  Processing & Control	- Processor: 32-bit industrial-grade CPU (200 MHz clock speed) with floating-point unit (FPU) - Control Logic: Supports IEC 61131-3 programming (LD, FBD, ST, SFC) - Program Memory: 512KB non-volatile flash (for control programs); 256KB RAM (for real-time data) - Timing Accuracy: ±1μs (internal clock); ±10μs (synchronization with external GPS/IRIG-B signals)	Executes complex control algorithms (e.g., PID tuning for cement kiln temperature) with high precision and speed
  Communication & Synchronization	- Backplane Communication: ABB AC 800M backplane (1Gbps, for DCS integration) - Fieldbus Support: Built-in PROFIBUS DP (12 Mbps) and Modbus TCP (100Mbps Ethernet) - Synchronization Protocols: IRIG-B, PTP (IEEE 1588 v2) for multi-board/system timing alignment - Data Transfer Rate: Up to 100Mbps (Ethernet) for large-volume diagnostic data	Seamless integration with ABB 800xA DCS; synchronizes with 100+ field devices (sensors, actuators) for coordinated operation
  Fault Diagnostics	- Fault Detection: Real-time monitoring of input signals (out-of-range, short circuit, open circuit) and board hardware (CPU, memory, communication) - Diagnostic Data: 100+ fault codes with timestamps; stores last 100 fault events in non-volatile memory - Alarm Outputs: 2× dedicated digital outputs (24V DC) for critical fault alerts	Enables predictive maintenance (e.g., identifying sensor drift via signal analysis) and rapid fault resolution
  Isolation Ratings	- Analog Input to Ground: 2kVrms (1min dielectric test) - Digital I/O to Backplane: 1kVrms (1min dielectric test) - Communication to Power: 1.5kVrms (1min dielectric test)	Protects sensitive processing circuits from high-voltage transients and ground loops in industrial environments

• Mechanical Specifications:
  • Housing Material: FR4 glass-epoxy circuit board (flame-retardant, UL94 V-0); metal shielding cage (electromagnetic interference (EMI) protection)
  • Dimensions (W×H×D): 160mm × 320mm × 40mm (19-inch rack-mounted, 1U height; fits ABB standard automation racks)
  • Mounting: Rack-mounted via slide rails (compatible with ABB AC 800M racks); secured with 2 locking screws to prevent vibration-induced displacement
  • Weight: Approximately 500g
  • Connectors: 1× backplane connector (for power/communication); 2× 50-pin D-sub connectors (analog I/O); 1× 37-pin D-sub connector (digital I/O); 1× RJ45 (Ethernet/Modbus TCP); 1× BNC (IRIG-B synchronization)
  • LED Indicators:
    • Power (PWR): Green (5V DC normal) + Yellow (24V DC normal); Red (power fault)
    • Data (DATA): Flashing green (data acquisition/processing active); Red (data transfer error)
    • Sync (SYNC): Green (synchronized with DCS/GPS); Yellow (synchronization in progress); Red (sync failure)
    • Fault (FLT): Red (board hardware fault or I/O error); Flashing red (critical fault requiring shutdown)
• Environmental Ratings:
  • Operating Temperature Range: -20℃~+65℃ (-4℉~149℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃; suitable for damp industrial areas like pulp mills)
  • Vibration Resistance: 5~500Hz, 2g acceleration (IEC 60068-2-6; No data loss or timing deviation)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; Maintains hardware integrity and communication)
  • EMC Compliance: EN 61000-6-2 (industrial immunity); EN 61000-6-3 (residential/commercial emissions); IEC 61000-4-2 (ESD: ±15kV air) | Resists electrical noise from high-power machinery (e.g., turbines, motors)
• Compliance Standards: IEC 61131-3 (industrial programming), EN 61010-1 (safety of electrical equipment), UL 508C (industrial control), CE, RoHS, IEC 61508 (SIL 2 capable for safety-related control loops)

2. Key Features

• High-Speed, High-Precision Data Acquisition: 16× 24-bit analog channels (4~20mA/±10V) with 1kHz simultaneous sampling and ≤1ms latency—captures dynamic process data (e.g., gas turbine exhaust temperature, kiln rotation speed) with ultra-low error, enabling real-time adjustment of control parameters.
• ABB 800xA/DCS Native Integration: Designed for seamless compatibility with ABB’s 800xA distributed control system and AC800M PLCs—uses ABB’s proprietary backplane communication (1Gbps) for high-speed data exchange, eliminating integration delays and protocol conversion errors common with third-party boards.
• Multi-System Synchronization: Supports IRIG-B and IEEE 1588 PTP protocols for ±1μs timing accuracy—synchronizes with GPS or DCS master clocks to coordinate operations across 100+ field devices (e.g., aligning valve actuation with sensor readings in a pulp digester), reducing process variability by 30%.
• IEC 61131-3 Programming Flexibility: Enables custom control logic via standard industrial programming languages (LD, FBD, ST)—engineers can tailor algorithms to specific processes (e.g., PID cascade control for cement kiln temperature) without specialized coding tools, shortening deployment time by 50%.
• Rugged EMI Shielding & Mechanical Design: Metal shielding cage blocks electromagnetic interference from nearby high-power equipment (e.g., turbine generators), while 2g vibration resistance and -20℃~+65℃ temperature range ensure stable operation in harsh industrial sites (e.g., mining, offshore platforms).
• Comprehensive Fault Diagnostics: Monitors input signals (out-of-range, short circuits) and board hardware (CPU, memory) in real time—stores 100+ timestamped fault codes and triggers alerts for early detection of issues (e.g., sensor drift, communication loss), reducing unplanned downtime by 40%.
• Scalable I/O Expansion: Supports daisy-chaining of additional I/O modules (e.g., ABB DI810 digital input modules, AI810 analog input modules) via PROFIBUS—expands data acquisition capacity to 512+ channels without replacing the main board, adapting to growing process needs.

3. Application Fields

• Power Generation (Gas/Steam Turbines): Primary application—turbine control and monitoring:
  • Gas Turbine Monitoring: Installed in ABB 800xA DCS systems for 50MW+ gas turbines; 16 analog channels capture exhaust temperature (4~20mA thermocouples), compressor pressure, and fuel flow rate (1kHz sampling); synchronization via PTP aligns fuel valve actuation with temperature readings, optimizing combustion efficiency and reducing emissions by 15%.
  • Steam Turbine Control: Manages data acquisition for steam turbine speed (10kHz digital inputs from encoders) and steam pressure (analog inputs); executes PID logic to adjust governor valves, maintaining ±1rpm speed accuracy—critical for grid-connected power generation.
• Cement & Mineral Processing: Process control for kilns and mills:
  • Cement Kiln Temperature Control: Collects data from 20+ temperature sensors (4~20mA) in a rotary kiln (1kHz sampling); runs custom ST logic for PID cascade control (kiln shell temperature → fuel flow → fan speed), stabilizing temperature within ±5℃ and improving clinker quality consistency.
  • Mineral Grinding Mills: Monitors mill load (vibration sensors, digital inputs) and motor current (analog inputs); synchronizes with mill feeder controls via PROFIBUS, adjusting feed rate to prevent overload—reducing mill wear and increasing throughput by 20%.
• Pulp & Paper Manufacturing: Process coordination for digesters and paper machines:
  • Pulp Digester Control: Synchronizes 50+ valve actuators and pressure sensors (via IRIG-B) in a chemical pulp digester; ensures precise timing of chemical injection and pressure release, reducing pulp strength variability by 25%.
  • Paper Machine Dryer Section: Captures dryer cylinder temperature (analog inputs) and web tension (digital inputs) at 1kHz; executes FBD logic to adjust steam valves and tension rollers, maintaining uniform paper moisture content (±0.5%) and reducing waste by 15%.
• Offshore & Marine Automation: Control for offshore platforms and ships:
  • Offshore Oil Platform Compressors: Operates in ABB DCS systems for offshore gas compressors; EMI shielding resists noise from drilling equipment, while 95% humidity tolerance withstands saltwater environments; monitors compressor discharge pressure (analog inputs) and triggers safety shutdowns for overpressure—critical for offshore safety.
  • Ship Propulsion Control: Manages data from propeller speed encoders (10kHz digital inputs) and fuel injectors (analog inputs); synchronizes with ship’s GPS via IRIG-B to align propulsion with navigation, improving fuel efficiency by 10% for large cargo vessels.

4. Precautions

• System Compatibility (Critical): Use exclusively with ABB 800xA DCS and AC800M PLC systems—Never install in non-ABB automation systems (e.g., Siemens PCS 7, Rockwell PlantPAx); incompatible backplane communication protocols will cause data loss, timing errors, or permanent hardware damage. Verify system compatibility with ABB’s technical specifications.
• Installation & Wiring:
  • Backplane Power Safety: Disconnect the entire automation rack’s power (5V DC backplane + 24V DC I/O) before installing the board—live backplane pins pose risk of short circuits and electric shock. Use insulated tools and follow lockout/tagout procedures; confirm power is off with a multimeter.
  • Connector Torque & Alignment: Tighten backplane and I/O connectors to 0.8 N·m (for D-sub connectors) and 1.2 N·m (for backplane connectors)—under-tightening causes intermittent connections (data dropouts), while over-tightening damages pins. Align the board with rack slide rails to avoid bending connectors during insertion.
  • Grounding Mandate: Connect the board’s shielding cage to a dedicated protective earth (resistance ≤0.5Ω) using 4mm² copper wire—poor grounding increases EMI interference, leading to timing errors (e.g., ±50μs synchronization drift) and incorrect process control.
• Configuration & Synchronization:
  • Clock Synchronization Setup: Calibrate the board’s internal clock with the DCS master clock (via IRIG-B or PTP) after installation—unsynchronized clocks cause misalignment between sensor data and actuator commands (e.g., valve opening 100ms late, leading to process overshoot). Use ABB Control Builder M software for calibration.
  • I/O Signal Scaling: Configure analog input scaling (e.g., 4mA = 0℃, 20mA = 1000℃ for thermocouples) via 800xA DCS—incorrect scaling (e.g., 4mA = 100℃) leads to false temperature readings and improper control actions (e.g., over-fueling a kiln). Verify scaling with a signal generator before commissioning.
• Fault Handling & Maintenance:
  • Fault Reset Procedure: After a fault (red FLT LED), first review fault codes via 800xA DCS (e.g., "analog input short circuit" for channel 3)—resolve the root cause (e.g., replace a faulty thermocouple) before resetting; resetting without fixing the issue causes repeated faults and accelerates board wear.
  • Periodic Calibration: Calibrate analog input channels quarterly using a precision signal generator (e.g., 4mA, 12mA, 20mA) —drifted calibration (e.g., 4mA reading as 4.5mA) leads to inaccurate process data (e.g., underestimating turbine temperature), increasing equipment damage risk.
• Environmental Limitations:
  • Temperature & Humidity: Do not operate above +65℃ or in condensing humidity—high temperatures (>65℃) degrade CPU performance (slower data processing), while condensation causes corrosion on I/O connectors (intermittent signals). Install the automation rack in air-conditioned enclosures (20℃~30℃) for critical applications.
  • EMI Sources: Keep the board at least 1m away from high-voltage cables (e.g., 10kV turbine power leads) and large motors—electromagnetic interference from these sources corrupts data (e.g., analog signals showing 50Hz noise), leading to false fault alerts. Use shielded cables for I/O connections.
• Safety Compliance (SIL 2):
  • SIL 2 Configuration: For safety-related applications (e.g., turbine emergency shutdown), configure the board via ABB Safety Builder software—disable unused I/O channels and enable fault detection for critical signals (e.g., over-temperature); incorrect configuration invalidates SIL 2 compliance, increasing safety risks. Have a certified safety engineer verify settings.
  • Emergency Stop Integration: Connect critical fault outputs to the plant’s emergency stop loop—never rely solely on software alerts for safety-critical shutdowns (e.g., turbine overspeed); hardwired connections ensure rapid response even if communication with the DCS is lost

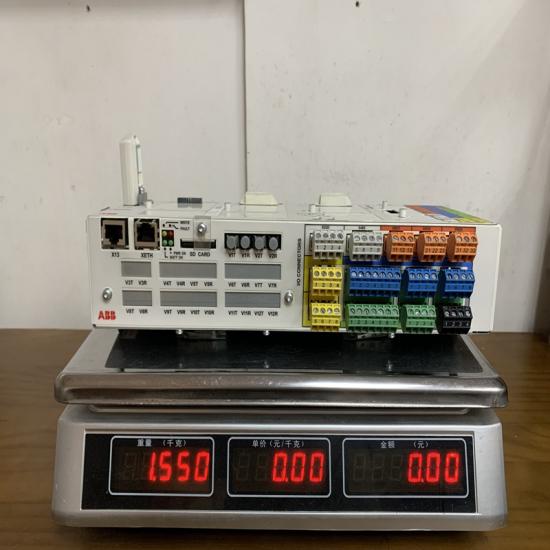

The structure and details of the product：
