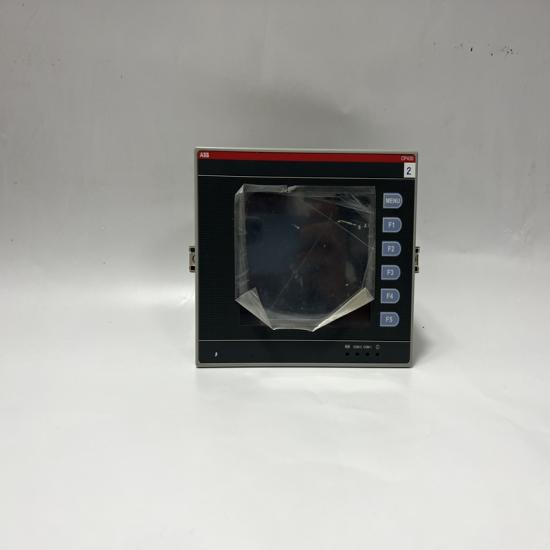

ABB CP430C-ETH Ethernet Communication Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

• • •

    • 1. Product Overview

      The ABB CP430C-ETH is a high-performance industrial Ethernet communication module designed for ABB PLCs, controllers, and automation systems. It supports high-speed data transfer and real-time network communication, compatible with multiple industrial protocols (Modbus TCP/IP, Ethernet/IP, and Profinet), enabling remote monitoring, control, and device integration. The CP430C-ETH provides reliable network connectivity and industrial-grade interference immunity, making it a core component in automation systems.

      ---

      2. Technical Specifications

      • Model: CP430C-ETH

      • Type: Ethernet Communication Module

      • Network Interface: 1 × RJ45 10/100 Mbps Ethernet port

      • Supported Protocols: Modbus TCP/IP, Ethernet/IP, Profinet

      • Communication Speed: 10/100 Mbps adaptive

      • Supply Voltage: 24 V DC

      • Power Consumption: ≤ 5 W

      • Operating Temperature: 0°C ~ +60°C

      • Storage Temperature: -40°C ~ +85°C

      • Protection Class: IP20

      • Mounting: DIN rail or control panel

      • Dimensions (H×W×D): ~100 × 45 × 120 mm

      • LED Indicators: Power, communication, network activity

      ---

      3. Features & Advantages

      1. High-speed Ethernet communication — Supports 10/100 Mbps data transfer for real-time control and monitoring.

      2. Multi-protocol compatibility — Supports Modbus TCP/IP, Ethernet/IP, Profinet for flexible system integration.

      3. High reliability — Industrial-grade design with strong interference immunity for harsh environments.

      4. Easy installation and maintenance — DIN rail or panel mount with front-panel LED indicators for status monitoring.

      5. Flexible expansion — Connect ABB control systems and other devices to enable centralized monitoring and remote operation.

      6. Energy-efficient design — Low power consumption suitable for large-scale automation systems.

      ---

      4. Typical Applications

      • Industrial automation control systems

      • PLC and SCADA system network communication

      • Factory production line device networking and remote monitoring

      • Industrial process control in power, petrochemical, and metallurgical plants

      • Remote data acquisition and equipment monitoring

      ---

      5. Precautions

      • Ensure module supply voltage meets the 24 V DC specification.

      • Install in well-ventilated areas, avoiding high temperature or humid environments.

      • Avoid strong electromagnetic interference environments; use shielding near large motors or transformers.

      • Regularly check network ports and terminal connections for reliable connectivity.

      • Backup existing network and module configuration before firmware or parameter updates.

      • Prevent physical shocks or vibrations to avoid damage to the module and connectors.

    •
    •
  •
