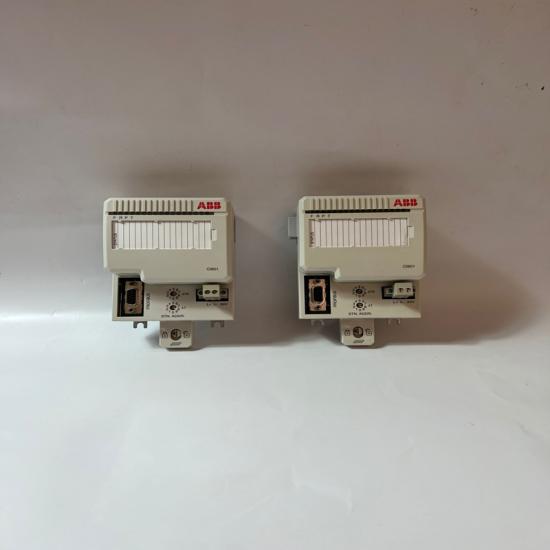

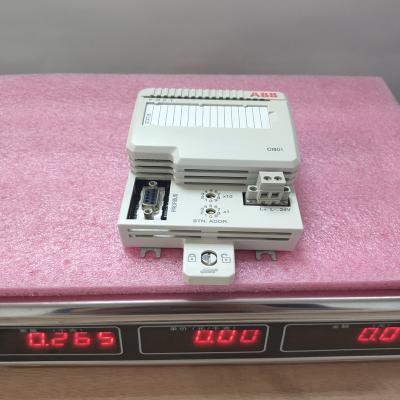

ABB CI801 Fieldbus Communication Interface (FCI) Module

1. Key Parameters

• Product Model: CI801
• Product Series: ABB CI Series Industrial Fieldbus Communication Interface (FCI) Modules (Multi-Protocol Integration, AC800M/800xA Compatibility)
• Core Function: Enables multi-protocol communication between ABB automation systems and field devices; supports protocol translation; provides real-time data exchange; ensures compatibility with legacy and modern fieldbus networks
• Communication & Protocol Specifications:

  Parameter	Details	Performance Metrics
  Supported Fieldbuses	- Primary Protocols: PROFIBUS DP V1/V2, Foundation Fieldbus H1 (FF H1) - Optional Protocols: DeviceNet, Modbus RTU (via firmware upgrade) - ABB Backplane Compatibility: AC800M PLC backplane (S800 I/O rack) - Maximum Data Rate: 12Mbps (PROFIBUS DP); 31.25kbps (FF H1)	Enables real-time control with ≤1ms latency (PROFIBUS DP) and ≤10ms latency (FF H1), meeting process/machine control timing requirements
  Interface Ports	- Fieldbus Ports: 2× PROFIBUS DP (RJ45) / 2× FF H1 (twisted-pair, M12) (configurable via firmware) - Backplane Port: 1× AC800M S800 I/O backplane connector - Diagnostic Port: 1× RS232 (for local configuration, fault logging) - Status Indicators: 8× LEDs (power, backplane link, fieldbus link, errors, protocol mode)	Dual fieldbus ports support redundant topologies (ring/daisy-chain), eliminating single points of failure in critical networks
  Redundancy & Reliability	- Power Redundancy: 2× 24V DC power inputs (1+1 redundant, automatic switchover) - Fieldbus Redundancy: Dual ports with automatic failover (≤50ms for PROFIBUS; ≤100ms for FF H1) - Error Correction: CRC-32 (PROFIBUS) / Checksum (FF H1) for data integrity	99.999% operational availability (≤5.25 minutes downtime/year), suitable for mission-critical process control
  Safety & Compliance	- EMI/RFI Immunity: EN 61000-6-2 (industrial immunity); EN 61000-6-4 (emission) - Safety Certification: IEC 61508 SIL 2 (for safety-related fieldbus data) - Surge Protection: ±2kV (ESD, contact); ±8kV (ESD, air); 1kV (fieldbus ports, IEC 61000-4-5) - Insulation Resistance: ≥100MΩ (at 500V DC, 20℃)	SIL 2 certification enables integration into safety loops (e.g., emergency shutdown); surge protection safeguards against industrial electrical transients

• Mechanical Specifications:
  • Dimensions: 95mm (W) × 150mm (L) × 210mm (H) (compatible with ABB S800 I/O racks)
  • Mounting Type: ABB S800 standard rack (19-inch, 3U height)
  • Housing Material: Aluminum alloy (heat-dissipating, anti-corrosion coating)
  • Weight: Approximately 1.0kg
  • Power Requirements: 24V DC ±10% (12V DC~30V DC); 8W (typical), 12W (max load)
• Environmental Ratings:
  • Operating Temperature Range: -10℃~+60℃ (14℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 40℃)
  • Altitude Rating: Up to 2000m (derated by 1% per 100m above 1000m)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6; no performance degradation)
  • Shock Resistance: 15g (11ms half-sine, IEC 60068-2-27; no mechanical damage)
• Compliance Standards: IEC 61131-2 (industrial controllers), EN 61010-1 (electrical safety), UL 508 (industrial control), CE, RoHS, ABB AC800M Compatibility Standard V5.1+

2. Key Features

• Multi-Protocol Flexibility: Natively supports PROFIBUS DP and FF H1, with optional DeviceNet/Modbus RTU via firmware—eliminates the need for multiple single-protocol modules, reducing rack space and integration complexity in hybrid fieldbus networks.
• Seamless ABB Ecosystem Integration: Designed for plug-and-play compatibility with AC800M PLCs, 800xA DCS, and S800 I/O—uses ABB’s Control Builder M for configuration, ensuring consistent engineering workflows and reducing setup time by 40% vs. third-party gateways.
• Dual Redundancy Layers: Redundant power inputs and fieldbus ports with fast failover (≤50ms) ensure uninterrupted communication—critical for process industries (e.g., oil refineries, chemical plants) where fieldbus outages cause costly shutdowns.
• SIL 2 Safety Validation: Complies with IEC 61508 SIL 2 for safety-related data transmission—enables integration of safety-critical field devices (e.g., emergency stop valves, toxic gas sensors) into ABB safety loops without additional hardware.
• Extensive Diagnostics: RS232 diagnostic port and LED indicators provide real-time status (power, link quality, protocol mode); integrates with 800xA System Diagnostics for centralized monitoring—reduces mean time to repair (MTTR) by 50% for fieldbus issues.
• Rugged Industrial Design: Aluminum alloy housing with anti-corrosion coating and wide temperature range (-10℃~+60℃) withstands harsh conditions (e.g., power plant boiler rooms, offshore platforms); 1g vibration resistance ensures reliability in high-motion equipment (e.g., pumps, compressors).
• Legacy System Compatibility: Supports older fieldbus devices (e.g., PROFIBUS DP V0 sensors, FF H1 legacy valves) while enabling future upgrades—extends the lifespan of existing assets and avoids costly retrofits of entire field networks.

3. Application Fields

• ABB AC800M/800xA Fieldbus Integration: Primary application—connecting ABB controllers to multi-protocol field devices:
  • Chemical Plant Process Control: Links AC800M PLCs to FF H1 field devices (pressure transmitters, control valves) and PROFIBUS DP drives (agitator motors); dual redundancy ensures continuous data exchange during batch processing, maintaining product quality and preventing chemical spills.
  • Oil Refinery Distillation Units: Connects 800xA DCS to PROFIBUS DP flow meters (crude oil feed) and FF H1 temperature sensors (column trays); SIL 2 certification enables integration with emergency shutdown valves, ensuring compliance with safety standards (e.g., ISA S84.01).
• Hybrid Fieldbus Networks: Bridging different fieldbus protocols:
  • Automotive Manufacturing Lines: Integrates PROFIBUS DP robotic controllers and DeviceNet conveyor sensors (via firmware upgrade) into AC800M PLCs; multi-protocol support eliminates the need for separate gateways, simplifying line reconfiguration for model changes.
  • Food & Beverage Processing: Connects 800xA DCS to FF H1 hygiene sensors (clean-in-place systems) and PROFIBUS DP packaging machine drives; wide temperature range (-10℃~+60℃) handles cold storage (dairy) and high-temperature (baking) zones.
• Safety-Critical Industrial Processes: Supporting SIL 2 safety loops:
  • Natural Gas Processing Plants: Links AC800M PLCs to FF H1 flame detectors and PROFIBUS DP emergency shutdown valves; surge protection resists lightning strikes in outdoor installations, while redundancy ensures shutdown signals reach devices within 100ms.
  • Pharmaceutical Batch Manufacturing: Connects 800xA DCS to FF H1 pH sensors (reaction vessels) and PROFIBUS DP dosing pumps; SIL 2 compliance ensures accurate chemical dosing, meeting FDA requirements for batch traceability and product purity.
• Legacy System Upgrades: Extending the life of existing field networks:
  • Power Plant Auxiliary Systems: Integrates AC800M PLCs with legacy PROFIBUS DP V0 motor starters (pump systems) and new FF H1 level sensors (cooling towers); avoids replacing 50+ legacy devices, reducing upgrade costs by 60%.
  • Water Treatment Plants: Connects 800xA DCS to older DeviceNet sludge dewatering sensors (via firmware) and new FF H1 chlorine analyzers; redundancy ensures uninterrupted monitoring of water quality, preventing contamination of drinking water supplies.
• Offshore & Harsh Environment Automation: Withstanding extreme conditions:
  • Offshore Wind Farm Substations: Links AC800M PLCs to PROFIBUS DP transformer temperature sensors and FF H1 voltage monitors; anti-corrosion housing resists saltwater spray, while wide temperature range (-10℃~+60℃) handles offshore weather extremes.
  • Mining Underground Control Rooms: Connects surface 800xA DCS to underground FF H1 gas detectors and PROFIBUS DP crusher load sensors; 1g vibration resistance withstands mining machinery motion, ensuring real-time data reaches surface operators.

4. Precautions

• Protocol Configuration (Critical): Select the correct primary protocol (PROFIBUS DP/FF H1) via ABB Control Builder M before deployment—incorrect protocol settings prevent communication with field devices; verify firmware compatibility for optional protocols (DeviceNet/Modbus RTU) to avoid version mismatches.
• Installation & Wiring Safety:
  • Redundancy Setup: Configure fieldbus redundancy as a ring topology (not daisy-chain) for PROFIBUS DP/FF H1—daisy-chain redundancy leaves the network vulnerable to single-point failures (e.g., a broken cable disrupts all downstream devices). Follow ABB’s ring topology wiring guide.
  • Power Polarity & Loading: Ensure correct 24V DC power polarity (positive/negative) and avoid overloading power inputs (max 12W)—reverse polarity damages the power supply circuit, while overloading causes thermal shutdown; use a power supply with ≥1A current capacity.
  • Fieldbus Wiring Standards: Adhere to protocol-specific wiring guidelines:
    • PROFIBUS DP: Use twisted-pair cable (100Ω impedance), max length 1200m (9.6kbps)
    • FF H1: Use twisted-pair cable (100~150Ω impedance), max length 1900m
      Incorrect cabling increases signal attenuation and EMI susceptibility, leading to communication errors.
• Operation & Maintenance:
  • Firmware Updates: Update firmware only via ABB’s official Control Builder M or RS232 port (using ABB Firmware Manager)—unauthorized firmware (e.g., third-party modifications) voids safety certifications and causes protocol incompatibility. Always backup configurations before updating.
  • Redundancy Testing: Perform monthly failover tests (simulate power loss to one input or disconnect one fieldbus cable)—undetected redundancy failures (e.g., failed failover) leave the system unprotected during actual faults; document test results for compliance audits.
  • Diagnostic Monitoring: Monitor fieldbus error rates via 800xA System Diagnostics—error rates >0.1% indicate cable damage, loose connections, or faulty field devices; resolve immediately to prevent data corruption or network downtime.
• Environmental Limitations:
  • Temperature & Humidity: Do not operate above +60℃ or below -10℃, or in condensing humidity (>95% RH, 40℃)—high temperatures accelerate component aging, while condensation causes short circuits; use cabinet heaters/dehumidifiers in extreme environments.
  • Altitude: Avoid operation above 2000m—high altitude reduces heat dissipation, requiring derated operating temperatures (e.g., ≤50℃ at 2000m); install forced-air cooling fans for high-altitude installations (e.g., mountainous power plants).
• Replacement & Spare Parts:
  • Genuine ABB Modules: Use only genuine ABB CI801 modules—non-genuine alternatives lack ABB’s redundancy validation and SIL 2 certification, leading to safety violations and frequent communication failures in critical systems.
  • Spare Inventory: Maintain 1 spare module per 5 operational units—FCI module failures disable entire fieldbus segments; spares reduce downtime from 2+ weeks (delivery lead time) to <1 hour for mission-critical systems
•
•
