ABB CC-E/STD 1SVR011700R0000 Analog Signal Converter

1. Key Parameters

• Order Code/Part Number: 1SVR011700R0000 (standard identifier for procurement and documentation)
• Conversion Function: Analog signal isolation, amplification, and range conversion
• Input Signal Types:
  • Current: 4-20mA DC, 0-20mA DC
  • Voltage: 0-10V DC, ±10V DC, 0-5V DC, ±5V DC
• Output Signal Types:
  • Current: 4-20mA DC, 0-20mA DC (configurable to match input)
  • Voltage: 0-10V DC, ±10V DC, 0-5V DC, ±5V DC (configurable to match input)
• Conversion Accuracy: ±0.1% of full scale (at 25℃ reference temperature)
• Linearity Error: ≤0.05% of full scale
• Isolation Level: 3kVrms (input to output; input/output to power supply)
• Response Time: ≤10ms (90% step response)
• Power Supply: 24V DC (±10% tolerance); Typical power consumption: ≤2W
• Operating Temperature Range: -10℃~+60℃ (14℉~140℉)
• Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
• Mounting Method: 35mm standard DIN rail mounting
• Protection Class: IP20 (module body); Complies with IEC 61010-1 (safety), IEC 61000-6-2 (EMC immunity)

2. Product Features

• High-Precision Conversion: Ensures accurate signal transmission with ±0.1% full-scale accuracy and minimal linearity error, critical for precision process control applications.
• Galvanic Isolation: 3kVrms isolation eliminates ground loops and reduces interference between input, output, and power supply circuits—enhancing system stability in noisy industrial environments.
• Flexible Signal Adaptation: Supports multiple input/output signal types (current/voltage) and ranges, enabling seamless integration between mismatched devices (e.g., connecting a 4-20mA sensor to a 0-10V controller).
• Compact Design: DIN rail-mounted with a slim profile, optimizing space utilization in control cabinets—ideal for applications with limited installation area.
• Robust EMI Resistance: Integrated filters and shielding resist electromagnetic interference from motors, frequency converters, and other industrial equipment—ensuring reliable operation in harsh electrical environments.
• Easy Installation & Configuration: No on-site programming required; pre-configurable via DIP switches or factory settings to match common signal conversion needs—reducing commissioning time.

3. Application Fields

• Process Industry: Converts and isolates signals between pressure/temperature transmitters (4-20mA) and DCS/PLC systems (0-10V) in chemical plants, oil refineries, and pharmaceutical facilities.
• Manufacturing Automation: Adapts signals from sensors (e.g., flow meters, level sensors) to match the input requirements of controllers or HMIs in automotive, electronics, and packaging production lines.
• Power Generation: Isolates and converts current/voltage signals from power meters, transformers, and generator sensors to ensure accurate data transmission to monitoring systems.
• Water & Wastewater Treatment: Facilitates signal compatibility between field instruments (e.g., pH transmitters, flow sensors) and control systems—supporting reliable process monitoring and regulation.
• Building Automation: Converts signals from HVAC sensors (temperature, pressure) to match BMS (Building Management System) input ranges—optimizing energy management in commercial and industrial buildings.

4. Precautions

• Signal Compatibility: Verify that input/output signal types and ranges are correctly configured to match connected devices; mismatched signals may cause measurement errors or equipment damage.
• Isolation Requirements: Ensure the isolation level (3kVrms) meets system safety standards, especially in high-voltage environments—additional protection may be needed for extreme conditions.
• Power Supply Stability: Use a regulated 24V DC power supply with surge protection to prevent voltage fluctuations from affecting conversion accuracy.
• Wiring Best Practices: Use shielded twisted-pair cables for input/output connections; connect cable shields to protective ground (single-point grounding) to minimize EMI.
• Environmental Limits: Avoid operating outside the specified temperature range (-10℃~+60℃); ensure proper ventilation in control cabinets to prevent overheating.
• Mounting Considerations: Install the converter away from strong magnetic fields (e.g., motors, transformers) and high-temperature heat sources to maintain performance stability

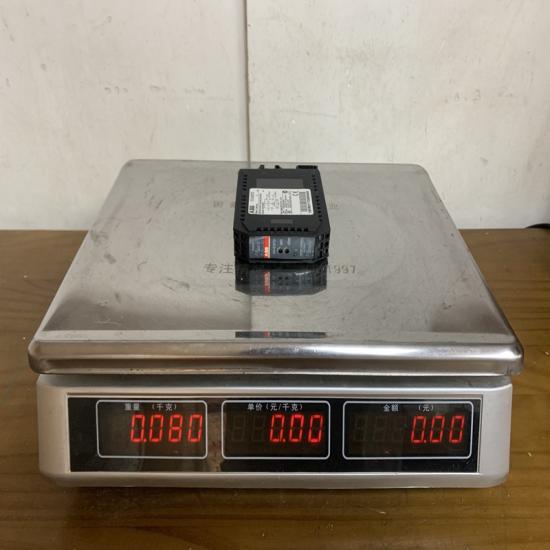

The structure and details of the product：
