ABB BRC300 Controller Module

ABB BRC300 is a high-performance process data controller designed for demanding industrial automation systems, ensuring reliability and efficiency in various industrial applications.

Product Description

BRC300 adopts an advanced 32-bit industrial microprocessor (MCF5407 CPU chip), based on the RISC architecture, with a computing performance of up to 257 (Dhrystone 2.1) MIPS, enabling fast response and efficient data processing. It has a rich memory configuration, including 1Mbytes of ROM, 8Mbytes of SDRAM, 512kbytes of NVRAM, and 2Mbytes of Flash ROM, meeting the needs of large-volume data processing. It supports redundant design. Through redundant modules with the same configuration, it provides high availability and fault tolerance performance, enhancing system reliability.

Detailed Parameters

Processor: 32-bit industrial microprocessor (MCF5407 CPU chip), RISC architecture, computing performance 257 (Dhrystone 2.1) MIPS

Memory: 1Mbytes of ROM, 8Mbytes of SDRAM, 512kbytes of NVRAM, 2Mbytes of Flash ROM

Input/Output: 12 digital inputs, 12 capacitor switching digital outputs, 8 other digital outputs; collect 3 voltages (input nominal value 220V/50Hz, sampling accuracy 0.5 class) and 3 currents (input nominal value 5A/50Hz, sampling accuracy 0.5 class); real-time collect switch on/off position signals, protection action signals, and other device status signals; event resolution 2ms; can sample and analyze parameters such as three-phase active power, three-phase positive/negative reactive power, power factor, and frequency on the low-voltage side of the transformer; record daily statistical data, daily extreme value records, daily event records, etc.

Display Panel: LCD display, button control to display various monitored quantities and parameters

Communication Function: Equipped with 1 RS485 port, supporting multiple communication protocols, automatically adapting to different communication protocol methods, and can transmit operating parameters and statistical analysis results to the power distribution terminal

Power Requirements: +5VDC/2A (10W typical), +5VDC/100mA (0.5W typical)

Operating Temperature Range: -40°C to 70°C

Product Dimensions: 7.0" x 2.0" x 13.0" (17.8 cm x 5.1 cm x 33.0 cm)

Advantages and Features

High-performance Processing: The advanced processor ensures fast data processing and control.

Redundant Design: Improves availability and fault tolerance in critical applications.

Multitasking Parallelism: Can run multiple control languages, such as function code (FC), Ladder, Batch, C, Basic, etc.

Strong Compatibility: Fully compatible with the previous generation BRC 100, supporting a wide range of control strategies.

Application Fields

Suitable for data-intensive and program-intensive process control applications, it can be used in automation control systems of industries such as petroleum, chemical, power, metallurgy, mining, automotive, natural gas, aviation, and shipbuilding.

Precautions

Ensure that the installation environment meets the requirements of the operating temperature range and avoid using it under extreme temperatures.

Power supply strictly in accordance with the power requirements to prevent equipment damage due to abnormal voltage.

When making communication connections, confirm that the communication protocol settings are correct to ensure stable data transmission.

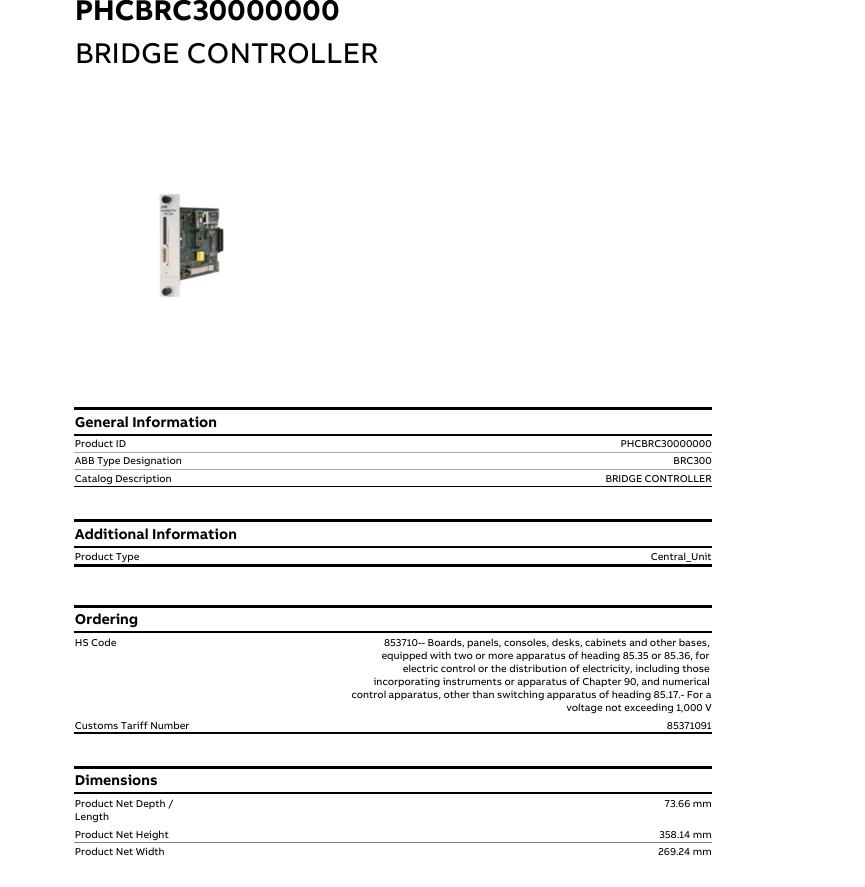

The structure and details of the product：
