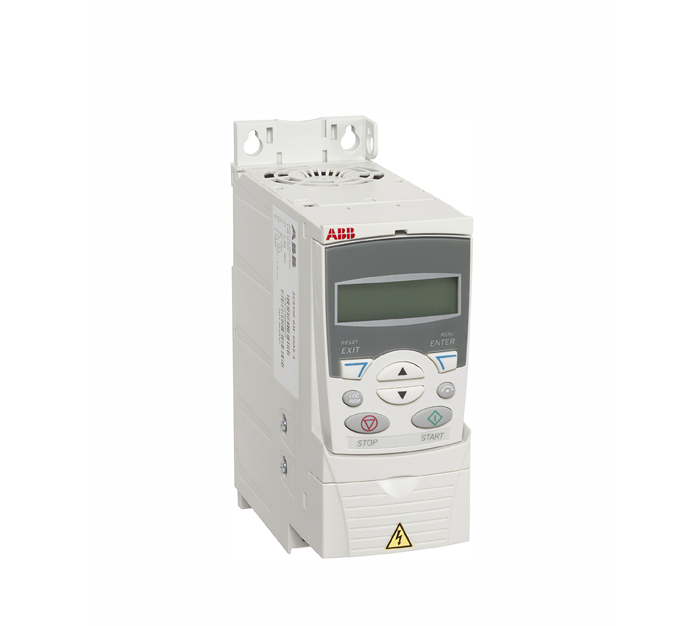

ABB ACS510-01-157A-4 Drive Module Product Information

I. Product Description

II. Detailed Parameters

1. Electrical Parameters

• Input Voltage: 3-phase AC 380-480V ±10%
• Input Frequency: 50/60Hz ±5%
• Output Voltage: 0 to input voltage (3-phase)
• Output Frequency: 0.0-50.0Hz (standard), expandable to 60Hz
• Rated Output Current: 157A (at 40°C ambient temperature)
• Rated Power: 75kW (100HP) at 400V
• Overload Capacity: 110% of rated current for 60 minutes; 150% for 60 seconds
• Power Factor: >0.96 at full load
• Efficiency: >96% at full load

2. Control & Performance Parameters

• Control Modes: V/f control, Energy Optimizing control, and Vector control (sensorless)
• Speed Accuracy: ±2% of nominal speed (V/f control); ±0.5% (sensorless vector)
• Starting Torque: 150% at 1Hz (vector control); 100% at 0.5Hz (with start-up boost)
• Acceleration/Deceleration Time: 0.1-3600 seconds (adjustable)
• Carrier Frequency: 2-16kHz (adjustable, with automatic reduction at high currents)
• I/O Interfaces:
  • 6 digital inputs, 2 analog inputs (0-10V or 4-20mA)
  • 2 relay outputs, 1 analog output (0-20mA)
• Communication: Built-in RS485 (Modbus RTU); optional fieldbus modules (Profibus DP, DeviceNet, etc.)

3. Physical & Environmental Parameters

• Dimensions (HxWxD): 390 x 256 x 215 mm (excluding cable entries and mounting brackets)
• Weight: Approximately 14 kg
• Protection Class: IP21 (standard); IP54/IP66 available with optional enclosures
• Operating Temperature: -10°C to +40°C (without derating); +40°C to +50°C (with derating)
• Storage Temperature: -40°C to +70°C
• Humidity: 5-95% RH (non-condensing)
• Vibration Resistance: 2.5g (10-2000Hz)
• Altitude: Up to 1000m (without derating); 1000-4000m (with derating)

III. Product Advantages and Characteristics

1. Energy Efficiency

• Energy Optimizer: Automatically adjusts flux levels to match load conditions, reducing energy consumption by up to 10-15% in fan and pump applications
• Sleep/Wake Function: Automatically stops the motor when not needed and restarts based on process demand
• PID Controller: Precise process control minimizes energy waste in variable load applications
• Energy Monitoring: Built-in energy metering functionality tracks energy savings and consumption

2. Robust and Reliable Design

• DriveSaver Technology: Protects against voltage dips and short interruptions, preventing unnecessary shutdowns
• Coated PCBs: Standard conformal coating protects against dust and humidity in harsh environments
• Thermal Management: Efficient heat dissipation system allows operation in high-temperature environments
• Overload Protection: Comprehensive motor and drive protection features prevent damage from electrical and mechanical faults

3. User-Friendly Operation

• Intuitive Control Panel: Easy-to-use keypad with copy function for quick parameter cloning
• Quick Menu: Simplified parameter access for common applications
• ABB Drive composer Software: For advanced configuration, monitoring, and troubleshooting
• Multilingual Display: Supports 21 languages for global applications

4. Flexible Integration

• Wide Range of I/O Options: Versatile input/output configuration for seamless integration with control systems
• Fieldbus Compatibility: Supports major industrial communication protocols via optional modules
• Modular Design: Easy to customize with optional accessories and extensions
• Retrofit Capability: Can replace existing drives in older systems with minimal wiring changes

The structure and details of the product：
