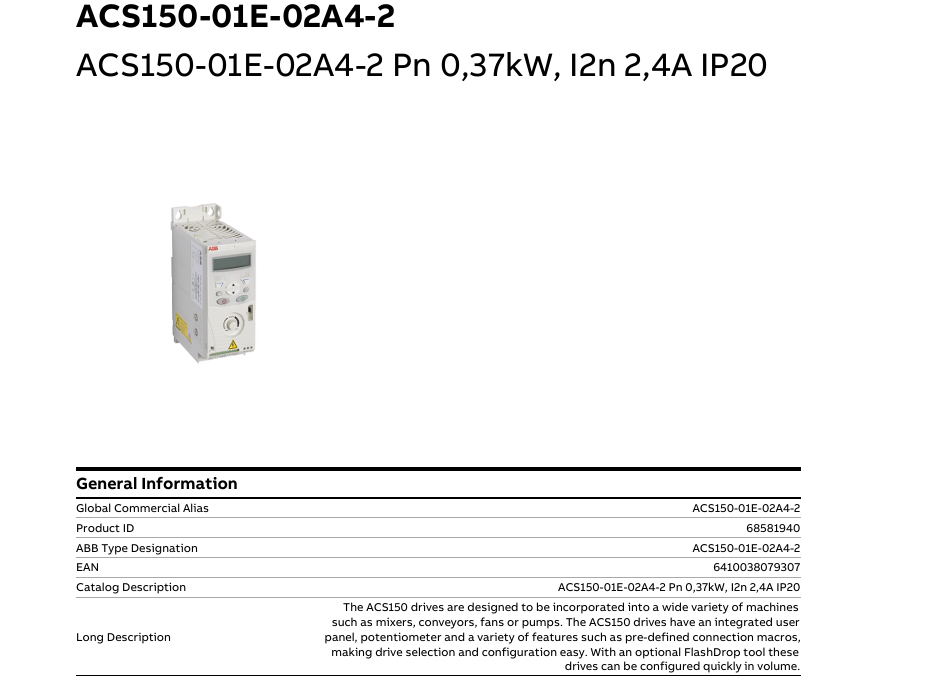

ABB ACS150-01E-02A4-2 High-Performance Low-Voltage AC Drive

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us

ABB ACS150-01E-02A4-2 High-Performance Low-Voltage AC Drive

Introduction

The ABB ACS150-01E-02A4-2 belongs to the ACS150 series of compact low-voltage drives, designed for reliable speed and torque control of small motors. With its high performance, ease of installation, and user-friendly operation, it is widely applied in fans, pumps, conveyors, packaging machinery, and general automation.

This model supports single-phase 200–240 V AC input, with a rated output current of 2.4 A, providing an efficient and economical variable speed drive solution for small power motors.

Technical Specifications

• Model: ACS150-01E-02A4-2

• Series: ACS150

• Type: Low-voltage AC Drive

• Input Supply:

  • Voltage: Single-phase 200 … 240 V AC

  • Frequency: 48 … 63 Hz

• Output:

  • Rated Current: 2.4 A

  • Motor Power: ~0.37 kW (0.5 HP)

  • Frequency Range: 0 … 500 Hz

• Control Method:

  • Scalar V/f control

  • Built-in macros for quick setup

• Built-in Features:

  • Potentiometer

  • Brake chopper

  • Integrated control panel

• Protections: Overcurrent, overvoltage, undervoltage, overtemperature, earth fault

• Environmental Data:

  • Operating Temperature: -10℃ ~ +40℃ (derating up to +50℃)

  • Protection Class: IP20

• Certifications: CE, UL, cUL, RoHS

Features & Benefits

1. Compact Design – Space-saving installation.

2. Plug-and-Play – Integrated keypad and potentiometer.

3. Cost-Effective – Affordable solution for small motors.

4. Quick Commissioning – Pre-defined macros and simple setup.

5. Integrated Braking – Built-in brake chopper for fast stop.

6. Reliable Protection – Comprehensive motor and drive protection.

7. Versatile Use – Suitable for OEMs and general industry.

Applications

• Fans – HVAC, cooling fans

• Pumps – Small booster pumps, circulation pumps

• Conveyors – Production lines, packaging conveyors

• Food & Packaging Machinery

• Textile & Woodworking Machinery

• General Industrial Automation

Installation & Maintenance Notes

1. Power Supply – Ensure input voltage is single-phase 200–240 V.

2. Motor Matching – Motor current must not exceed 2.4 A.

3. Environment – Avoid moisture, dust, and corrosive gases.

4. Cooling – Provide adequate ventilation space for heat dissipation.

5. Wiring – Separate power and control cables to reduce interference.

6. Regular Checks – Inspect terminals, cooling fan, and operating status periodically.

The structure and details of the product：
