ABB 57160001 - UH Digital Input Board Connection Unit
Product Overview
The ABB 57160001 - UH is a connection unit tailored for digital input boards within industrial automation setups. It serves as a crucial link between field sensors and control systems, ensuring reliable and efficient digital signal transmission. This unit is designed to streamline the integration of digital input devices, enhancing the overall functionality of industrial control networks.
Connection Method
- Mounting on I/O Terminal Unit: The 57160001 - UH is plugged onto an appropriate I/O terminal unit. To install, properly position the connection unit and firmly press it until it locks securely in place. The I/O terminal units can be mounted on a standard 35mm DIN rail, which is a common and convenient method for industrial installations. For wall - mounting, two screws along with the additional accessory “TA 526 - wall mounting accessory” can be used.
- Terminal Connections: The connection of the digital input channels is executed using the 40 terminals of the I/O terminal unit. This allows for easy connection of field - side digital sensors. Terminals 1.8, 2.8, 3.8, and 4.8 are electrically interconnected within the I/O terminal unit and are assigned as the process voltage up, which is +24V DC. Similarly, terminals 1.9, 2.9, 3.9, and 4.9 are interconnected and represent the process voltage zp, which is 0V DC. These voltage - related terminals provide the necessary power and reference for the connected digital input devices.
- Signal Input Connections: The remaining terminals are used for connecting the digital input signals from field sensors such as proximity switches, push - buttons, or other digital - output - type sensors. When connecting these sensors, ensure that the wiring is correctly routed and properly insulated to avoid interference.
Technical Specifications
- Number of Channels: This connection unit supports 32 digital input channels, making it suitable for applications where a large number of digital signals need to be monitored. It can handle a significant amount of digital input data simultaneously, enabling comprehensive control and monitoring in industrial processes.
- Maximum Voltage: The maximum voltage that the digital input channels can handle is 60V. This voltage rating allows for compatibility with a wide range of industrial - grade sensors that operate within this voltage range.
- Electrical Isolation: While specific details about electrical isolation are not provided in the given materials, in typical industrial connection units, there is often isolation between the input channels and the control system backplane. This isolation helps protect the control system from electrical transients and noise from the field, ensuring stable and accurate signal transmission.
- Compact Design: It features a compact design, which is beneficial for installation in control cabinets where space may be limited. The compact form factor allows for efficient use of cabinet space while still providing a high - density of digital input connections.
Installation Precautions
- Power - off Before Connection: Before making any connections, disconnection of signal wires, or removing/mounting the connection unit, ensure that all voltage sources, including both the supply voltage and the process voltage, are switched off. Connecting or disconnecting signal wires or terminal blocks while the power is on can lead to electrical arcs, short - circuits, or damage to the connection unit and connected devices.
- Proper Wiring: Use appropriate gauge wires for connections to ensure proper current - carrying capacity. For digital input signals, shielded wires can be used to reduce electromagnetic interference, especially in environments with a lot of electrical noise. When connecting multiple sensors to the input channels, make sure to label the wires clearly for easy identification and maintenance.
- Avoiding Hot - swapping (if not supported): If the unit does not support hot - swapping (insertion or removal of the module while the power is on), do not attempt to do so. Hot - swapping without proper support can cause damage to the connection unit, the I/O terminal unit, and other connected components. Always follow the manufacturer's guidelines regarding hot - swapping capabilities.
- Environmental Considerations: Install the 57160001 - UH in an environment that meets its operating specifications. Avoid areas with high humidity, extreme temperatures, or corrosive gases. Keep it away from heat - generating components such as power supplies or large motors to prevent overheating, which could affect the performance and lifespan of the connection unit.
-

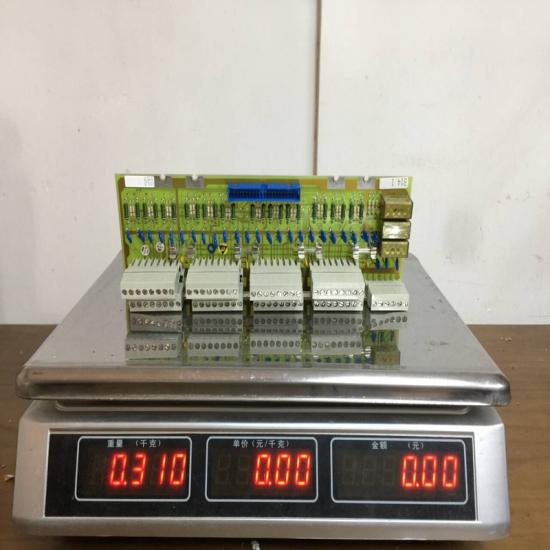

The structure and details of the product：
