 ABB 57120001-CV Analog Input Connection Unit

Core Product Features

• Signal Conditioning & Distribution: Integrates 8 independent channels for conditioning analog signals (4-20mA/0-10V) from field sensors. It filters high-frequency noise (via low-pass filters) and amplifies weak signals, improving signal-to-noise ratio before transmission to the main module.
• Wiring Centralization: Adopts a terminal block design with clear labeling (CH1-CH8), centralizing scattered sensor wiring. This simplifies on-site installation, reduces wiring errors, and facilitates maintenance (e.g., quick identification of faulty sensor channels).
• Surge & Overload Protection: Each channel is equipped with surge protection components (complying with IEC 61000-4-5) to withstand voltage spikes (up to 2kV) from field lines, and overload protection (max 50mA) to prevent damage from short-circuited sensors.

Key Parameters

• Channels: 8 isolated analog input channels (2.5kV isolation between channels and system ground).
• Signal Compatibility: Supports 4-20mA current signals (input impedance 250Ω) and 0-10V voltage signals (input impedance 1MΩ).
• Protection Ratings: Surge immunity ±2kV (contact discharge), ±4kV (air discharge); overload protection (auto-recovery after fault removal).
• Environmental Adaptability: Operating temperature -25°C to +65°C, humidity 5%-95% (non-condensing); protection grade IP20 (for control cabinet installation).
• Physical Specs: 100mm×70mm×20mm, DIN rail-mounted (35mm standard); compatible with ABB analog modules via standard 37-pin D-sub connector.

Core Advantages

• Enhanced Signal Integrity: The built-in filtering and conditioning circuits reduce noise interference from long field cables, ensuring stable signal transmission—critical for high-precision applications (e.g., pharmaceutical process monitoring).
• Simplified System Design: Eliminates the need for external surge protectors and terminal blocks, reducing panel space usage and lowering overall system costs.
• Seamless ABB Compatibility: Designed to work with ABB analog input modules (e.g., IMFEC12) and controllers (e.g., PM864), requiring no additional configuration for plug-and-play integration.

Typical Applications

• Chemical Processing: Connects pressure transmitters (4-20mA) and level sensors in reactor systems, conditioning signals before transmission to the DCS analog module for precise process control.
• Oil & Gas Facilities: Interfaces with flow meters and temperature sensors in pipeline networks, protecting the control system from voltage surges common in remote field locations.
• Power Plant Auxiliaries: Links steam pressure and temperature sensors to the control system, ensuring accurate data for boiler and turbine regulation.

Usage Precautions

• Wiring: Use shielded twisted-pair cables for field connections; ground the cable shield at the unit end to minimize EMI. Ensure correct polarity for current signals to avoid measurement inaccuracies.
• Protection Checks: Periodically inspect surge protection components (visually check for damage) after voltage spikes or lightning strikes; replace faulty units promptly.
• Maintenance: Clean terminal blocks regularly to prevent oxidation; verify channel isolation with a multimeter (≥2.5kV resistance between channels) during annual system checks.

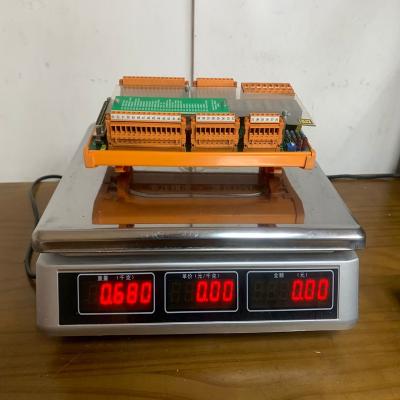

The structure and details of the product：
