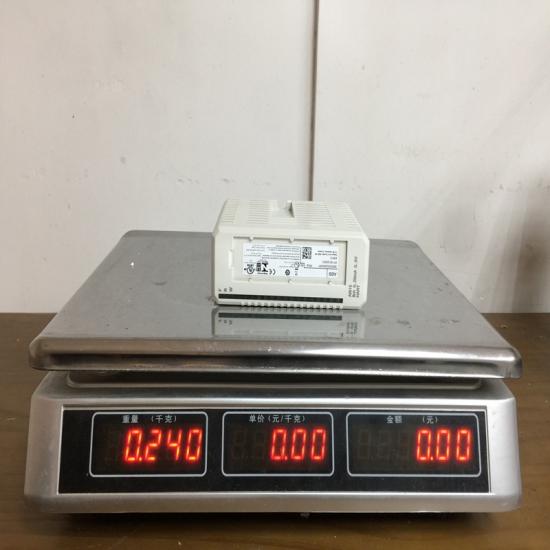

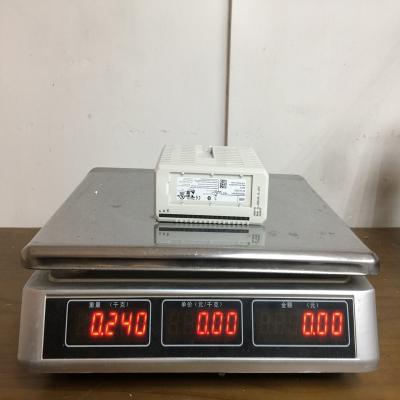

ABB 3BSE069054R1 Digital input module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

1. Product Overview

The ABB 3BSE069054R1 Digital Input Module is an industrial-grade digital input module for ABB Distributed Control Systems (DCS). It is designed to acquire on/off signals from field devices and reliably transmit their status to the control system. The module is widely used for monitoring equipment status, interlocking signals, and process digital inputs in industrial automation systems.

2. Main Technical Parameters (Typical)

Input Channels

• Number of channels: Multi-channel digital inputs (typically 16 channels)

• Input signal type:

  • 24 V DC digital signals

• Logic type: Positive or negative logic depending on configuration

Electrical Characteristics

• Rated input voltage: 24 V DC

• Input voltage range: Industrial standard range

• Channel isolation: Channel or group isolation depending on system design

• Surge and noise immunity suitable for industrial environments

Functions and Diagnostics

• Real-time input status acquisition

• LED status indication per channel

• Input fault or abnormal state detection

• Internal self-diagnostics

System Interface

• Direct compatibility with ABB controllers and I/O buses

• Hot swap capability depending on system configuration

Mechanical and Installation

• Modular plug-in design

• Installation in ABB I/O racks or control cabinets

Operating Environment

• Industrial operating temperature range

• Designed for continuous-duty operation

3. Advantages and Features

• Reliable digital signal acquisition for accurate status monitoring

• High noise immunity in harsh industrial environments

• Clear LED indication for easy commissioning and maintenance

• Modular design enabling fast installation and replacement

• Seamless integration with ABB DCS systems

4. Typical Applications

• Industrial automation and process control systems

• Oil, gas, and chemical plants

• Power generation and energy management systems

• Water and wastewater treatment facilities

• Metallurgy, pulp and paper, and cement industries

• Equipment status monitoring and safety interlocking

5. Application Notes

• Ensure field signal voltage levels match the module specifications

• Apply proper grounding and shielding to prevent false signals

• Observe ESD protection when installing or replacing the module

• Follow system procedures if hot swapping is enabled

• Periodically inspect wiring and signal integrity for long-term reliability
