ABB 3BHE003604R0102 circuit board

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB 3BHE003604R0102 Circuit Board Product Documentation

1. Product Description
The ABB 3BHE003604R0102 (also known as UFC765AE102) is a high-performance industrial automation control processor module manufactured by ABB. Designed for demanding industrial environments, this module incorporates multiple advanced functions and is widely used in power systems, industrial automation, and process control. It integrates various capabilities such as excitation control, data board control, power management, ground fault detection, and voltage regulation into a single unit, making it a key component in ABB's industrial automation solutions aimed at providing reliable and precise control and monitoring.

2. Detailed Parameters

3. Product Advantages and Features
3.1 Multi-functional Integration: The module integrates various functions such as excitation control, data board control, power management, ground fault detection (GFR), voltage regulation, and motion control, meeting the needs of complex industrial applications, reducing the number of system components, and improving integration.
3.2 High Precision and Reliability: Provides precise voltage regulation and motion control, suitable for industries requiring high accuracy and stability (e.g., thermal power generation, hydropower generation, robotics), ensuring stable system operation.
3.3 Strong Compatibility: Supports use with DO relays of process I/O boards to control AC coil contactors with currents up to 2A, and can seamlessly collaborate with other ABB automation components (e.g., IGCT integrated gate-commutated thyristors).
3.4 Hot Swapping and Maintenance Convenience: Supports hot-swap operation, allowing module replacement during system operation, greatly reducing downtime and facilitating maintenance and system upgrades.
3.5 Industrial-Grade Durable Design: Uses industrial-grade components and design, capable of long-term stable operation in harsh environments (e.g., high temperature, high humidity, dusty conditions), with long mechanical and electrical life.
3.6 Advanced Fault Detection: The ground fault relay (GFR) function provides two-level ground fault detection (small and large faults), enhancing the safety and reliability of power distribution systems.

4. Application Fields
The ABB 3BHE003604R0102 circuit board module is widely used in the following industrial fields:
4.1 Power Energy Industry: Used for excitation system control, voltage regulation, and ground fault detection in thermal and hydropower plants, ensuring grid stability and safety.
4.2 Industrial Manufacturing: Used in process automation and motor control in steel manufacturing, papermaking, and petrochemical industries to improve production efficiency and equipment reliability.
4.3 Motion Control and Robotics: Serves as a high-performance motion control mainboard applied in industrial automation and robotic systems for precise motion trajectory control and power management.
4.4 Infrastructure and Heavy Machinery: Used in control systems for heavy machinery equipment (e.g., mining machinery, conveyor systems) to achieve high-precision operation and fault protection.
4.5 Renewable Energy Systems: Used in wind and solar power plants for power conversion and control system management to optimize energy output.

5. Precautions
5.1 System Compatibility: When integrating into an existing system, verify the module's compatibility with relevant ABB automation products (e.g., process I/O boards, relays, IGCT devices) and ensure electrical parameter matching2.
5.2 Installation and Wiring:
* Follow ABB's installation guidelines for correct connection of power lines (24V DC) and control signal lines; pay attention to polarity to prevent reverse connection.
* For the ground fault detection function, ensure sensors are wired correctly and set appropriate fault thresholds (small and large faults).
5.3 Environmental Conditions: Ensure the operating environment temperature and humidity are within the module's allowed range (although designed for industrial environments, avoid extreme conditions); keep the area clean to prevent dust from affecting heat dissipation and performance.
5.4 Maintenance and Diagnostics:
* When performing maintenance using the hot-swap feature, ensure the system supports this operation and follow safety procedures.
* Regularly check the module status and utilize system diagnostic tools to monitor performance and fault records.
5.5 Safe Operation:
* Disconnect power before operation and verify no voltage; for high-voltage applications, ensure the ground fault detection function operates correctly to prevent electric shock risks.
* When handling ground faults, follow electrical safety standards to ensure personnel and equipment safety.

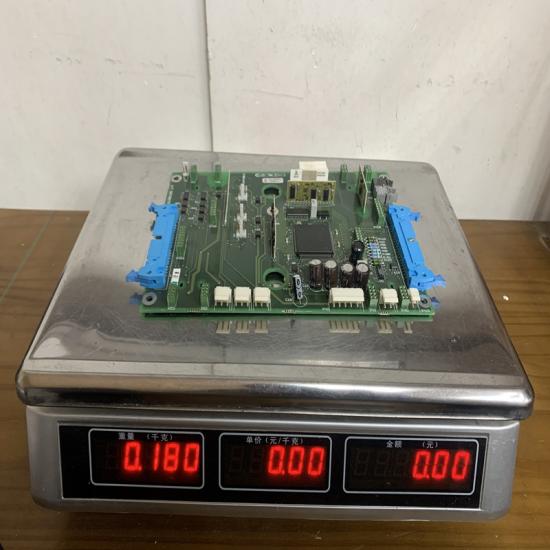

The structure and details of the product：
