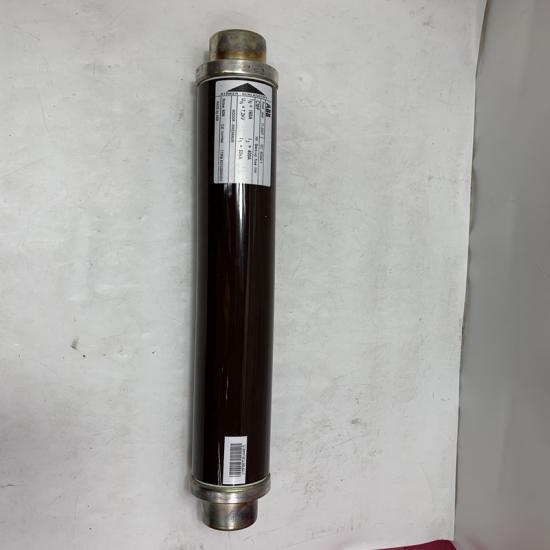

ABB 1YMB531029M0003 Medium Voltage Fuse

1. Product Description

The ABB 1YMB531029M0003 is a high-voltage fuse from ABB’s CMF series, designed for medium-voltage (MV) protection in industrial and power distribution systems. It is a high rupturing capacity (HRC) fuse compliant with IEC 60282-1 and DIN 43625 standards, offering reliable short-circuit and overload protection for transformers, motors, and other electrical equipment .

Key features include:

• High breaking capacity for reliable fault interruption

• Low power loss for energy-efficient operation

• Compact design suitable for switchgear applications

• High current-limiting capability to protect downstream equipment

2. Technical Specifications

3. Key Features & Advantages

✅ High Breaking Capacity

• Ensures reliable interruption of high fault currents .

✅ Low Power Loss

• Reduces energy waste and heat generation in normal operation .

✅ Current-Limiting Design

• Minimizes thermal and mechanical stress on protected equipment .

✅ Compact & Robust Construction

• Suitable for confined switchgear spaces and harsh environments .

✅ Wide Application Range

• Protects transformers, motors, capacitors, and cables .

4. Typical Applications

1. Transformer Protection

   • Used in distribution transformers to prevent damage from short circuits.

2. Motor Circuit Protection

   • Safeguards medium-voltage motors from overloads and faults.

3. Capacitor Bank Protection

   • Prevents damage due to inrush currents and faults in capacitor banks.

4. Switchgear & Feeder Protection

   • Installed in MV switchgear panels for circuit protection.

5. Installation & Safety Notes

⚠ Installation Guidelines

• Ensure proper clearance and creepage distances per IEC standards.

• Use torque wrenches for terminal connections to avoid over-tightening.

⚠ Maintenance & Replacement

• Inspect regularly for signs of overheating or mechanical damage.

• Replace only with identical-rated fuses to maintain protection levels.

⚠ Safety Precautions

• De-energize the circuit before fuse replacement.

• Follow arc-flash safety protocols when working in live panels.

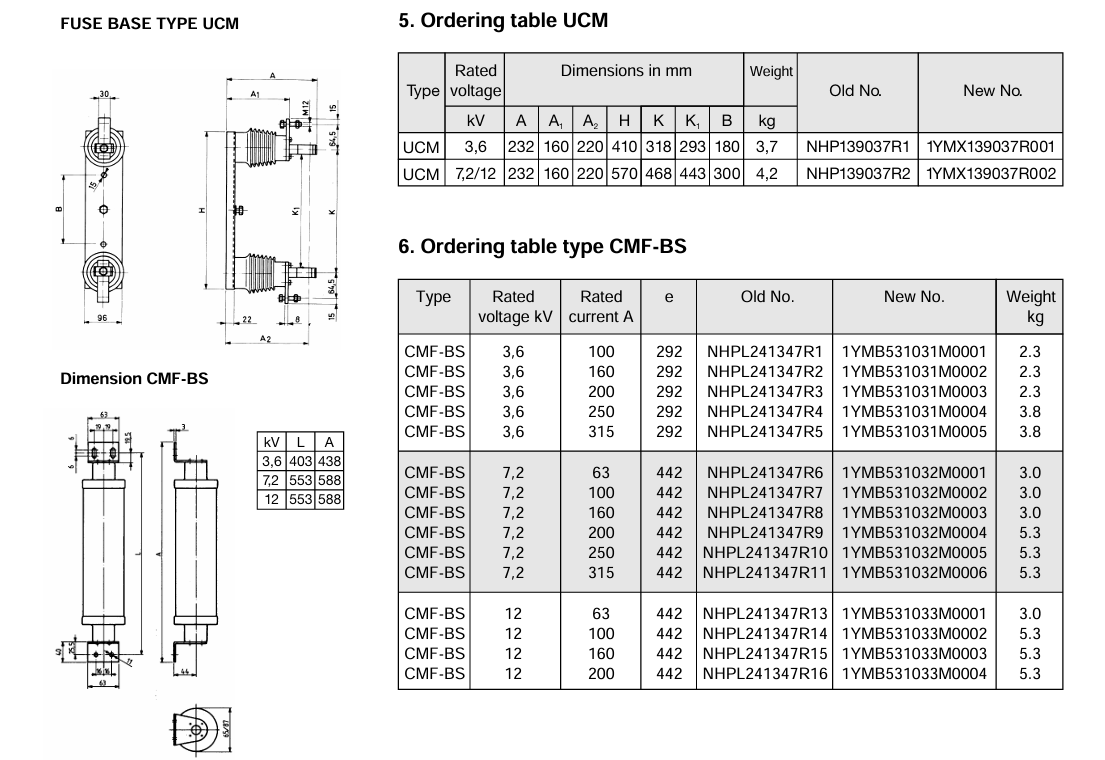

The structure and details of the product：
